Knock Sensor: Installation

INSTALL KNOCK SENSOR
1. Install the 4 knock sensors with the 4 bolts so that the sensors are angled as shown in the illustration.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

  NOTE: The acceptable installation angle of the knock sensors is between 10° upwards and downwards from the horizontal position.
2. Connect the 4 knock sensor connectors.

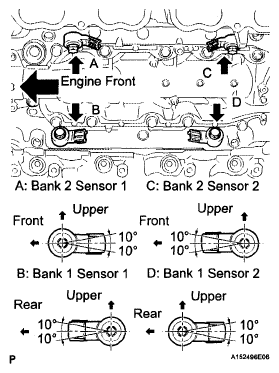

  Fig 1: Locating Knock Sensors With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEPARATOR CASE
1. Install the case separator with the 4 bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  Fig 2: Locating Bolts And Case Separator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the fuel pressure sensor connector.
INSTALL NO. 4 FUEL PIPE SUB-ASSEMBLY (See INSTALLATION )
INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY LH (See INSTALLATION )
INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY (See INSTALLATION )
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY (See INSTALLATION )
INSTALL INTAKE MANIFOLD
1. Install the intake manifold (See INSTALLATION )

  Fig 3: Identifying Fuel Pressure Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
