Throttle Body: Components

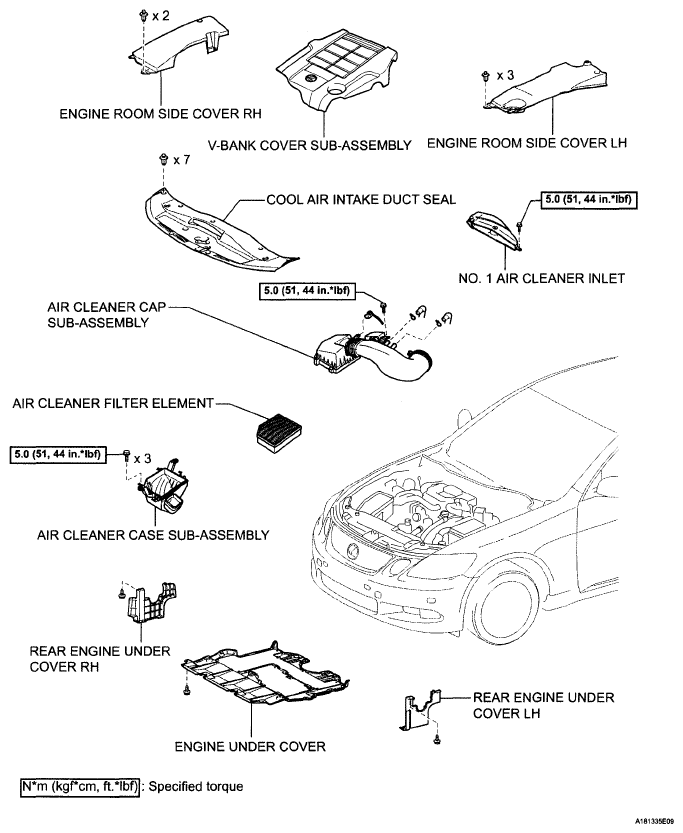

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (1 Of 6)
G05804067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

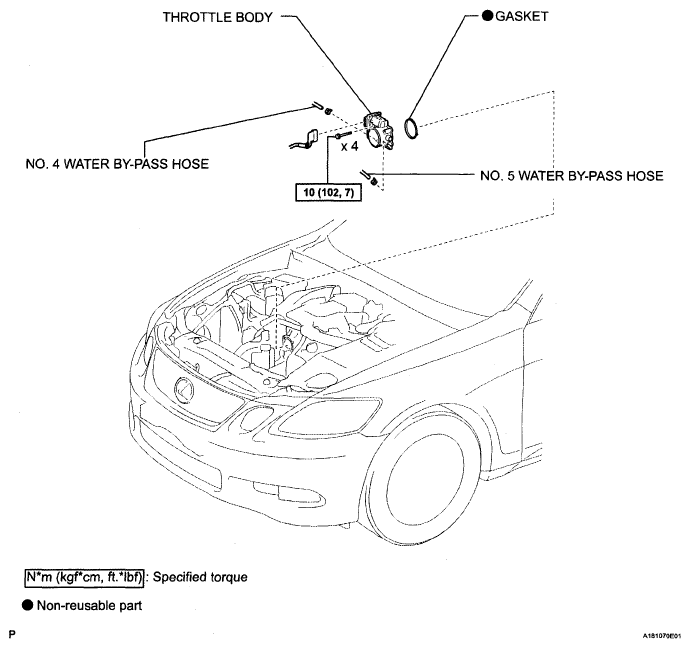

Fig 2: Throttle Body Replacement Components With Torque Specifications (2 Of 2)
G05804068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
