Throttle Body: Installation

  1. INSTALL THROTTLE BODY
    1. Install a new gasket to the intake manifold.
      Fig 1: Identifying Gasket And Intake Manifold
      G05804072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the No. 4 water by-pass hose and No. 5 water by-pass hose to the throttle body.
      NOTE: Position the claws of the clamps as shown in the illustration.

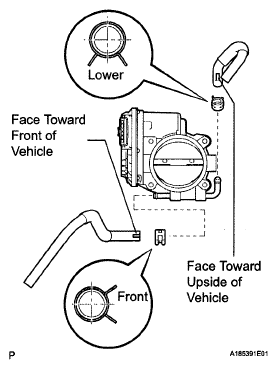

      Fig 2: Identifying Water By-Pass Hose
      G05804073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the throttle body with the 4 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    4. Connect the throttle motor connector.
  2. INSTALL AIR CLEANER CASE SUB-ASSEMBLY  (See INSTALLATION )
  3. INSTALL AIR CLEANER CAP SUB-ASSEMBLY  (See INSTALLATION )
  4. INSTALL NO. 1 AIR CLEANER INLET  (See ON-VEHICLE INSPECTION )
    Fig 3: Locating Bolts And Throttle Body
    G05804069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL V-BANK COVER SUB-ASSEMBLY  (See INSTALLATION )
  6. INSTALL ENGINE ROOM SIDE COVER RH  (See INSTALLATION )
  7. INSTALL ENGINE ROOM SIDE COVER LH  (See INSTALLATION )
  8. INSTALL COOL AIR INTAKE DUCT SEAL  (See INSTALLATION )
  9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  10. ADD ENGINE COOLANT  (See REPLACEMENT )
  11. INSPECT FOR ENGINE COOLANT LEAK  (See ON-VEHICLE INSPECTION )
  12. INSTALL ENGINE UNDER COVER REAR RH
  13. INSTALL ENGINE UNDER COVER REAR LH
  14. INSTALL ENGINE UNDER COVER
