Vehicle Lift And Support Locations

NOTICE ABOUT VEHICLE CONDITION WHEN JACKING UP VEHICLE
1. The vehicle must be unloaded before jacking up / lifting up the vehicle. Never jack up / lift up a heavily loaded vehicle.
2. When removing heavy parts such as the engine and transmission, the center of gravity of the vehicle may shift. To stabilize the vehicle, place a balance weight in a location where it will not roll or shift, or use a mission jack to hold the jacking support.
NOTICE FOR USING 4 POST LIFT
1. Follow the safety procedures outlined in the lift instruction article.
2. Use precautionary measures to prevent the free wheel beam from damaging tires or wheels.
3. Use wheel chocks to secure the vehicle.

NOTICE FOR USING JACK AND SAFETY STAND

Work on a level surface. Use wheel chocks at all times.
Use safety stands with rubber attachments as shown in the illustration.
Set the jack and rigid racks to the specified locations of the vehicle accurately.
When jacking up the vehicle, first release the parking brake and move the shift lever to N.
When jacking up the entire vehicle:
1. When jacking up the front wheels first, make sure wheel chocks are behind the rear wheels.
2. When jacking up the rear wheels first, make sure wheel chocks are in front of the front wheels.

  Fig 1: Identifying Safety Stands With Rubber Attachments
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
When jacking up only the front or rear wheels of the vehicle:
1. Before jacking up the front wheels, place wheel chocks on both sides of the rear wheels.
2. Before jacking up the rear wheels, place wheel chocks on both sides of the front wheels.

When lowering a vehicle that only has its front or rear wheels jacked up:

Before lowering the front wheels, make sure wheel chocks are in front of the rear wheels.

Before lowering the rear wheels, make sure wheel chocks are behind the front wheels.

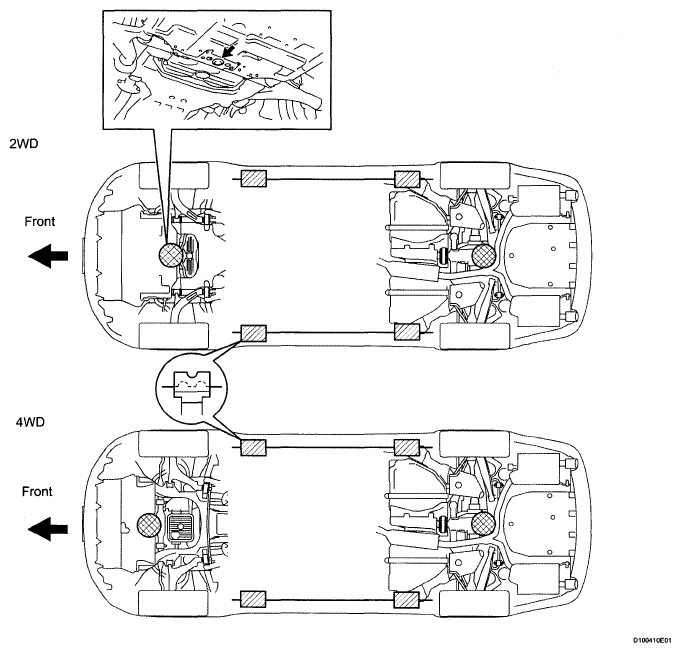

Fig 2: Identifying Vehicle Jacking Point

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002

JACK POSITION

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	JACK POSITION	CAUTION: When jacking up the vehicle, make sure the vehicle is not carrying any extra weight.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	SUPPORT POSITION Safety stand Swing arm type lift	-

It is extremely dangerous to perform any work on a vehicle raised on a jack alone, even for work that can be finished quickly. Rigid racks must be used to support the vehicle.

NOTICE FOR USING PLATE TYPE LIFT

Refer to the illustration below to determine how to properly set the vehicle.

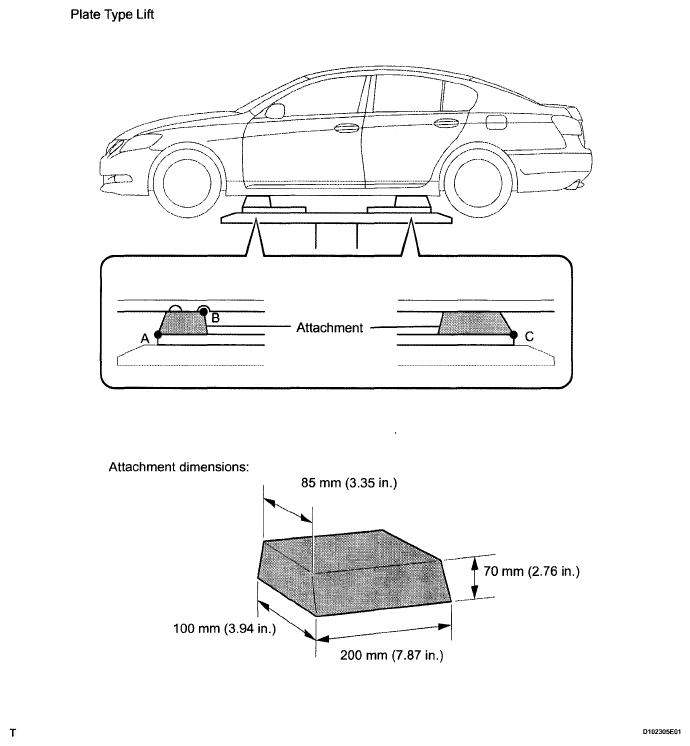

Fig 3: Identifying Lifting Rubber Blocks Dimension

HINT:

LEFT AND RIGHT SET POSITION

Left and right set position

Place the vehicle over the center of the lift.

Front and rear set position

When using attachments: 1) place the vehicle front attachments with the 70 x 200 mm (2.76 x 7.87 in.) side facing the front / rear of the vehicle; and 2) place the vehicle rear attachments with the 70 x 100 mm (2.76 x 3.94 in.) side facing the front / rear of the vehicle.
Align the cushion gum ends of the plate with the attachment lower ends (A, C).
Align the attachment upper end (B) with the rocker flange rear side notch.

Use the lift to raise the vehicle up off the ground, and shake it to make sure that it is stable.
