Automatic Transmission Assembly: Components

Fig 1: Automatic Transmission Assembly Replacement Components With Torque Specifications (1 Of 7)
G05806475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Automatic Transmission Assembly Replacement Components With Torque Specifications (2 Of 7)
G05806476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Automatic Transmission Assembly Replacement Components With Torque Specifications (3 Of 7)
G05806477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Automatic Transmission Assembly Replacement Components With Torque Specifications (4 Of 7)
G05808419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Automatic Transmission Assembly Replacement Components With Torque Specifications (5 Of 7)
G05806479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Automatic Transmission Assembly Replacement Components With Torque Specifications (6 Of 7)
G05806480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

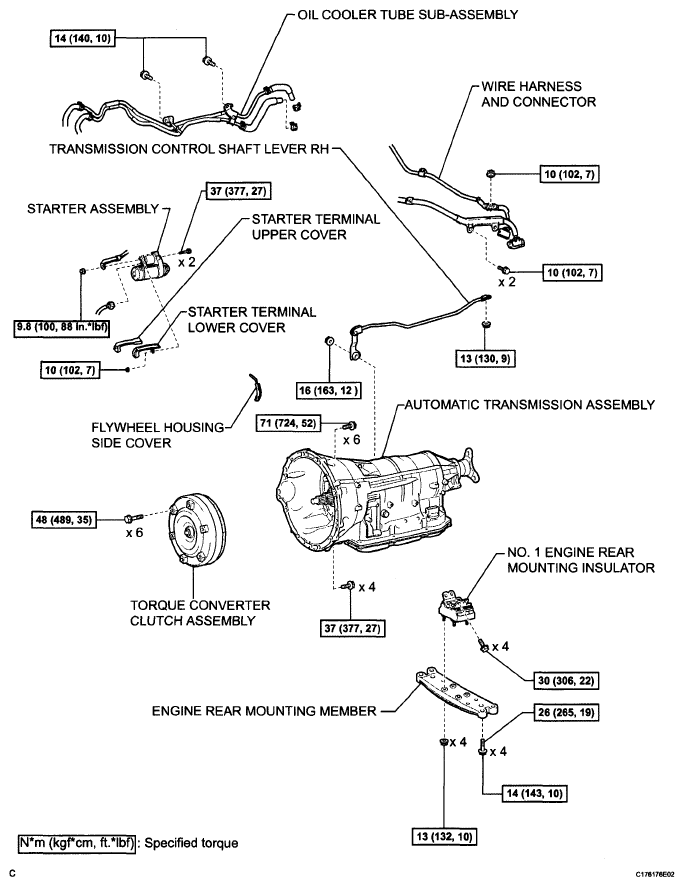

Fig 7: Automatic Transmission Assembly Replacement Components With Torque Specifications (7 Of 7)
G05806481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
