Floor Shift Assembly: Reassembly

INSTALL TRANSMISSION CONTROL SWITCH
1. Install the transmission control switch to the shift lever guide housing.
  NOTE: Securely engage the claws.

  Fig 1: Identifying Transmission Control Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK CONTROL ECU SUB-ASSEMBLY
1. Apply MP grease to the hatched area of the shift lever guide housing as shown in the illustration.

  Fig 2: Identifying MP Grease Applying Area
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the shift lock control ECU sub-assembly with the 2 screws.

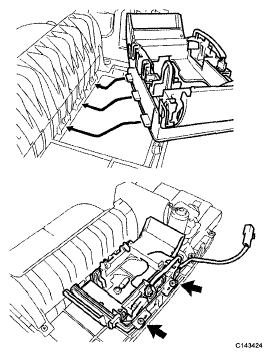

  Fig 3: Locating Shift Lock Control ECU Sub-Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the shift lever guide housing with the shift lever lock pin and a new shift lever nut.
  NOTE:
  - Install the shift lever nut and lock pin after first engaging the 2 claws.
  - Securely engage the claws.

    Fig 4: Identifying Shift Lever Nut And Lock Pin
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the transmission control switch connector to the floor shift assembly.

  Fig 5: Locating Shift Lock Control ECU Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install the No. 2 position indicator slide cover to the position indicator slide cover.
2. Install the position indicator slide cover to the lower position indicator housing.

  Fig 6: Identifying Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR LENS
1. Install the position indicator lens to the lower position indicator housing.
  NOTE: Securely engage the claws.
INSTALL SHIFT LEVER CAP
1. Install the shift lever cap to the position indicator housing.

  Fig 7: Identifying Position Indicator Lens
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR HOUSING
1. Install the position indicator housing to the lower position indicator housing.
  NOTE: Securely engage the claws.

  Fig 8: Locating Position Indicator Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Securely connect the 2 terminals of the indicator light wire harness to the transmission control switch connector.

  Fig 9: Removing Locking Lug Of Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the position indicator light bulb to the indicator light wire sub-assembly.
3. Install the position indicator bulb cap to the position indicator light bulb.

  Fig 10: Identifying Position Indicator Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the indicator light wire to the position indicator.
  NOTE: Make sure that the indicator light wire is securely installed to the position indicator.

  Fig 11: Installing Indicator Light Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT POSITION INDICATOR
1. Install the shift position indicator to the upper console panel assembly with the 2 screws.
  HINT:

  Engage the 3 claws to install the indicator.

  Fig 12: Locating Shift Position Indicator Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the indicator light wire harness connector and the wire harness to the upper console panel assembly.

  Fig 13: Locating Indicator Light Wire Harness Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
