Automatic Light Control: Notes

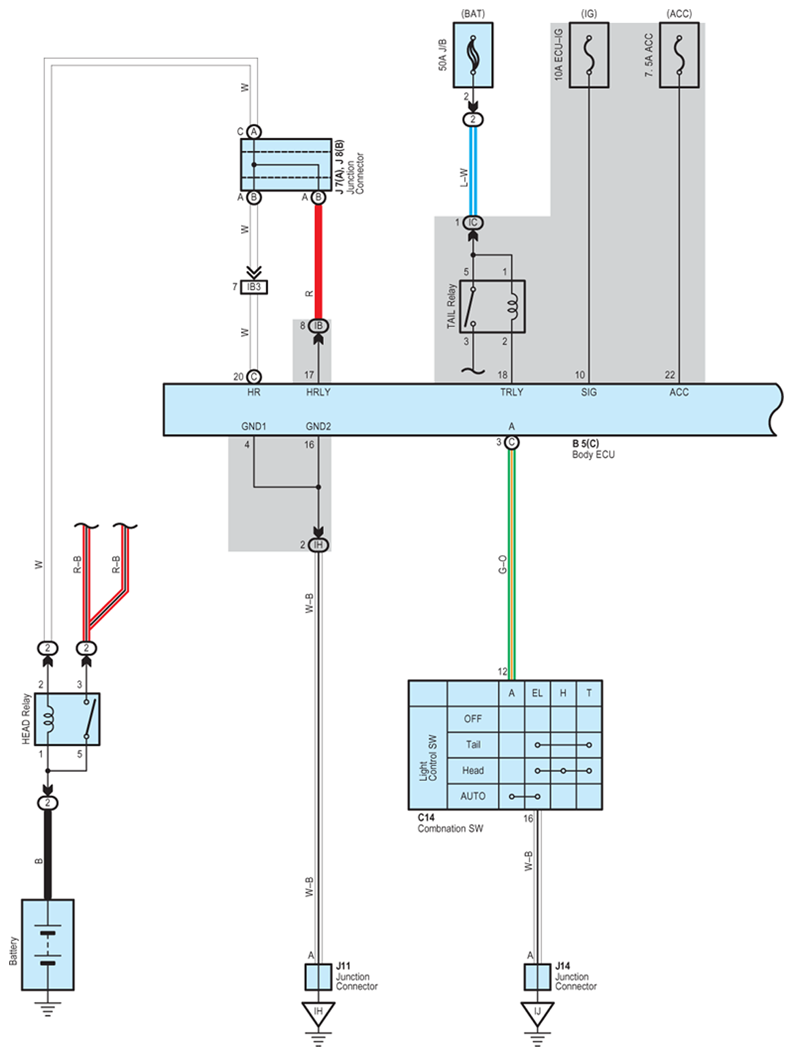

Fig 1: Automatic Light Control - Circuit Diagram (1 Of 2)
G07613370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

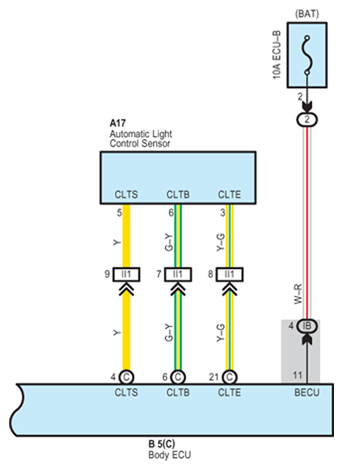

Fig 2: Automatic Light Control - Circuit Diagram (2 Of 2)
G07613371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
