Back Window Glass: Installation

1. Using a brush, coat the installation surface on the vehicle body with Primer M.
   NOTE:

   • Do not coat the adhesive with Primer M.
   • Do not apply too much primer.
   • Allow the primer coating to dry for 3 minutes or more.
   • Do not keep any of the opened Primer M for later use.
   Fig 1: Identifying Proper Position Of Coating Installation Surface On Vehicle Body With Primer M

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

2. Using a brush or sponge, coat the application area of adhesive with Primer G.
   NOTE:

   • Do not apply too much primer.
   • Allow the primer coating to dry for 3 minutes or more.
   • Do not keep any of the opened Primer G for later use.

   HINT

   If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

   Standard dimension

   DIMENSION SPECIFICATIONS



   Area	Dimension
   A	12.0 mm (0 472 in)
   B	13.0 mm (0.512 in)
   C	33.6 mm (1 323 in.)
   D	13.0 mm (0.512 in.)
   E	14.0 mm (0.551 in.)
   F	11.0 mm (0.433 in.)

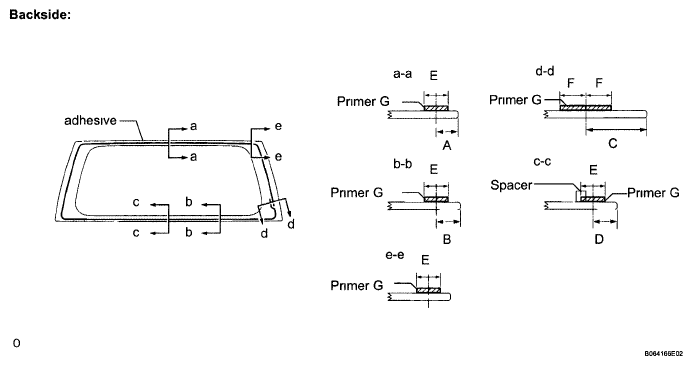

   Fig 2: Identifying Adhesive And Primer Application Areas On Windshield

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Apply adhesive (Adhesive. TOYOTA genuine windshield glass adhesive or equivalent).
   1. Cut off the tip of the cartridge nozzle, as shown in the illustration.

      HINT.

      After cutting off the tip, use all adhesive within the time described in the table below

      Usage time frame

      TIME FRAME



      Temperature	Tack-free Time
      35°C (95°F)	15 minutes
      20°C (68°F)	1 hour and 40 minutes
      5°C (41°F)	8 hours

   2. Load the sealer gun with cartridge.
   3. Apply adhesive to the back window glass, as shown in the illustration.

   Standard dimension

   DIMENSION SPECIFICATIONS



   Area	Dimension
   A	12 0 mm (0.472 In)
   B	8.0 mm (0.315 In.)
   C	12.0 mm (0.472 in.)
   D	13.0 mm (0.512 In.)
   E	29.6 mm (1.166 in.)
   F	37.6 mm (1.480 in.)

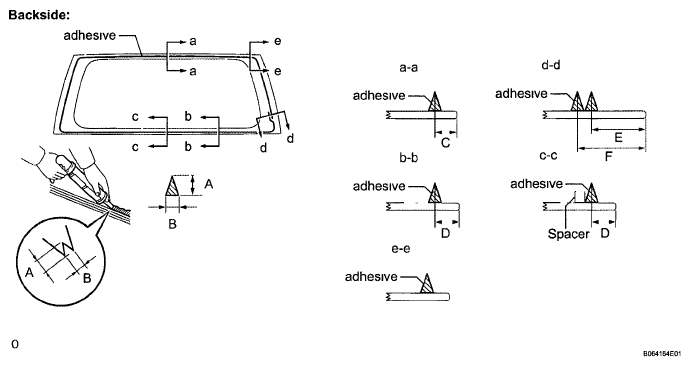

   Fig 3: Identifying Adhesive Application Areas On Windshield

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the glass to the body.
   1. Hold the back window glass in place securely with tape or equivalent to the body until the adhesive has hardened.
   2. Lightly press the front surface of the glass to ensure a close fit.
   3. Using a scraper, remove any excess or protruding adhesive.

      HINT:

      Apply adhesive onto the glass rim.

      NOTE: The vehicle should not be driven until the time indicated in the table below has elapsed.

Minimum time

1. After the adhesive has hardened, apply water from the outside of the vehicle. Check that no water leaks into the cabin.
2. If water leaks into the cabin, allow the water to dry and add adhesive.
3. Remove the protective tape.

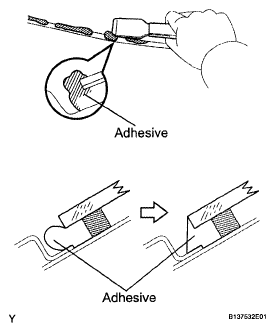

Fig 4: Removing Excess Or Protruding Adhesive Using Scraper

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
