Front Passenger Side Power Window Auto Up/Down Function does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

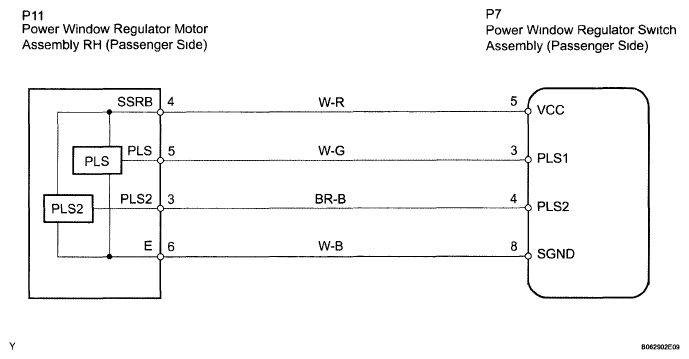

Fig 1: Power Window Switch - Wiring Diagram (Passenger Side)
G05846633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
