Manual Up/Down Function does not Operate on Driver Side: Description

If the manual UP/DOWN function does not operate, the power window motor, the power window master switch or the wire harness may be abnormal.

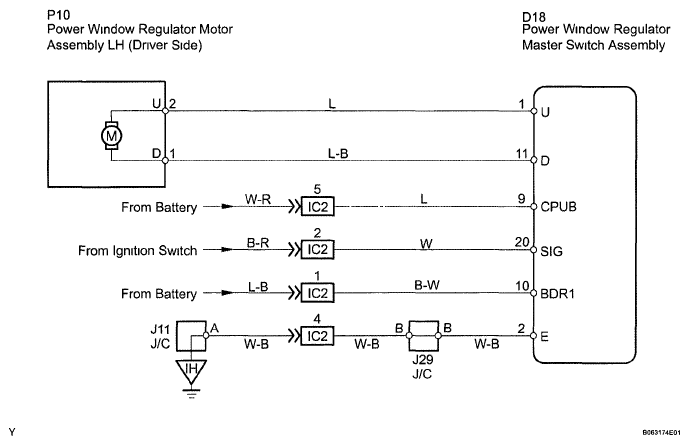

Fig 1: Power Window Regulator Master Switch - Wiring Diagram
G05846645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
