Inspection Procedure

  1. INSPECT POWER WINDOW REGULATOR SWITCH (FOR GROUND)
    1. Remove the power window switch (the connector is connected).
    2. Check the continuity between terminal 7 and the body ground.

      Standard resistance:

      Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    Fig 1: Identifying Power Window Regulator Switch Connector Terminals
    G05846612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  2. INSPECT POWER WINDOW REGULATOR SWITCH
    1. Check the voltage between terminals 12 and 7.

      Standard voltage:

      10 to 14 V (Constant)

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER WINDOW REGULATOR SWITCH - POWER SOURCE)

    Fig 2: Identifying Power Window Regulator Switch Connector Terminals
    G05846613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  3. INSPECT POWER WINDOW REGULATOR SWITCH
    1. Turn the ignition switch ON.
    2. Check the voltage between terminals 11 and 7 when operating the window lock switch on the master switch.

    Standard voltage

    VOLTAGE SPECIFIED CONDITION

    Terminal No. Window Lock Switch Specified Condition
    11 - 7 ON 5V
    OFF Less than 1 V

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (WINDOW REGULATOR SWITCH - WINDOW REGULATOR MASTER SWITCH)

    Fig 3: Identifying Power Window Regulator Switch Connector Terminals
    G05846614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  4. CHECK WIRE HARNESS (POWER WINDOW REGULATOR SWITCH - POWER WINDOW MOTOR)
    1. Disconnect the P7 power window switch connector.
    2. Remove the front door trim RH.
    3. Disconnect the P11 power window motor connector.
    4. Check the continuity between the wire harness side connectors.

    Standard resistance

    RESISTANCE SPECIFIED CONDITIONS

    Terminal No Specified Condition
    P7-1 - P11-1 Below 1 Ω
    P7-6 - P11-2 Below 1 Ω
    P7-1 - Body ground No continuity
    P7-6 - Body ground No continuity

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

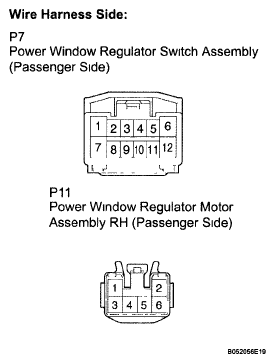

    Fig 4: Identifying P7 Power Window Switch And P11 Power Window Motor Connector Terminals
    G05846615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  5. INSPECT POWER WINDOW REGULATOR MOTOR (PASSENGER SIDE)
    1. Remove the motor.
    2. Apply battery voltage to the connector between terminals 1 and 2.
    3. Check that the motor rotates smoothly.
      NOTE: Do not apply battery voltage to the terminals except 1 and 2.

    Standard

    Fig 5: Checking Power Window Regulator Motor Rotation
    G05846616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    POWER WINDOW REGULATOR MOTOR OPERATION CONDITIONS

    Terminal No. Motor Gear Rotation
    Battery positive voltage → 1
    Battery negative voltage → 2    		 Clockwise
    Battery positive voltage → 2
    Battery negative voltage → 1    		 Counterclockwise

    NG: REPLACE POWER WINDOW REGULATOR MOTOR (PASSENGER SIDE)

    OK: REPLACE POWER WINDOW REGULATOR SWITCH (PASSENGER SIDE)
