Inspection Procedure

1. Check that the door glass can be operated manually.

NG: OTHER PROBLEM

OK: Go to Next Step

1. Turn the ignition switch ON.
2. Operate the power window switch.
3. Check the blinking pattern of the illumination as shown in the illustration.
   Fig 1: Identifying Power Window Regulator Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

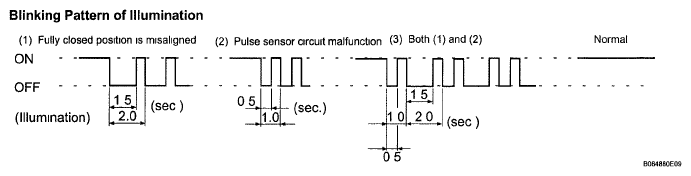

   Fig 2: Blinking Pattern Of Illumination

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. If pattern (1) is displayed, proceed to A.
   2. If pattern (2) or (3) is displayed, proceed to B.
   3. If the normal pattern is displayed, proceed to C.

B: Go to step 4

C: REPLACE REAR POWER WINDOW REGULATOR SWITCH (REAR RH)

A: Go to Next Step

1. Turn the ignition switch ON.
2. Open the door glass.
3. Fully pull up the power window switch until the door glass is fully closed.
4. Continue to hold the switch 1 second or more even after the door glass is fully closed.
5. Check that the AUTO UP/DOWN function operates completely.

OK: END

NG: Go to Next Step

1. Remove the rear RH side door trim board.
2. Disconnect the P9 power window switch connector
3. Disconnect the P13 power window motor connector.
4. Check the continuity between the wire harness side connectors. Standard:

Standard resistance

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

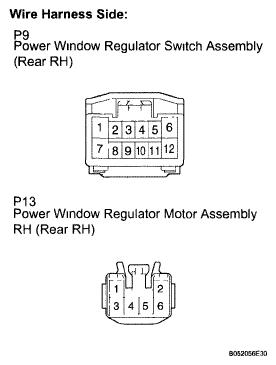

Fig 3: Identifying P9 Power Window Switch And P13 Power Window Motor Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPLACE POWER WINDOW REGULATOR MOTOR (REAR RH)
