Rear Power Window RH Auto Up/Down Function does not Operate with Rear Power Window Switch RH: Wiring Diagram

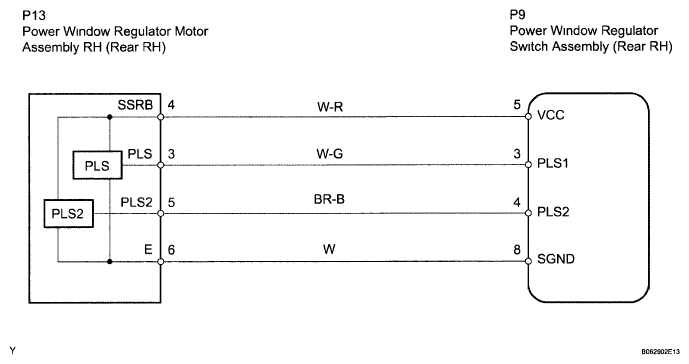

Fig 1: Power Window - Wiring Diagram (Rear RH)
G05846641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
