Quarter Window Glass: Components

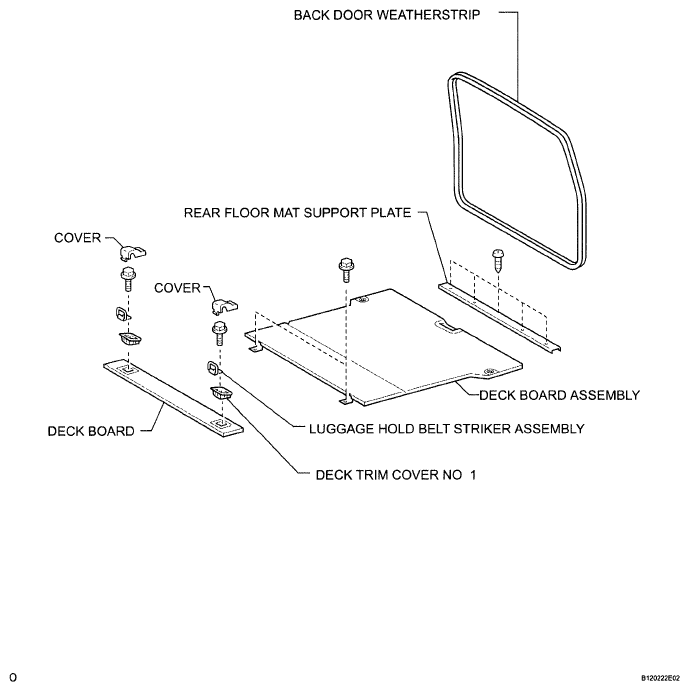

Fig 1: Identifying Deck Board Assembly Components
G05846692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Quarter Window Glass Replacement Components With Torque Specifications
G05846693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
