LEXUS Link System (Mayday System): Notes

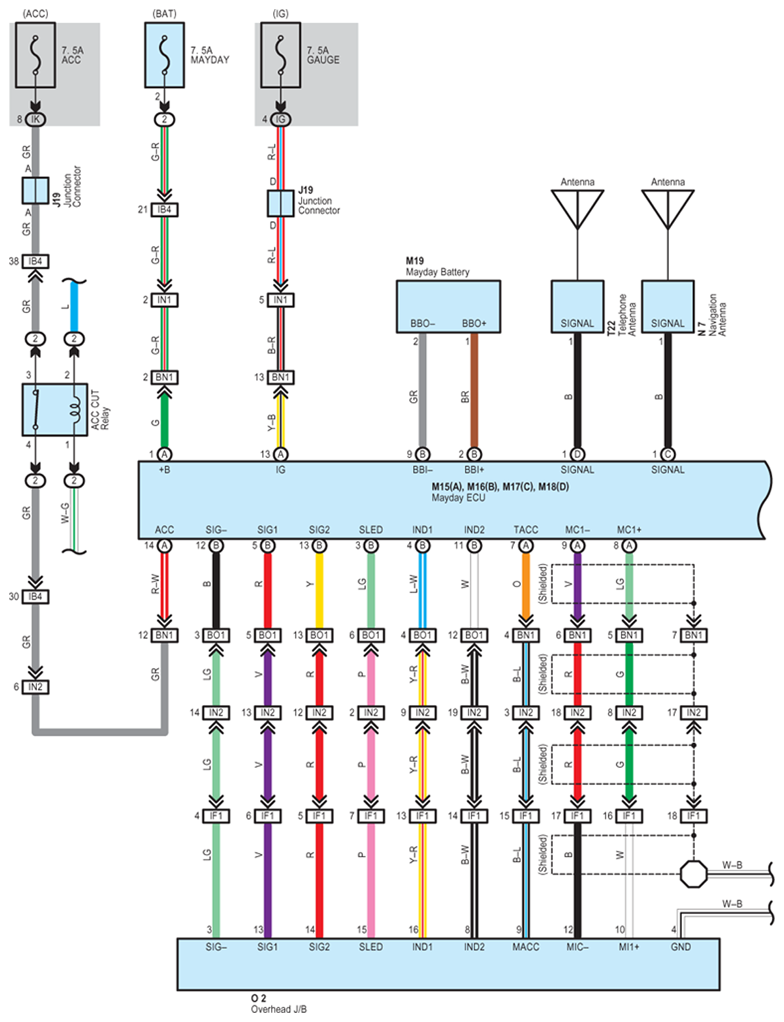

Fig 1: Lexus Link System (Mayday System) - Circuit Diagram (1 Of 4)
G07613482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

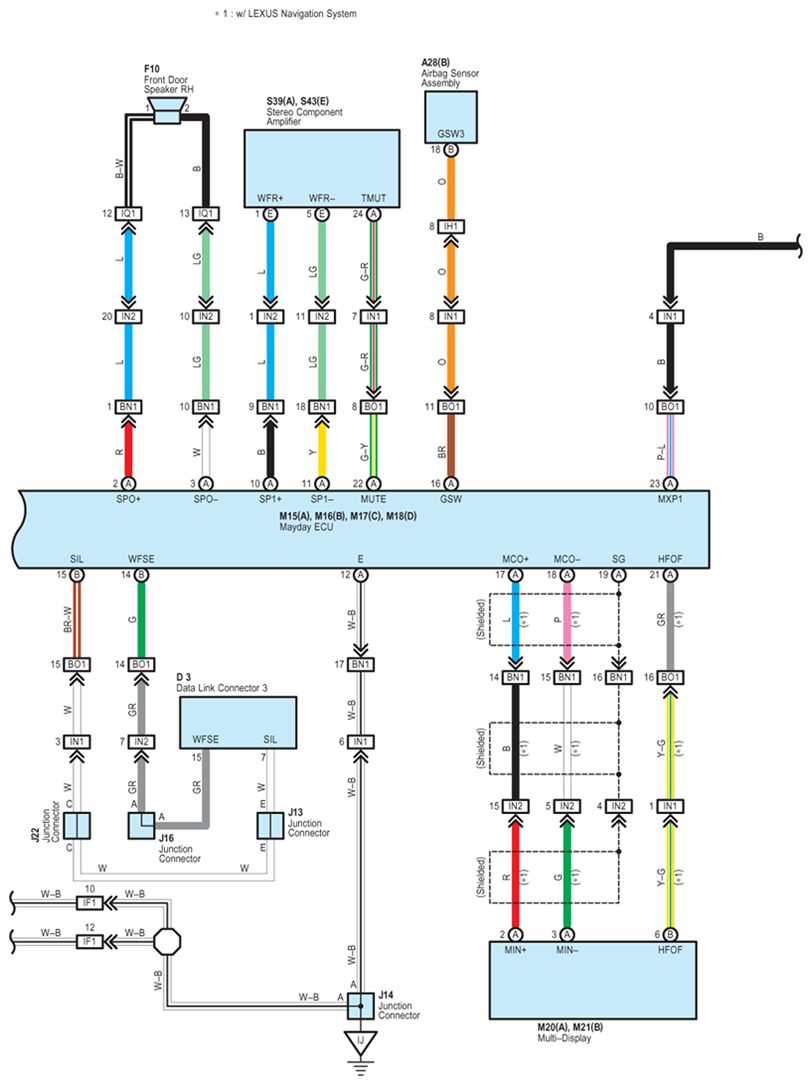

Fig 2: Lexus Link System (Mayday System) - Circuit Diagram (2 Of 4)
G07613483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

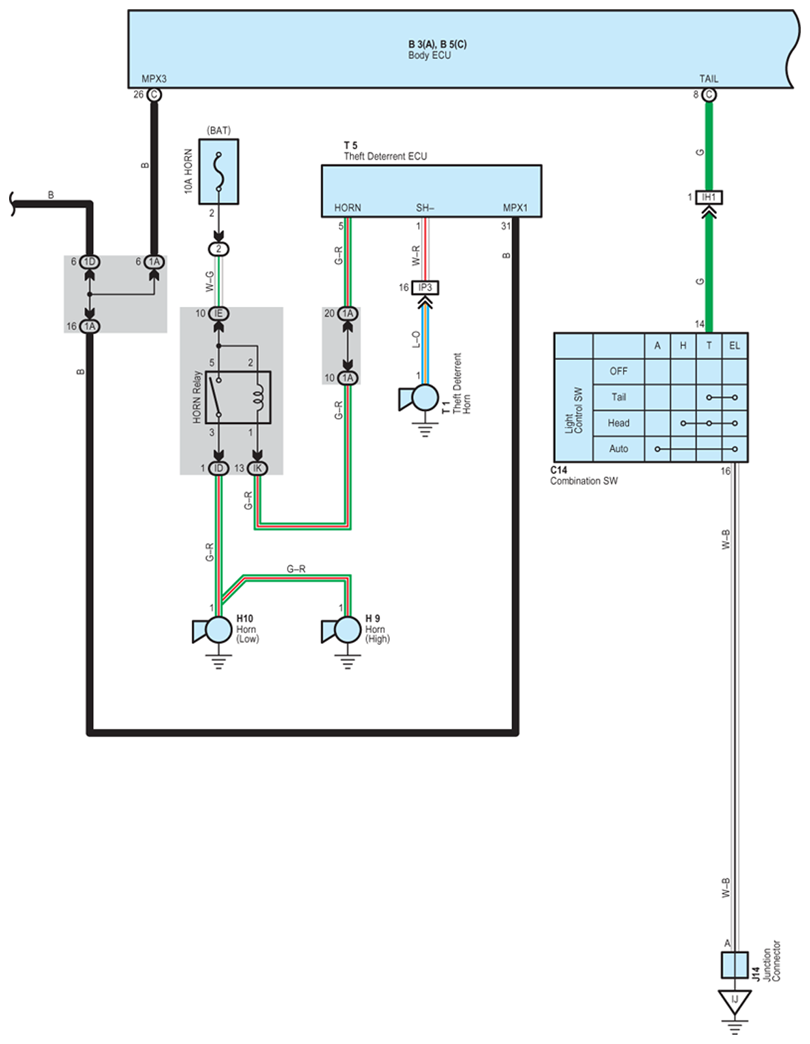

Fig 3: Lexus Link System (Mayday System) - Circuit Diagram (3 Of 4)
G07613484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

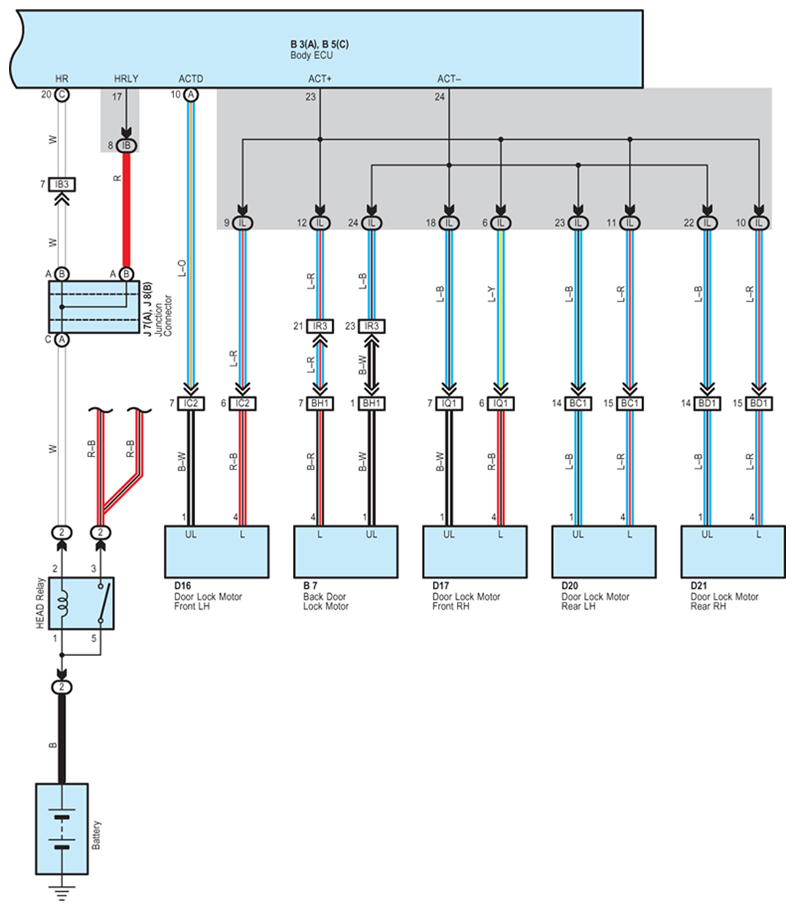

Fig 4: Lexus Link System (Mayday System) - Circuit Diagram (4 Of 4)
G07613485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
