Circuit Protection Devices

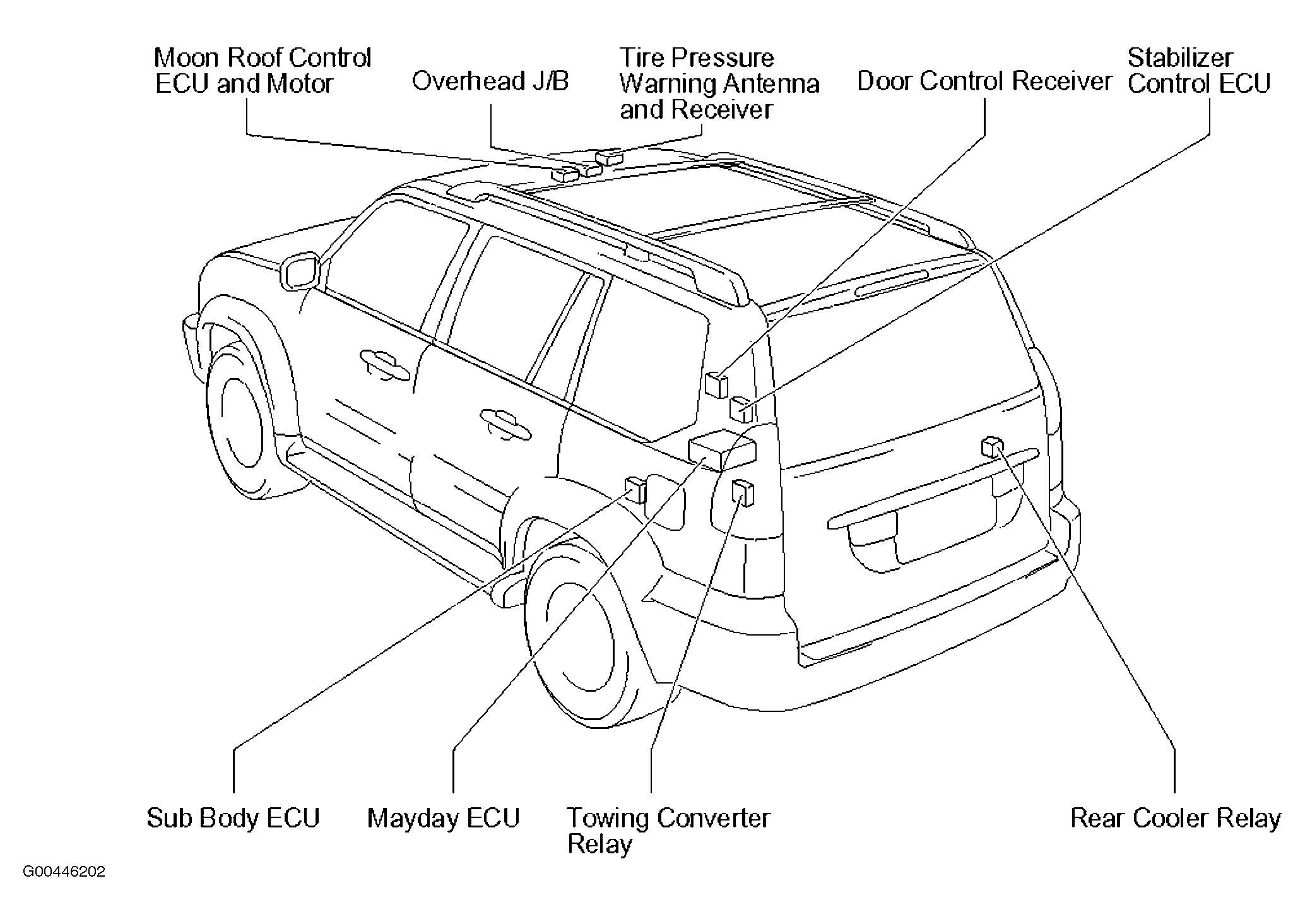

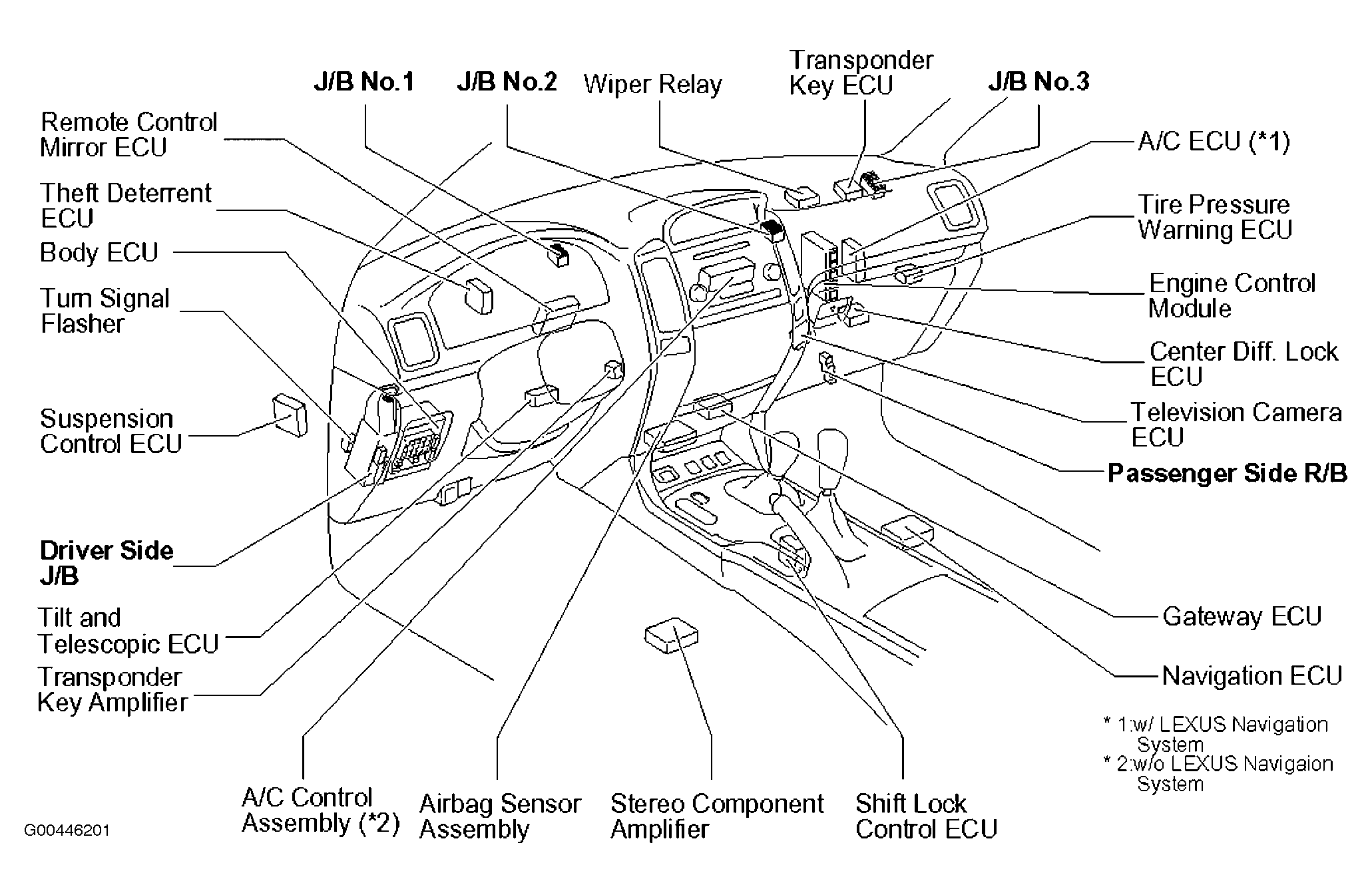

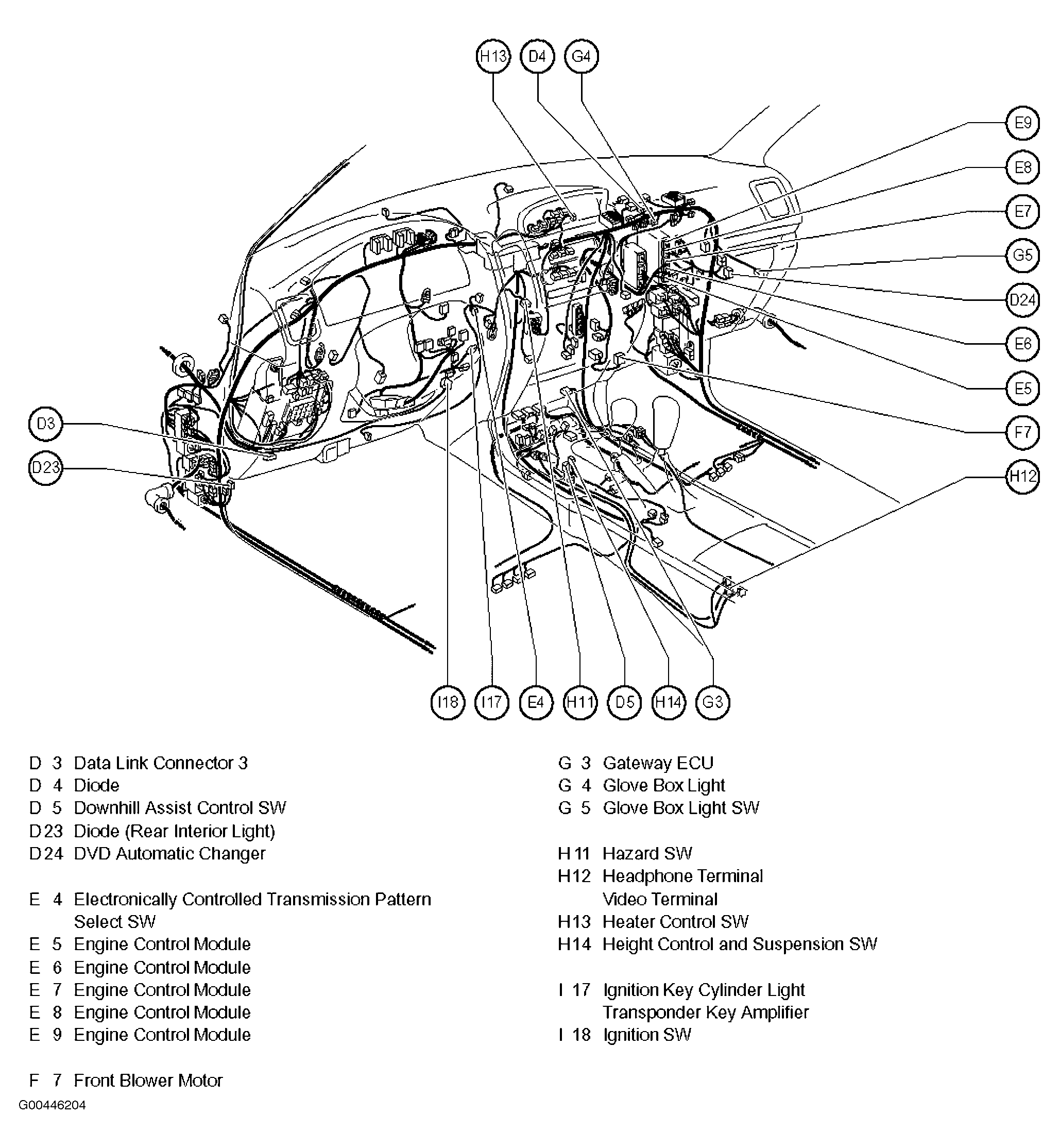

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Diode (Back-Up Light) | Behind right side of dash. See Figure. |
| Diode (Rear Interior Light) | Left side of dash. See Figure. |
| Driver Side J/B | Behind lower left end of dash. See Figure. |
| Engine Room R/B | On left side of engine compartment. See Figure. |
| Engine Room R/B No. 3 | On left side of engine compartment. See Figure. |
| Engine Room R/B No. 4 | On left side of engine compartment. See Figure. |
| Fuel Pump Resistor | Left side of engine compartment. See Figure. |
| J/B No. 1 | Behind center of dash. See Figure. |
| J/B No. 2 | Behind center of dash. See Figure. |
| J/B No. 3 | Behind right side of dash. See Figure. |
| Overhead J/B | Above headliner, at center of windshield header. See Figure. |
| Passenger Side R/B | At right kick panel. See Figure. |
