Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

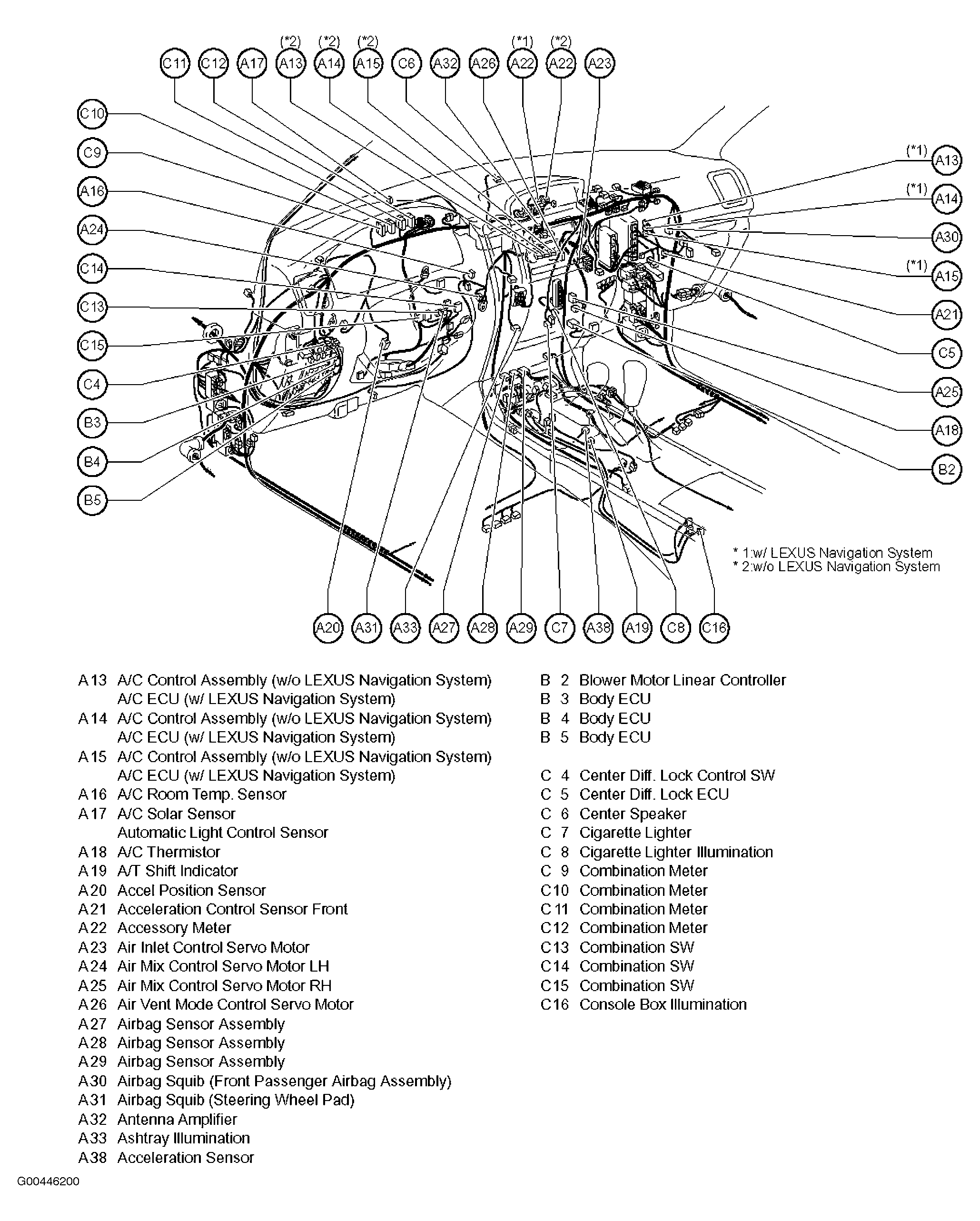

| A/C Control Assembly (W/O Navigation) | Behind right side of dash. See Figure. |
| A/C ECU (W/Navigation) | Behind right side of dash. See Figure. |
| Blower Motor Linear Controller | Behind lower right center of dash. See Figure. |
| Body ECU | Behind left end of dash. See Figure. |
| Center Diff. Lock ECU | Behind right side of dash. See Figure. |
| Door Control Receiver | On left "D" pillar, behind trim. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Gateway ECU | Behind center of dash. See Figure. |
| Mayday ECU | Left rear of vehicle. See Figure. |
| Moon Roof Control ECU & Motor | Above headliner, at center of windshield header. See Figure. |
| Navigation ECU | Under passenger's seat. See Figure. |
| Occupant Classification ECU | Under front passenger's seat. See Figure. |
| Power Seat ECU & SW | Lower left side of driver's seat. See Figure. |
| Remote Control Mirror ECU | Behind left side of dash. See Figure. |
| Shift Lock Control ECU | Under center console, near shift lever assembly. See Figure. |
| Skid Control ECU & Actuator | Left rear of engine compartment. See Figure. |
| Stabilizer Control ECU | At left rear of vehicle. See Figure. |
| Sub Body ECU | Below left "D" pillar, behind trim. See Figure. |
| Suspension Control ECU | Behind left end of dash, above driver side J/B. See Figure. |
| Television Camera ECU | Left kick panel. See Figure. |

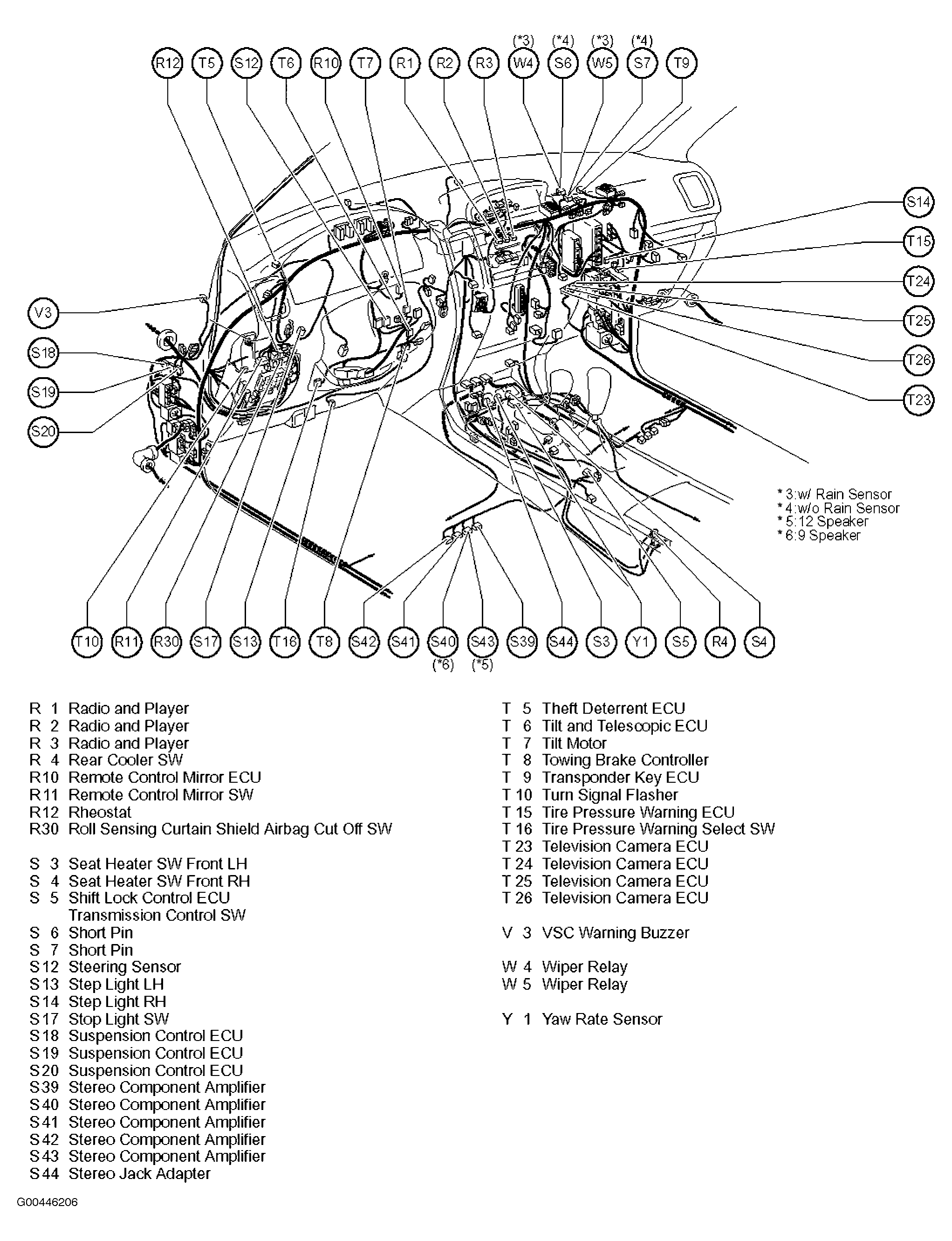

| Theft Deterrent ECU | Behind left side of dash. See Figure. |
| Tilt & Telescopic ECU | Behind left side of dash. See Figure. |
| Tire Pressure Monitor Computer | Right side of dash. See Figure. |
| Towing Brake Controller | Behind left side of dash. See Figure. |
| Transponder Key Computer | Behind upper right side of dash. See Figure. |
