Cranking Holding Function Circuit: Wiring Diagram

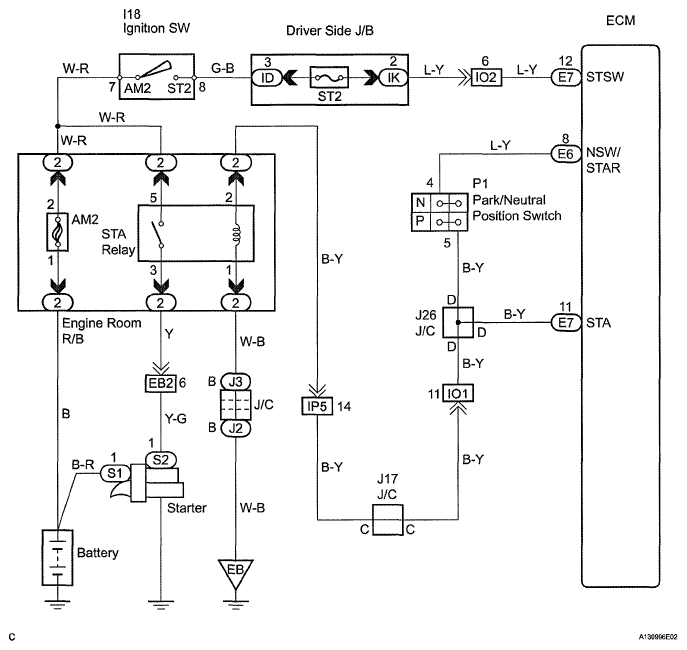

Fig 1: Starter Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
