Inspection Procedure

HINT:

Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction

1. CHECK ECM (FPR VOLTAGE)
   1. Measure the voltage of the ECM connector.

      Standard voltage

      STANDARD VOLTAGE



      Tester Connection	Condition	Specified Condition
      FPR (E7-30) - E1 (E7-1)	STA signal ON	9 to 14 V
      FPR (E7-30) - E1 (E7-1)	STA signal OFF	0 to 3 V

   OK: REPLACE ECM

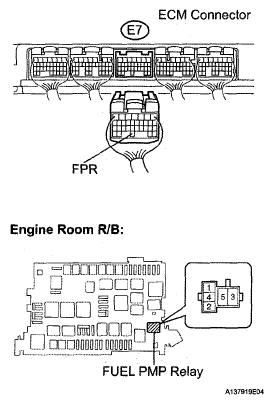

   Fig 1: Checking ECM (FPR Voltage)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: Go to next step

2. INSPECT FUEL PMP RELAY ASSEMBLY
   1. Remove the FUEL PMP relay from the engine room R/B.
   2. Measure the resistance of the FUEL PMP relay.

      Standard resistance

      STANDARD RESISTANCE



      Tester Connection	Specified Condition
      3-4	Below 1 Ω
      3-5	10 kΩ or higher
      3-4	10 kΩ or higher (when battery voltage is applied to terminals 1 and 2)
      3-5	Below 1 a (when battery voltage is applied to terminals 1 and 2)

      Fig 2: Inspecting Fuel PMP Relay Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Reinstall the FUEL PMP relay.

   NG: REPLACE FUEL PMP RELAY ASSEMBLY

   OK: Go to next step

3. CHECK HARNESS AND CONNECTOR (FUEL PMP RELAY - ECM)
   1. Remove the FUEL PMP relay from the engine room R/B.
   2. Disconnect the E7 ECM connector.
   3. Measure the resistance between wire harness side connectors.

      Standard resistance (Check for open)

      STANDARD RESISTANCE



      Tester Connection	Specified Condition
      Engine Room R/B (FUEL PMP relay terminal 1) - FPR (E7-30)	Below 1 Ω

      Standard resistance (Check for short)

      STANDARD RESISTANCE



      Tester Connection	Specified Condition
      Engine Room R/B (FUEL PMP relay terminal 1) or FPR (E7-30) - Body ground	10 kΩ or higher

   4. Reconnect the ECM connector.
   5. Reinstall the FUEL PMP relay.

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   Fig 3: Checking Harness And Connector (Fuel PMP Relay - ECM)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: REPLACE ECM
