Inspection Procedure

1. Jack up the vehicle.
2. Disconnect the park/neutral position switch connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE REFERENCE



   Shift Position	Tester Connection	Specified Condition
   P	2 - 6	Below 1 Ω
   Not on P	↑	10 kΩ or higher

   Fig 1: Identifying Park/Neutral Position Switch Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

OK: Go to Next Step

1. Remove the transfer indicator switch No. 2.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE REFERENCE



   Switch Position	Tester Connection	Specified Condition
   Free	1 - 2	10 kΩ or higher
   Pushed in	↑	Below 1 Ω

NG: REPLACE TRANSFER INDICATOR SWITCH NO. 2

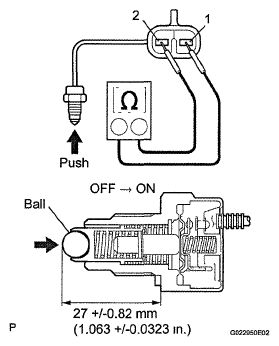

Fig 2: Inspecting Transfer Indicator Switch No. 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to Next Step

1. See the combination meter troubleshooting section (see HOW TO PROCEED WITH TROUBLESHOOTING ).

NG: REPLACE COMBINATION METER ASSEMBLY

OK: REPAIR OR REPLACE HARNESS OR CONNECTOR
