Pattern Select Switch Circuit: Wiring Diagram

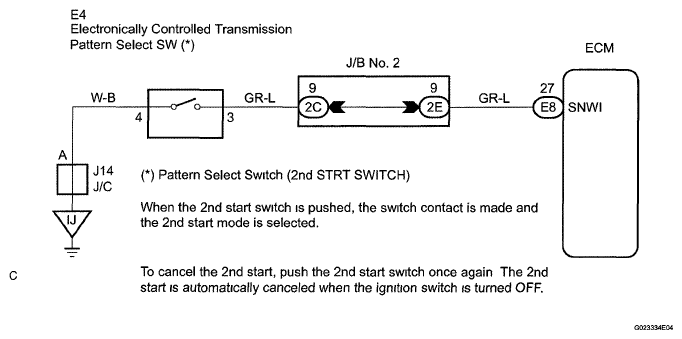

Fig 1: Pattern Select Switch - Wiring Diagram
G05844410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
