Installation

UF1AE TRANSFER: 4WD CONTROL ECU:

INSTALLATION

1. INSTALL 4WD CONTROL ECU

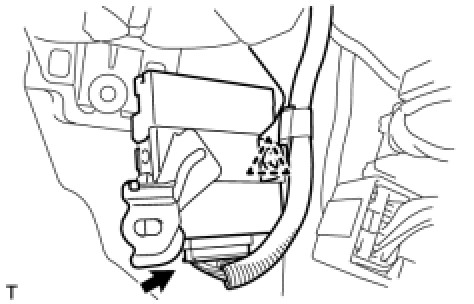

(a) Connect the connector and clamp to the 4WD control ECU.

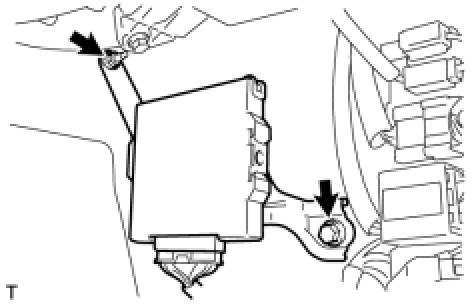

(b) Install the 4WD control ECU with the bolt and nut.
Bolt - Torque: 14 Nm (137 kgf-cm, 10 ft-lbf)
Nut - Torque: 6.0 Nm (61 kgf-cm, 54 in-lbf)

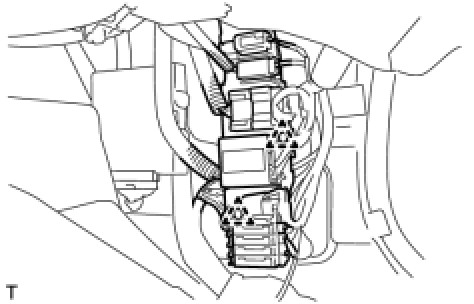

(c) Connect the junction connector with the 2 clips.
2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

3. INSTALL SIDE INSTRUMENT PANEL RH Installation

4. INSTALL FRONT DOOR OPENING TRIM COVER RH Installation

5. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
HINT: Use the same procedures for the RH side and the LH side Installation.

6. INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)
HINT: Use the same procedures for the RH side and the LH side Installation.
