Outer Mirror Switch: Installation

INSTALL OUTER MIRROR SWITCH ASSEMBLY (for Standard)
1. Engage the 4 claws to install the outer mirror switch assembly.

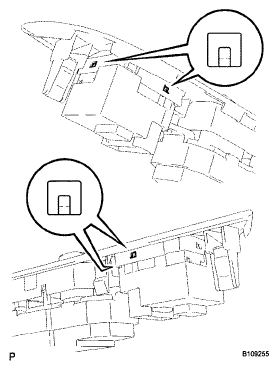

Fig 1: Identifying Outer Mirror Switch Assembly And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OUTER MIRROR SWITCH ASSEMBLY (for Wood Panel)
1. Engage the 4 claws to install the outer mirror switch assembly.

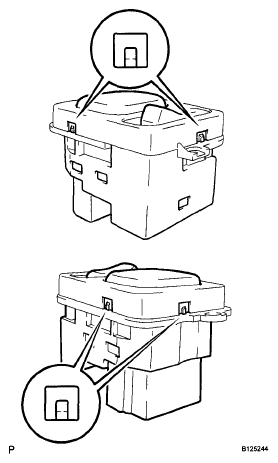

  Fig 2: Removing Outer Mirror Switch Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the outer mirror switch assembly with the front door armrest base cover lower LH with the 2 screws.
INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (See REASSEMBLY )
INITIALIZE POWER WINDOW CONTROL SYSTEM (See REASSEMBLY )
