Inspection Procedure

1. Remove the power window motor.
2. Apply battery voltage to the motor connector according to the table below.
   NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

   Standard

   TERMINAL MEASUREMENT SPECIFIED CONDITION



   Measurement Condition	Specified Condition
   Battery positive (+) → Terminal 2 (U) Battery negative (-) → Terminal 1 (D)	Motor gear rotates clockwise
   Battery positive (+) → Terminal 1 (D) Battery negative (-) → Terminal 2 (U)	Motor gear rotates counterclockwise

Fig 1: Identifying Power Window Regulator Motor Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE POWER WINDOW REGULATOR MOTOR

OK: Go to Next Step

1. Disconnect the M7 and M3 connectors.
2. Measure the resistance according to the value (s) in the table below.

   Resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   M7-1 (UP) - M3-2 (U)	Always	Below 1 Ω
   M7-11 (DN) - M3-1 (D)	Always	Below 1 Ω
   M7-1 (UP) - Body ground	Always	10 kΩ or higher
   M7-11 (DN) - Body ground	Always	10 kΩ or higher

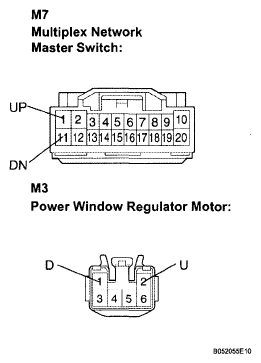

Fig 2: Identifying M7 And M3 Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
