Climate Control Seat and Seat Heater: Notes

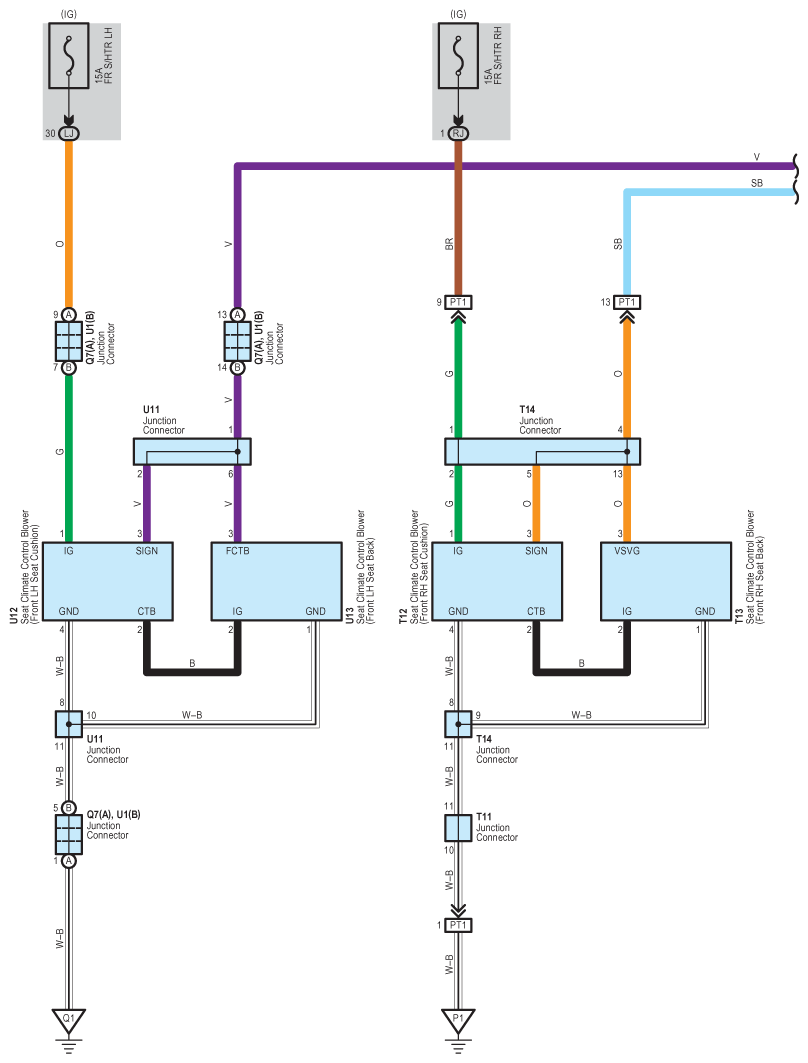

Fig 1: Climate Control Seat And Seat Heater - Circuit Diagram (1 Of 4)
G07591900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

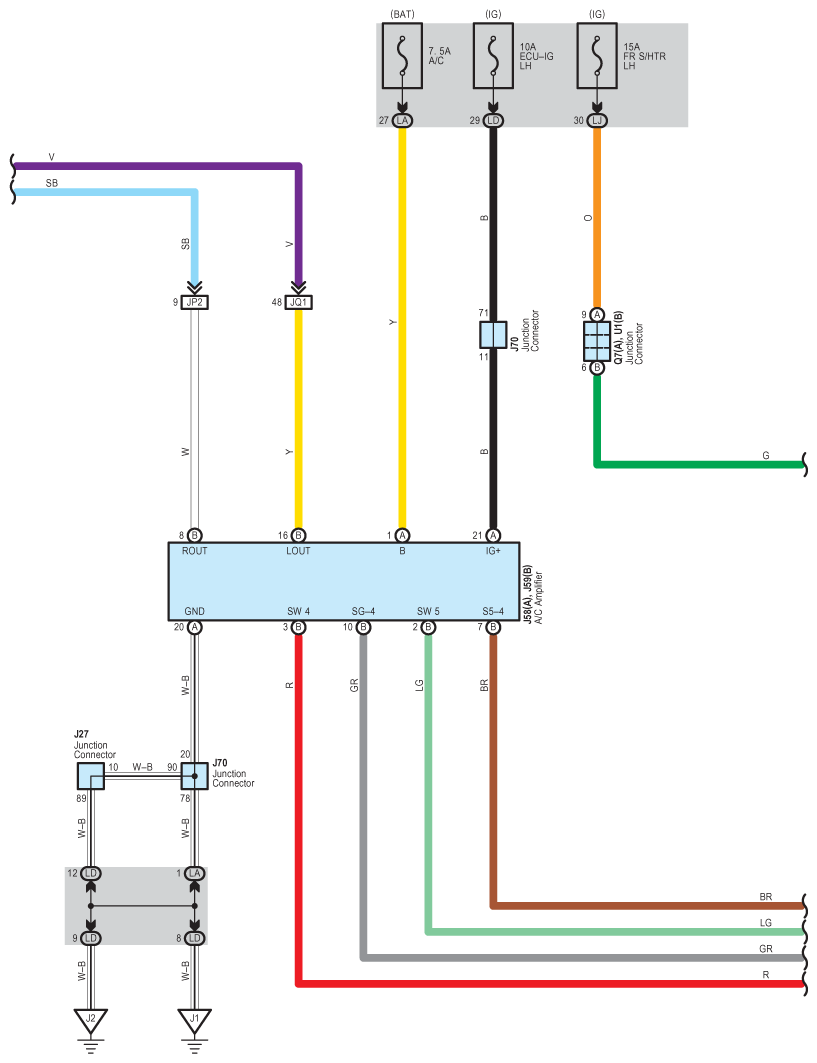

Fig 2: Climate Control Seat And Seat Heater - Circuit Diagram (2 Of 4)
G07591901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

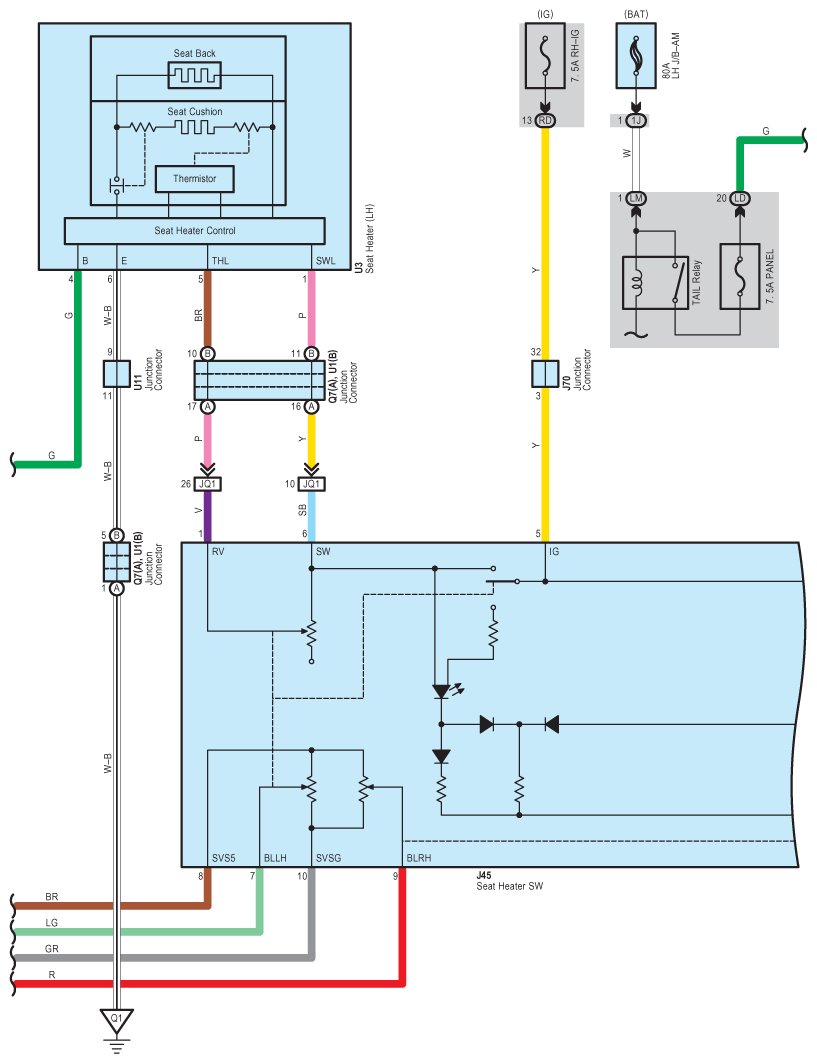

Fig 3: Climate Control Seat And Seat Heater - Circuit Diagram (3 Of 4)
G07591902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

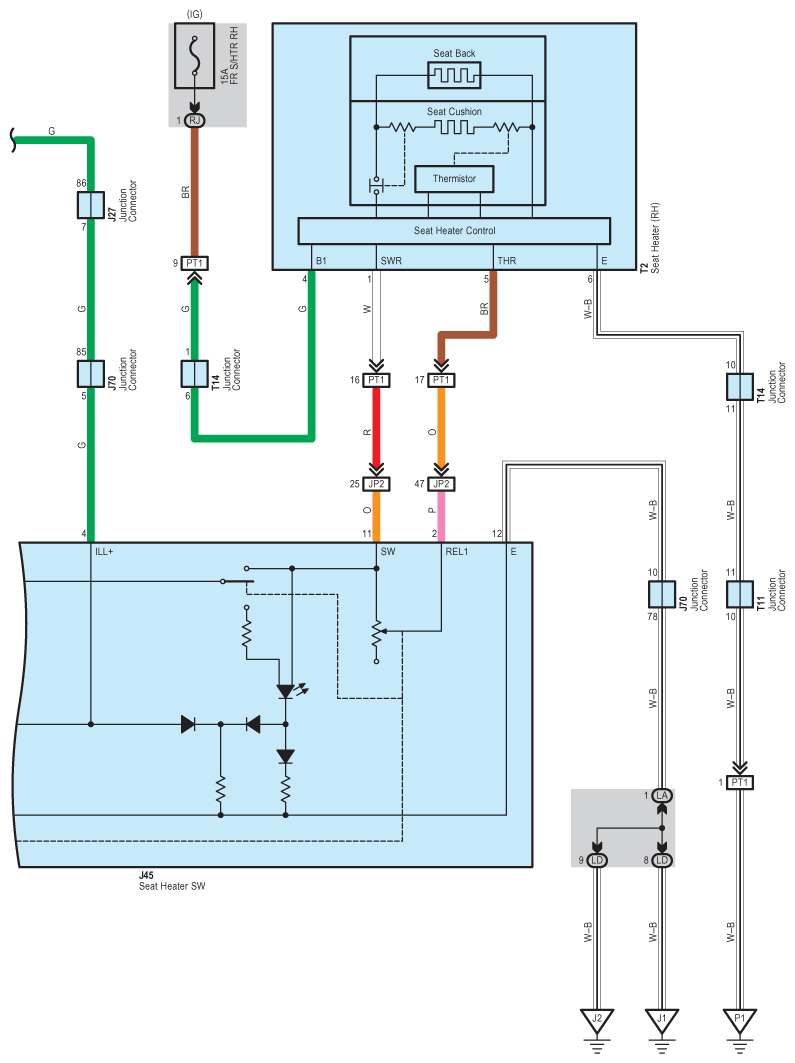

Fig 4: Climate Control Seat And Seat Heater - Circuit Diagram (4 Of 4)
G07591903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
