Engine Control for 4GR-FSE: Notes

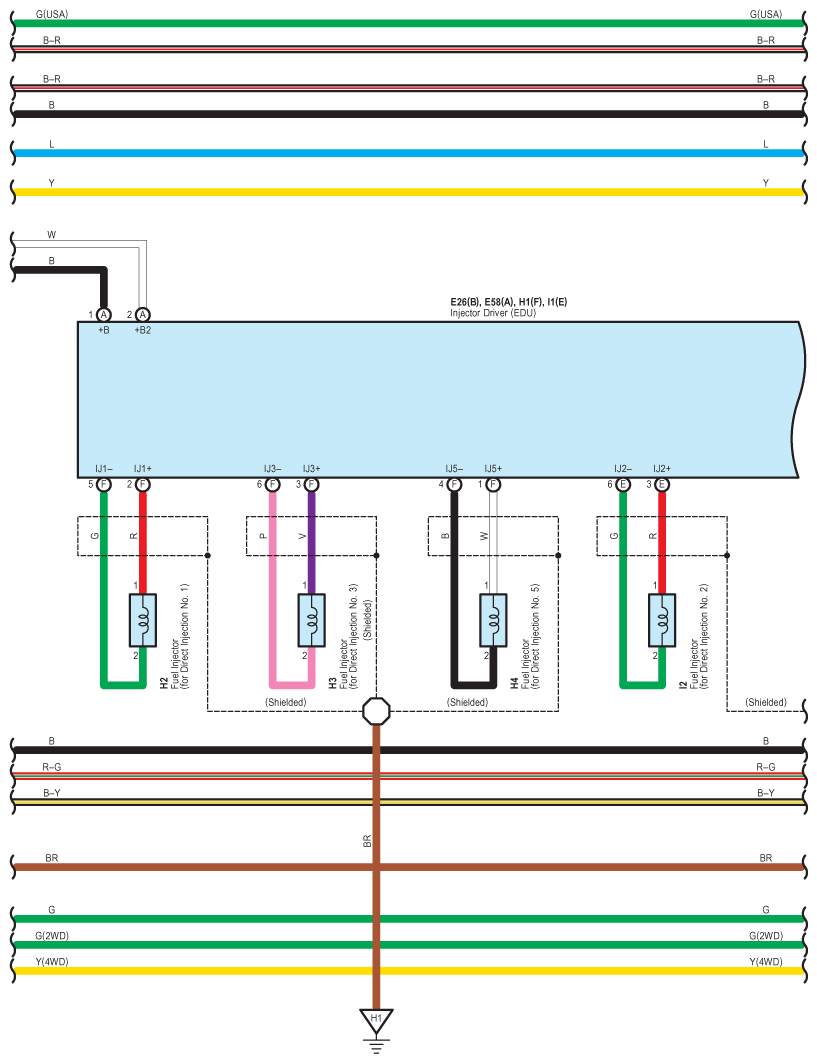

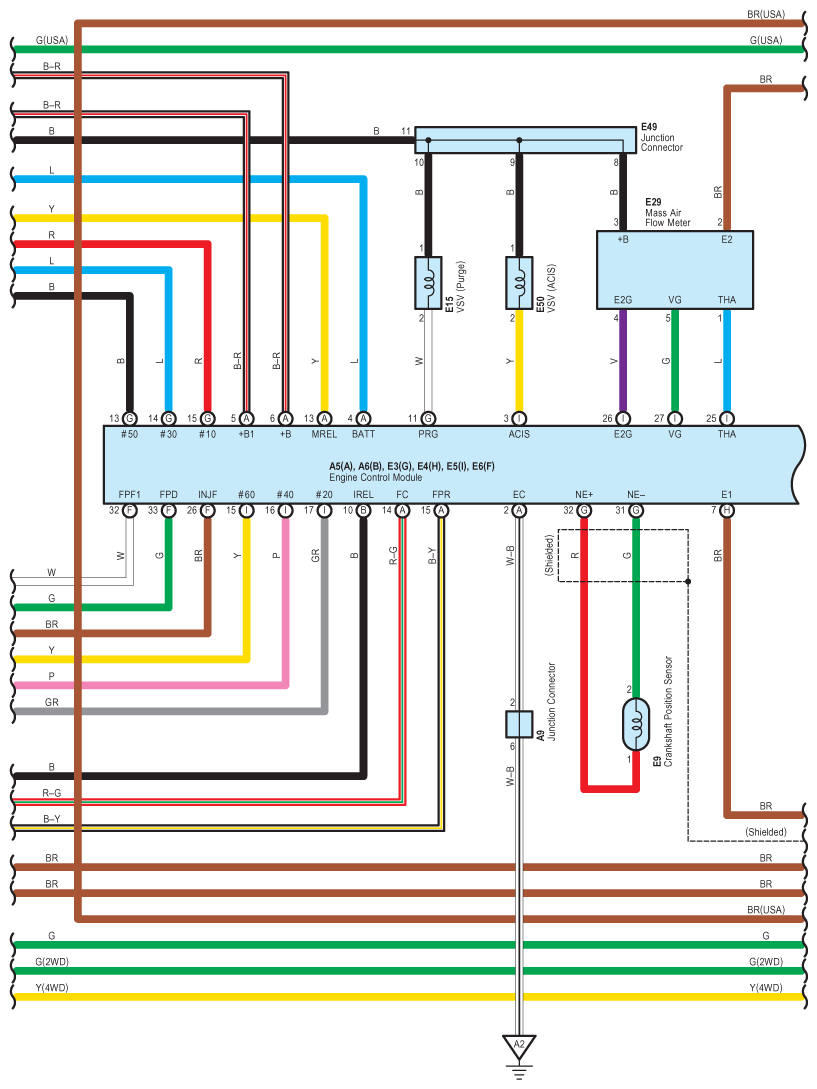

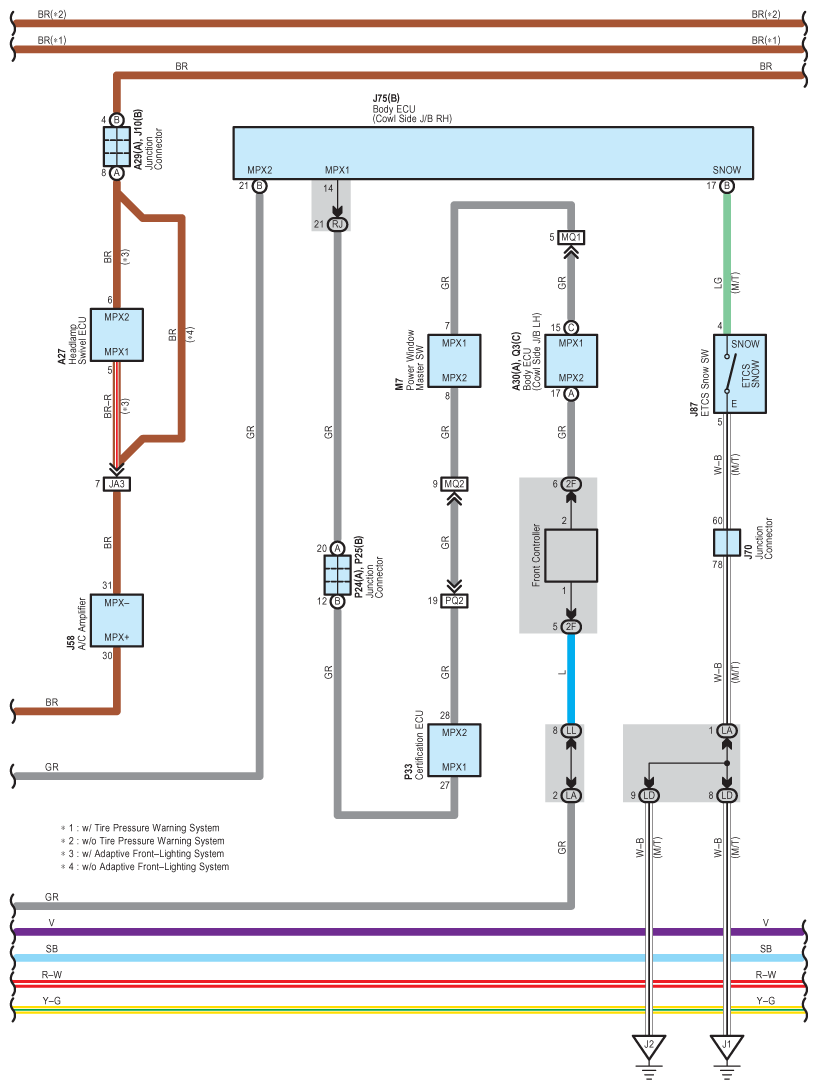

Fig 1: Engine Control For 4GR-FSE - Circuit Diagram (1 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

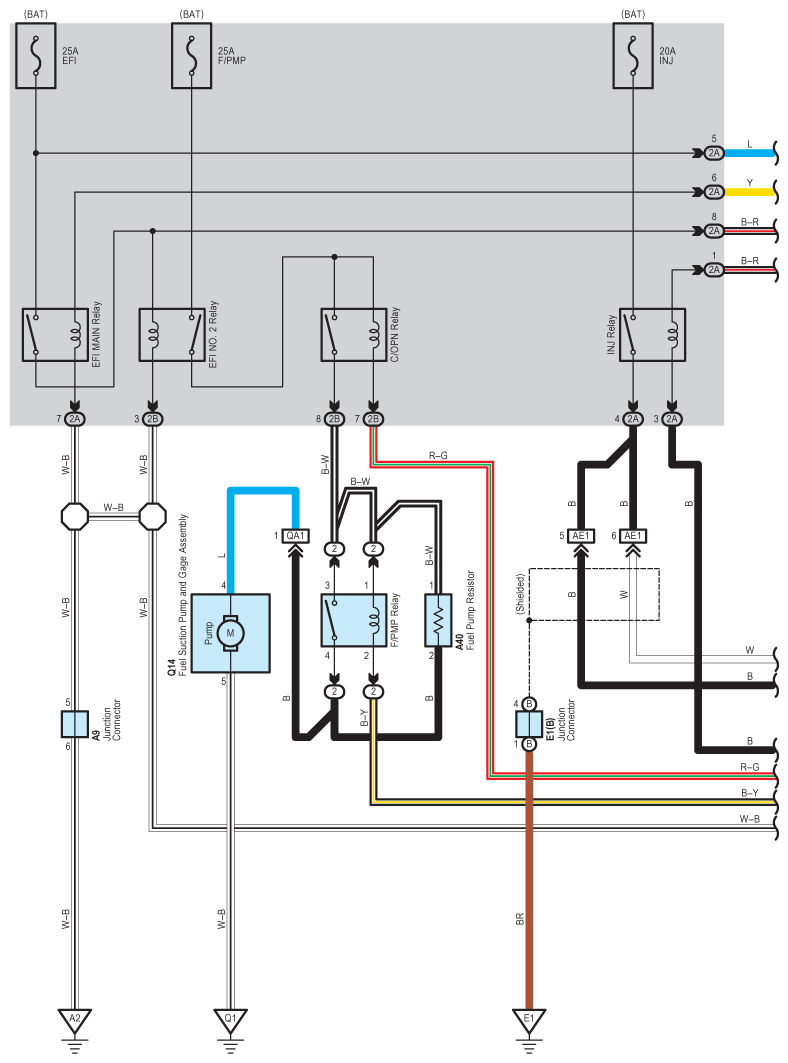

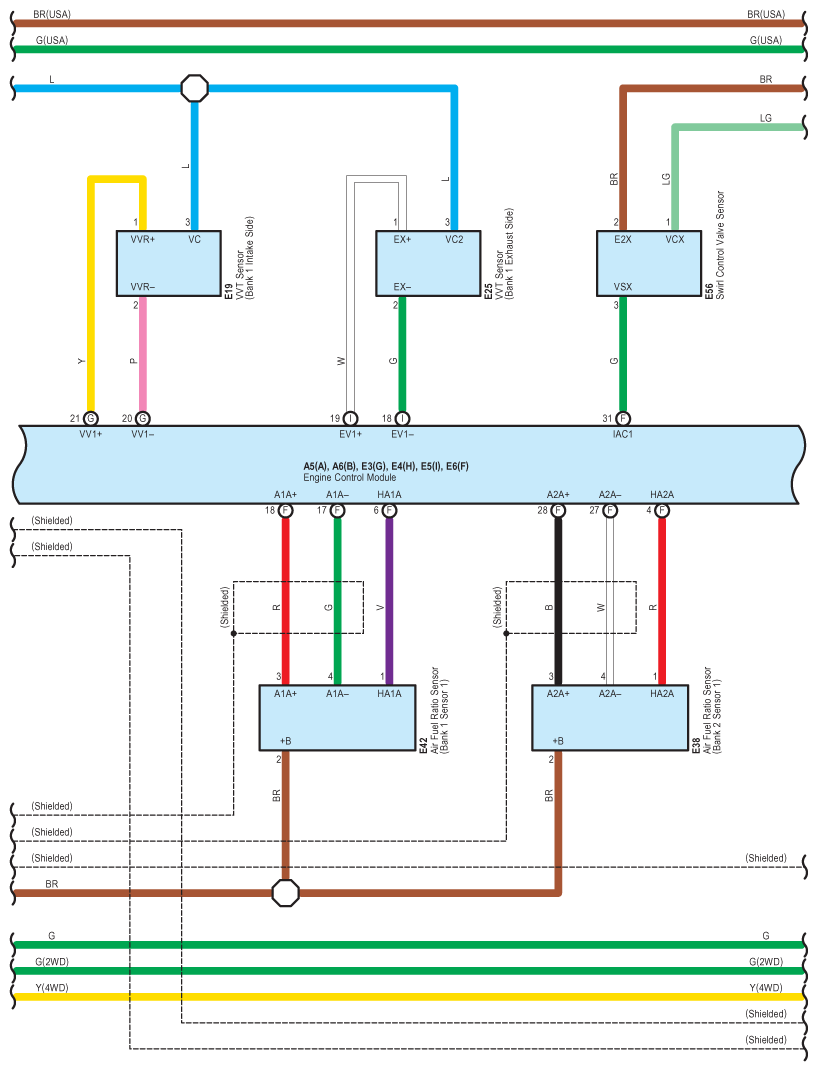

Fig 2: Engine Control For 4GR-FSE - Circuit Diagram (2 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

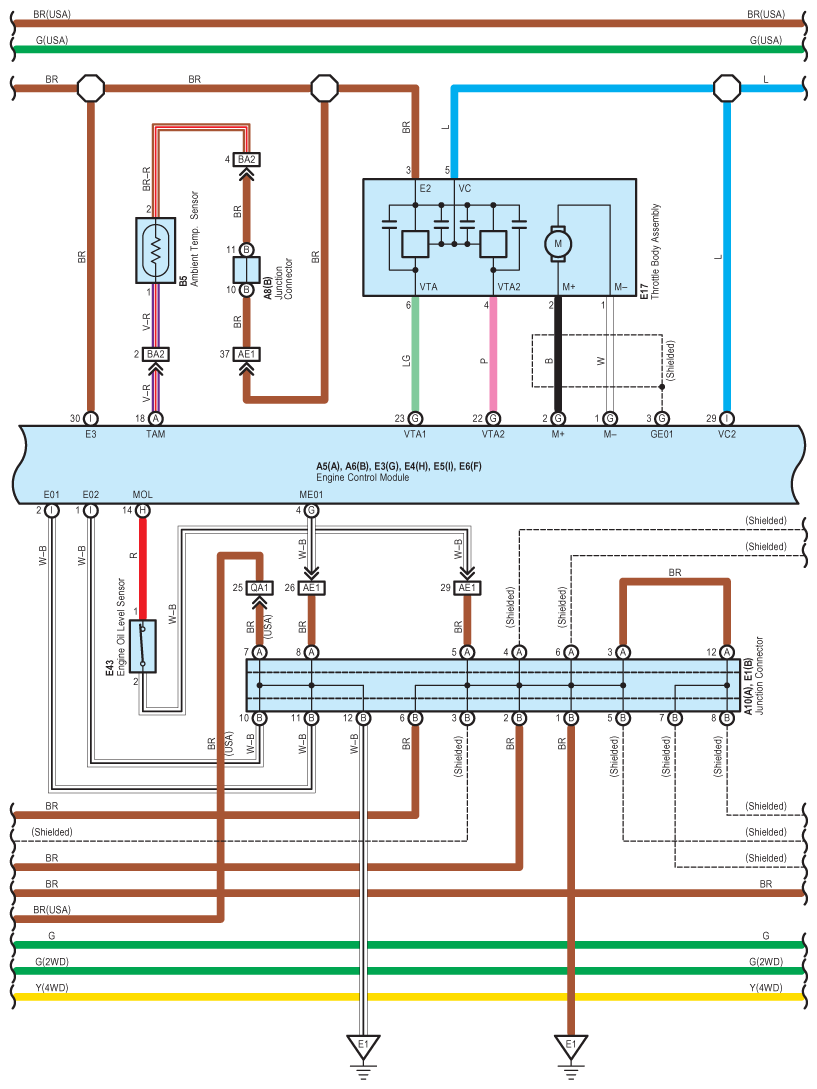

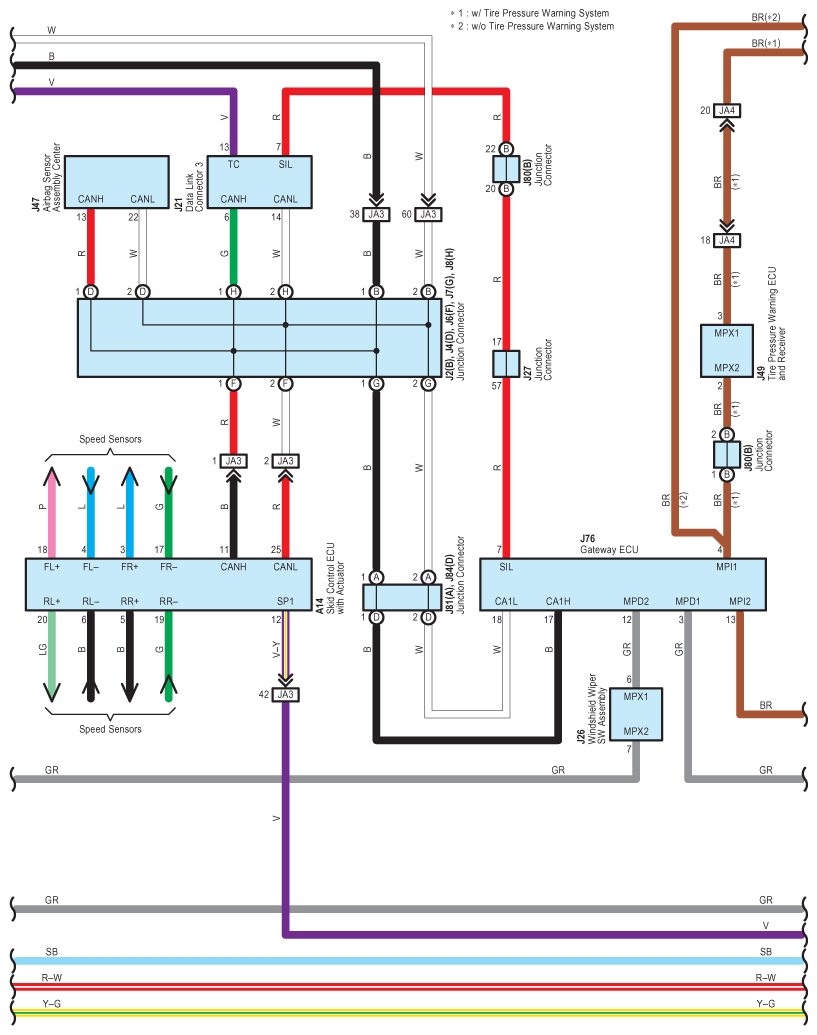

Fig 3: Engine Control For 4GR-FSE - Circuit Diagram (3 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

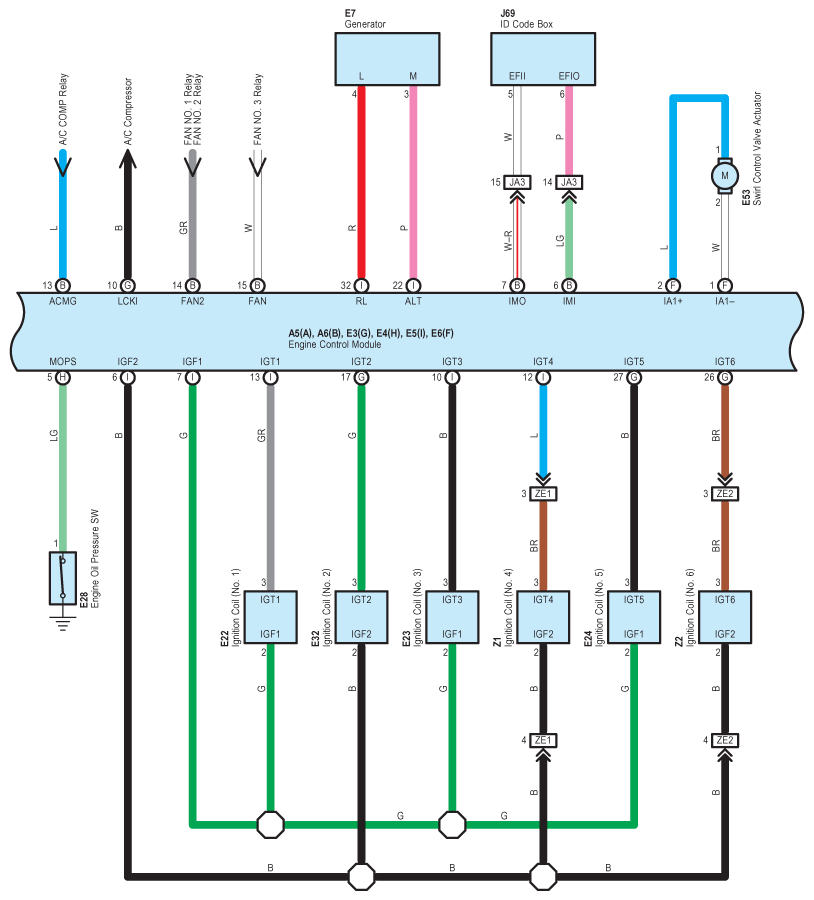

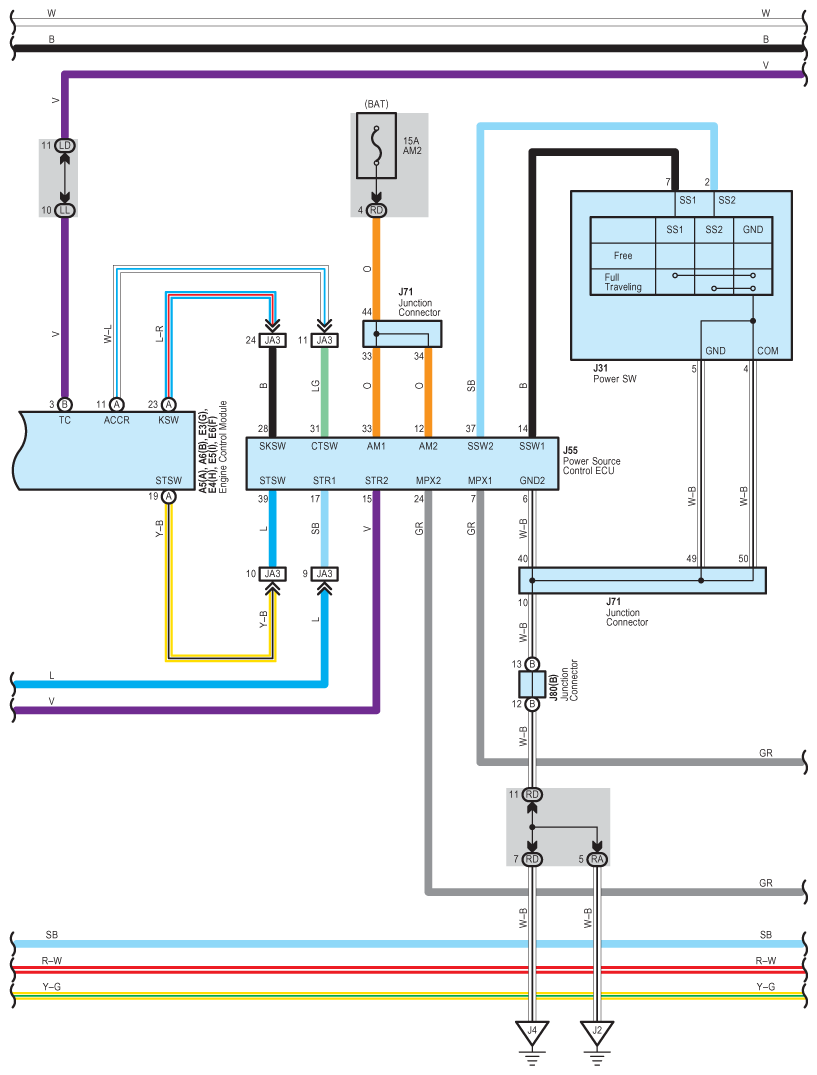

Fig 4: Engine Control For 4GR-FSE - Circuit Diagram (4 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

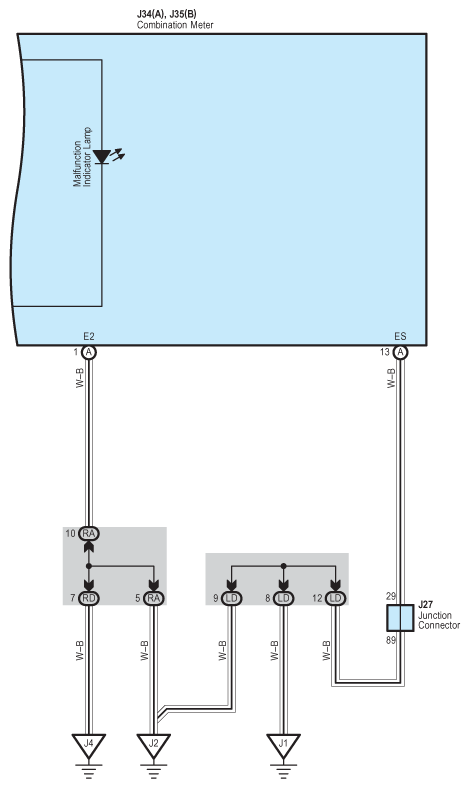

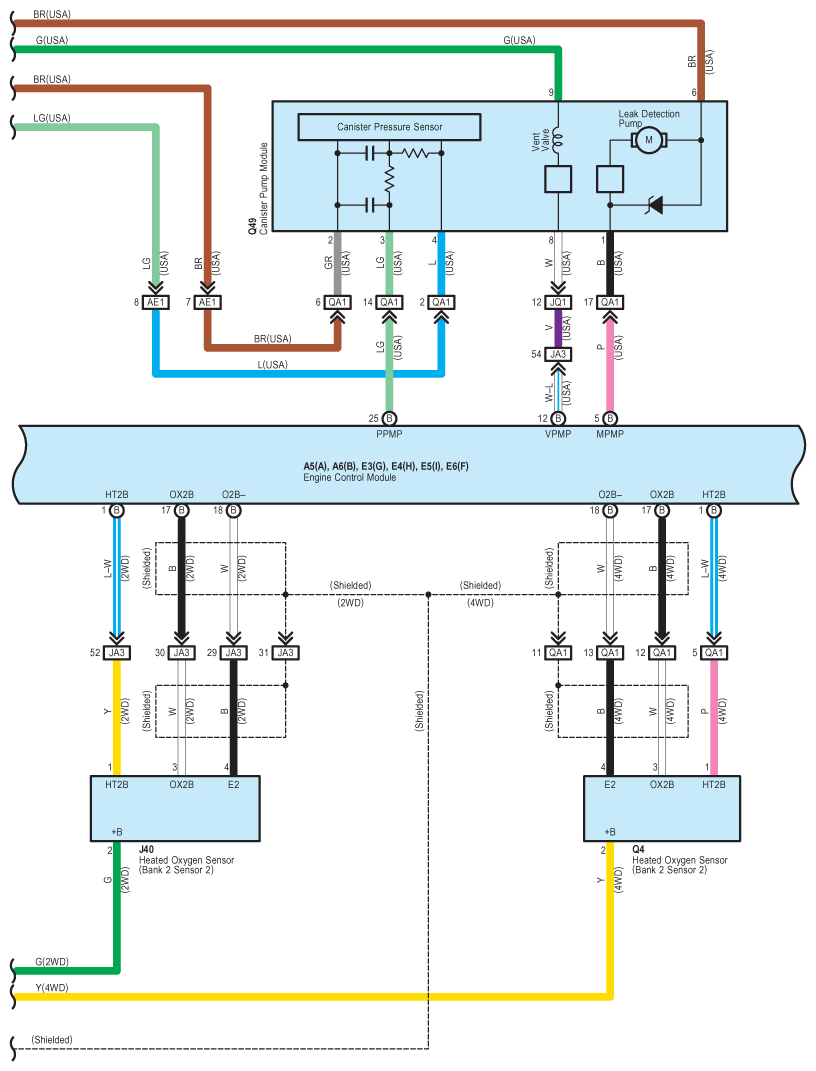

Fig 5: Engine Control For 4GR-FSE - Circuit Diagram (5 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

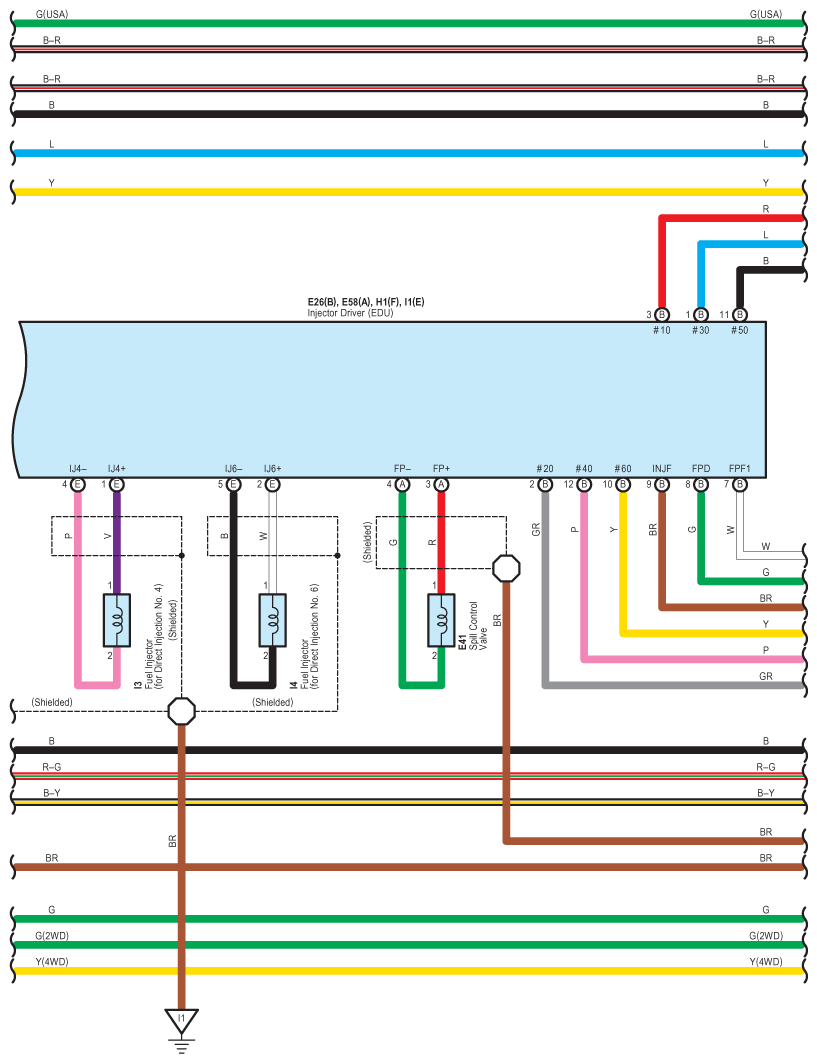

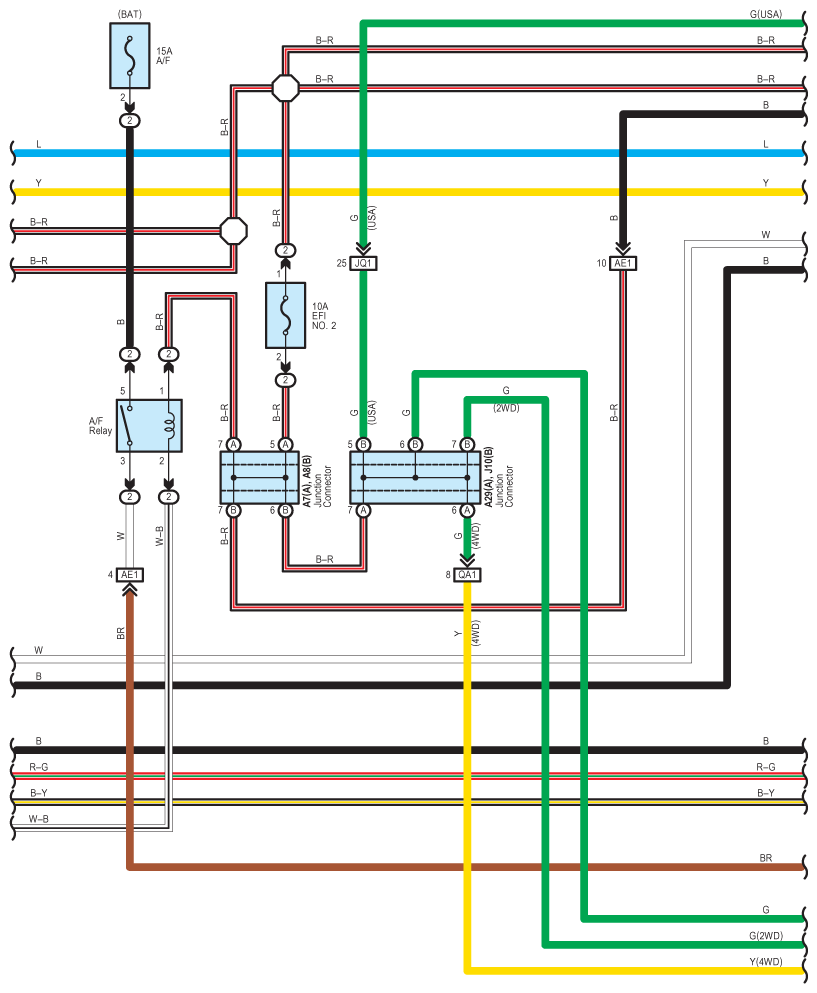

Fig 6: Engine Control For 4GR-FSE - Circuit Diagram (6 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

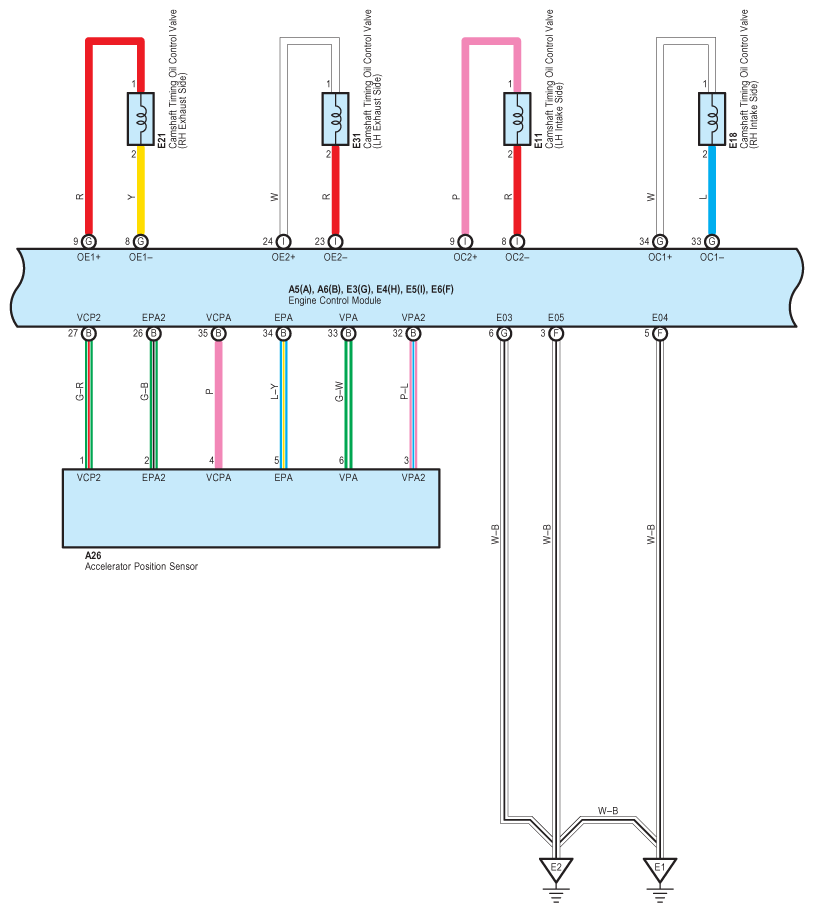

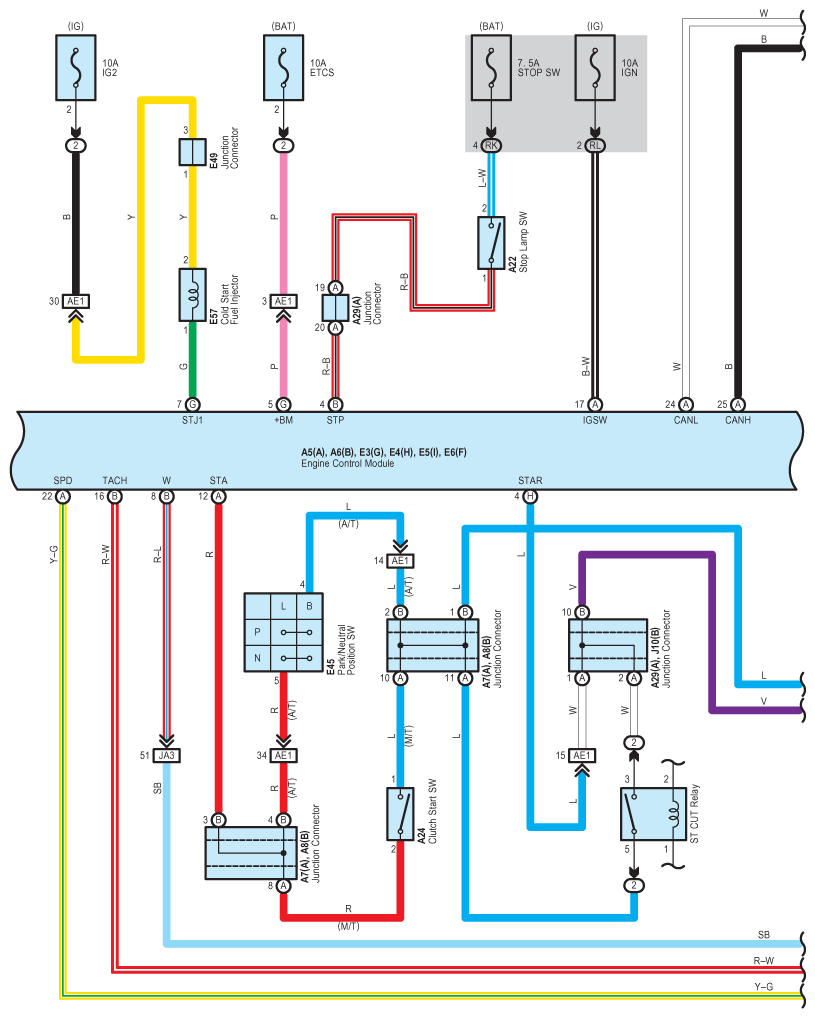

Fig 7: Engine Control For 4GR-FSE - Circuit Diagram (7 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

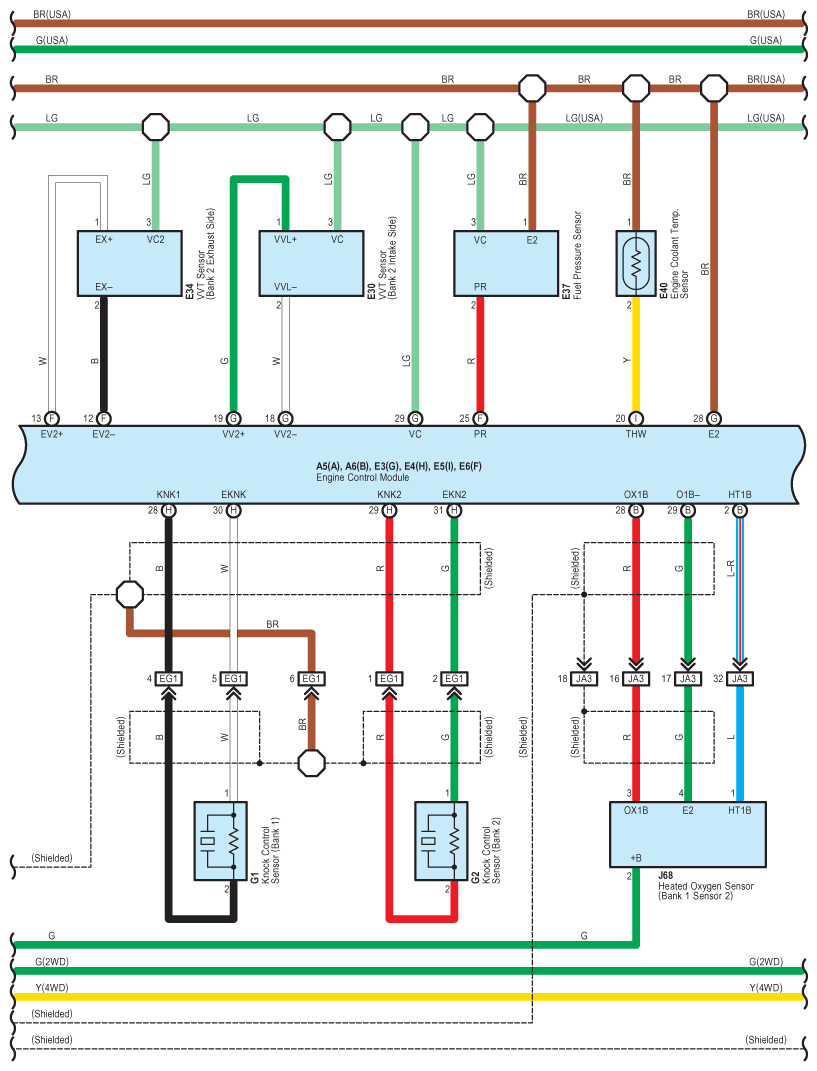

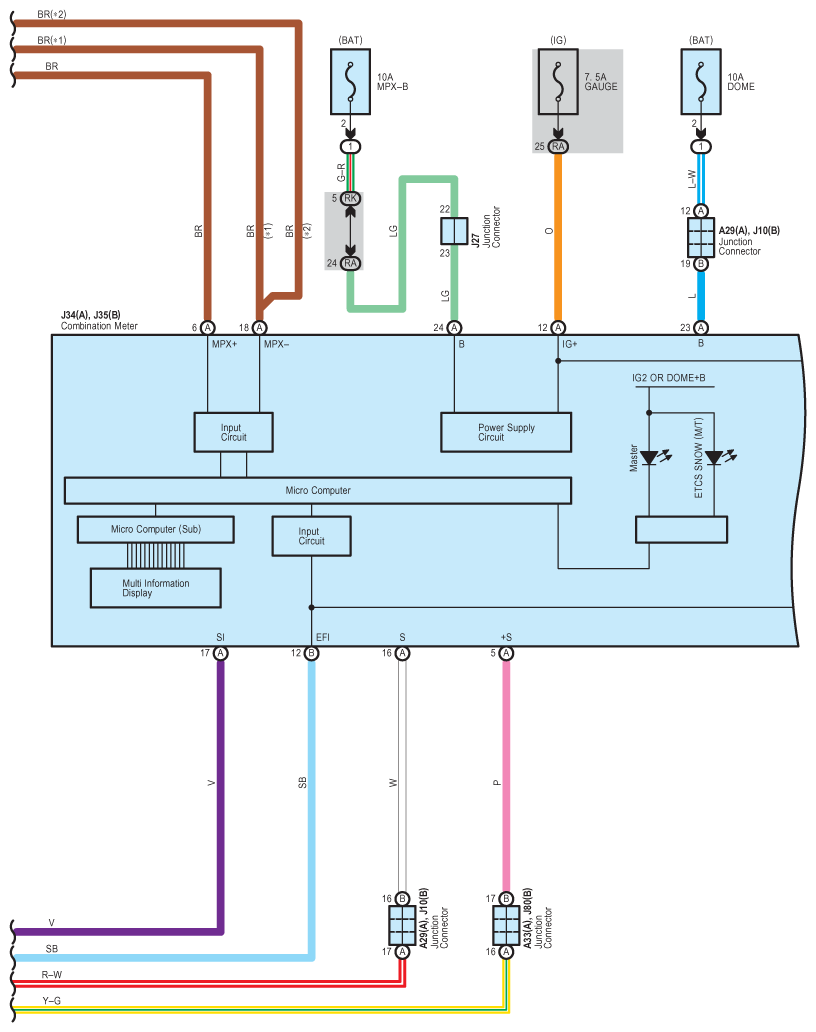

Fig 8: Engine Control For 4GR-FSE - Circuit Diagram (8 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Control For 4GR-FSE - Circuit Diagram (9 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Control For 4GR-FSE - Circuit Diagram (10 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Control For 4GR-FSE - Circuit Diagram (11 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Control For 4GR-FSE - Circuit Diagram (12 Of 17)

Fig 13: Engine Control For 4GR-FSE - Circuit Diagram (13 Of 17)

Fig 14: Engine Control For 4GR-FSE - Circuit Diagram (14 Of 17)

Fig 15: Engine Control For 4GR-FSE - Circuit Diagram (15 Of 17)

Fig 16: Engine Control For 4GR-FSE - Circuit Diagram (16 Of 17)

Fig 17: Engine Control For 4GR-FSE - Circuit Diagram (17 Of 17)
