Power Seat for Driver's Seat with Memory: Notes

Fig 1: Power Seat For Driver's Seat With Memory - Circuit Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

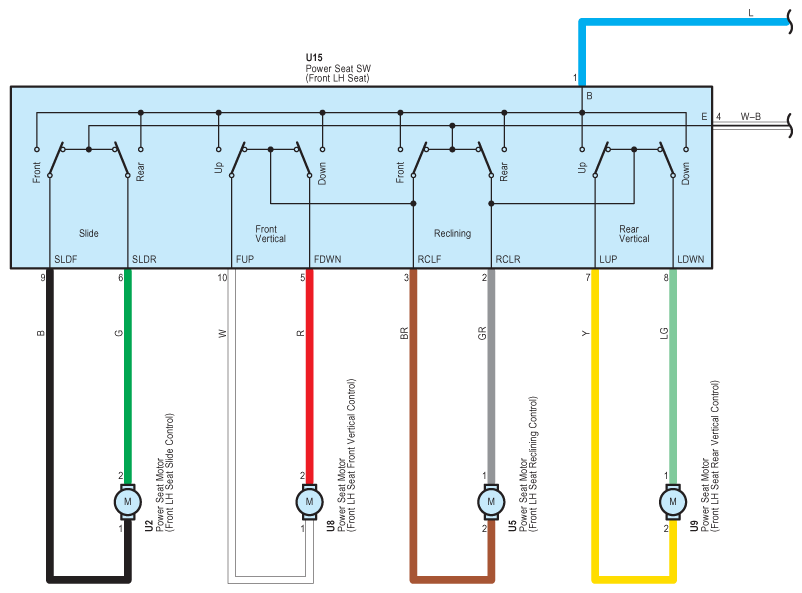

Fig 2: Power Seat For Driver's Seat With Memory - Circuit Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Power Seat For Driver's Seat With Memory - Circuit Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

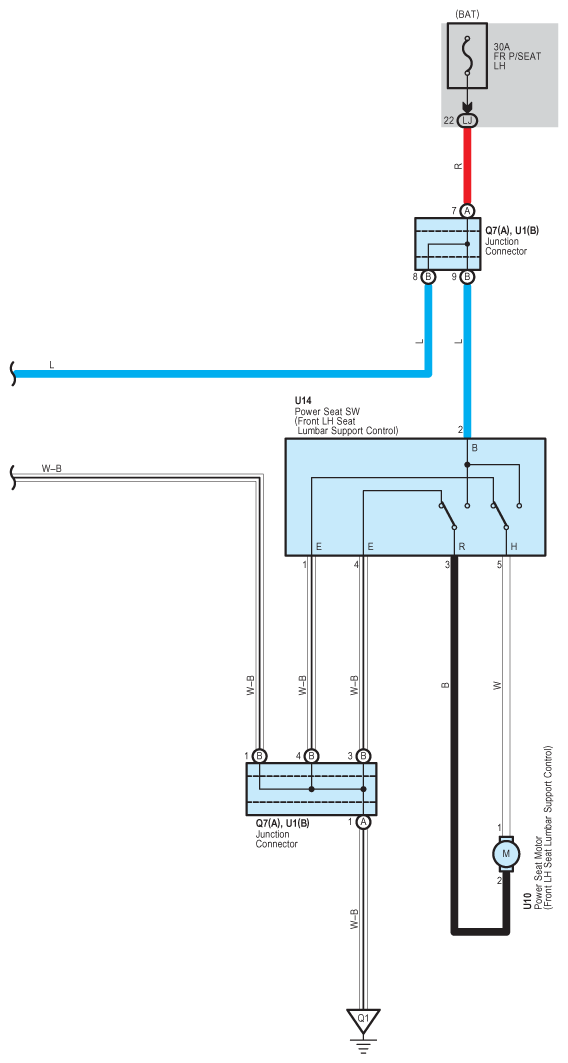

Fig 4: Power Seat For Driver's Seat With Memory - Circuit Diagram (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

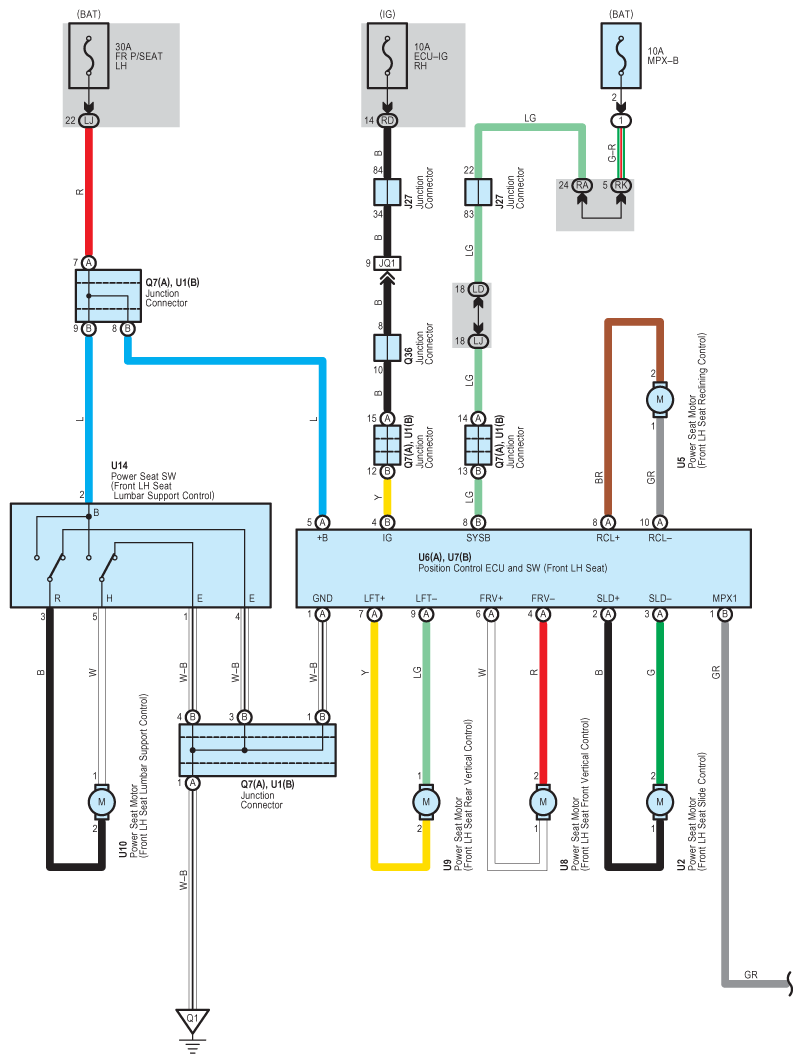

Fig 5: Power Seat For Driver's Seat With Memory - Circuit Diagram (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

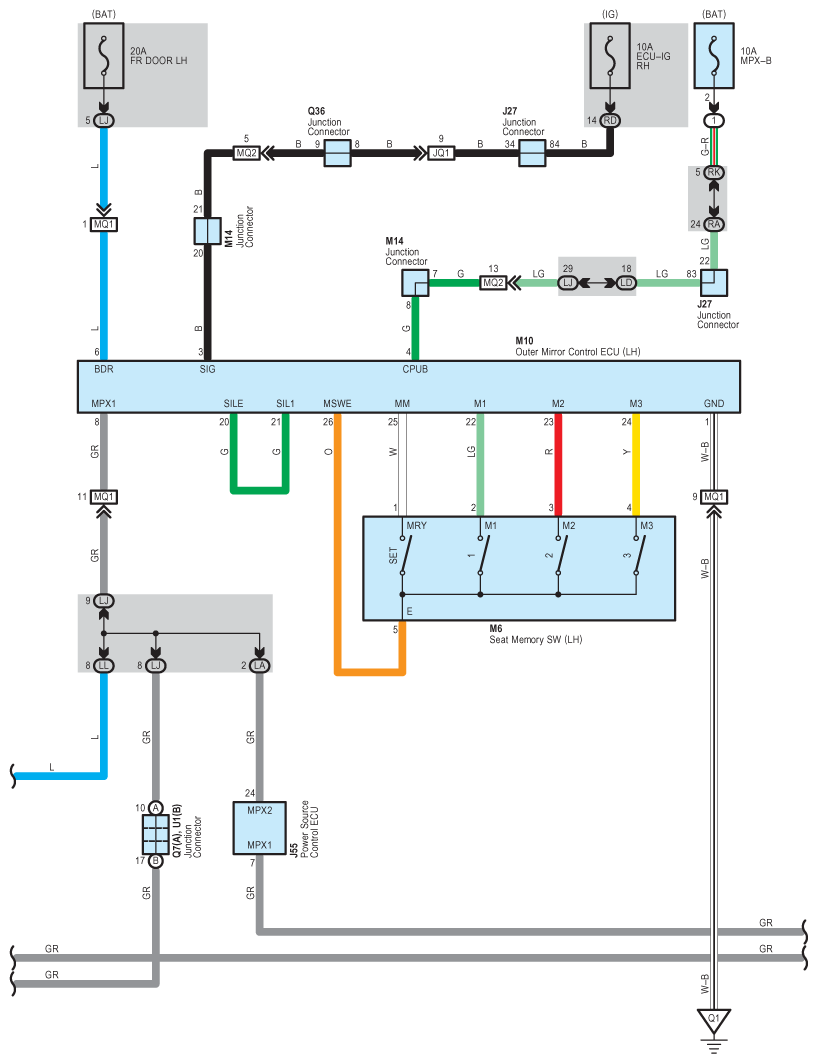

Fig 6: Power Seat For Driver's Seat With Memory - Circuit Diagram (6 Of 6)

Fig 1: Power Seat For Driver's Seat With Memory - Circuit Diagram (1 Of 2)

Fig 2: Power Seat For Driver's Seat With Memory - Circuit Diagram (2 Of 2)
