System Diagram

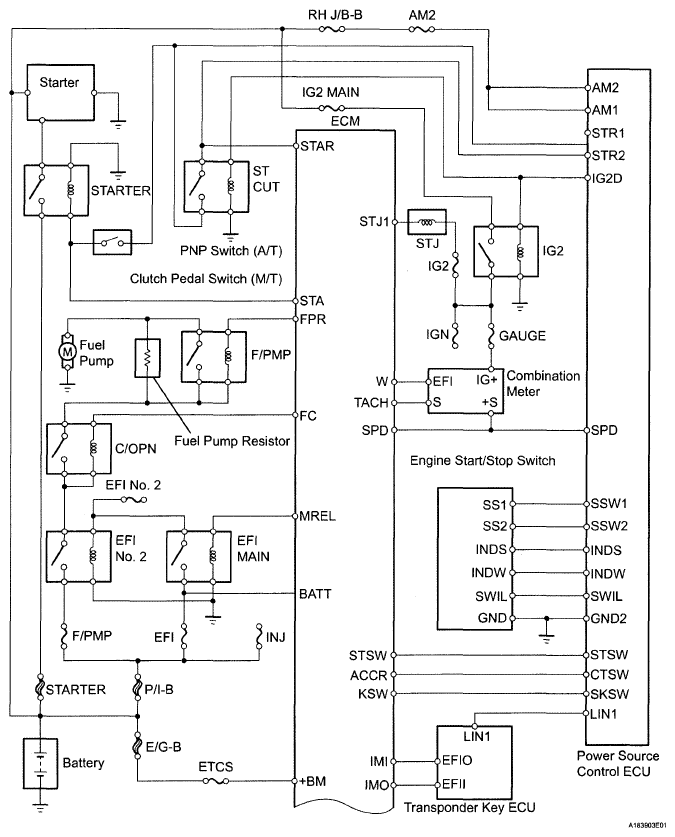

Fig 1: SFI - System Diagram (1 Of 5)
G05822914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

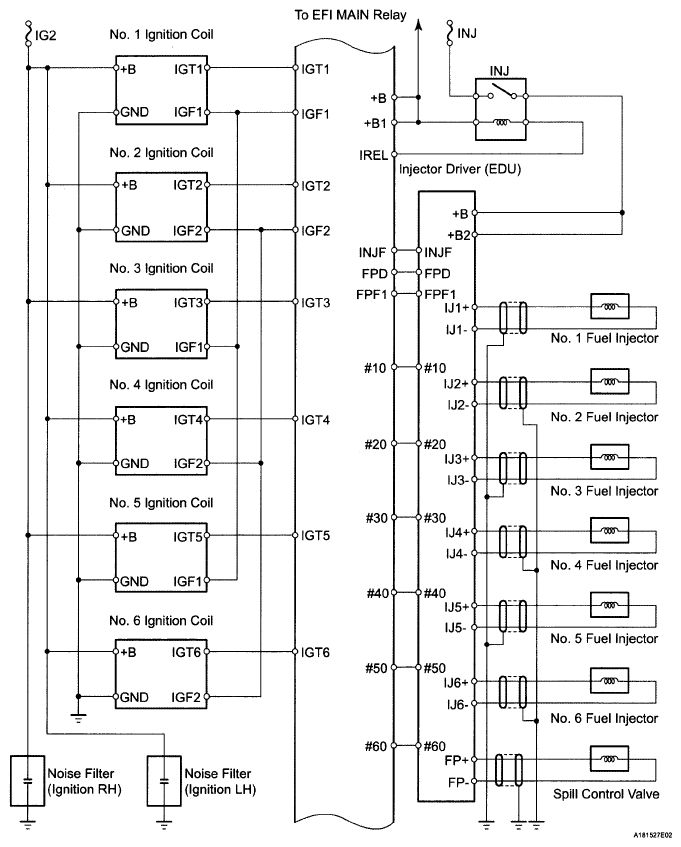

Fig 2: SFI - System Diagram (2 Of 5)
G05822915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

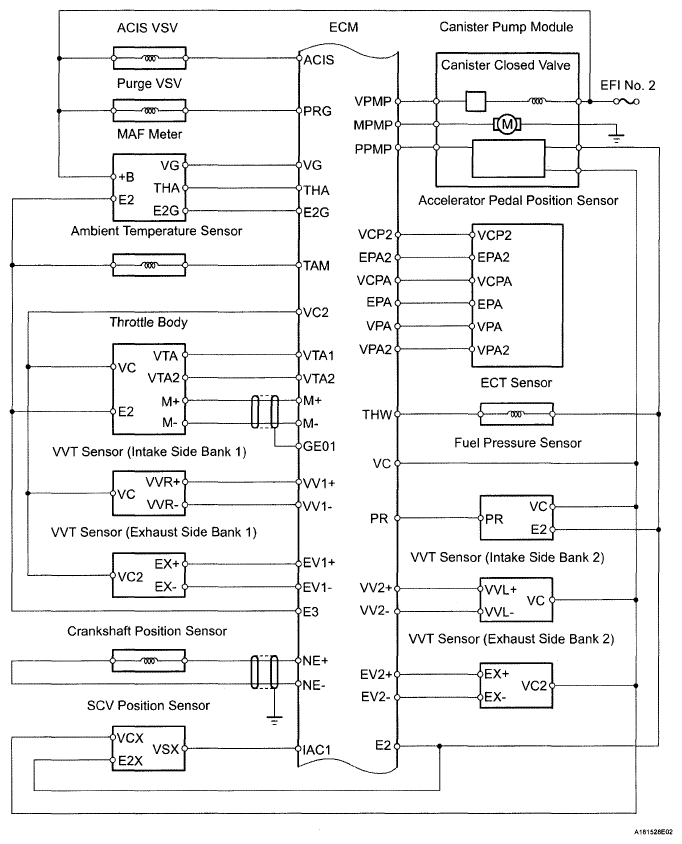

Fig 3: SFI - System Diagram (3 Of 5)
G05822916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

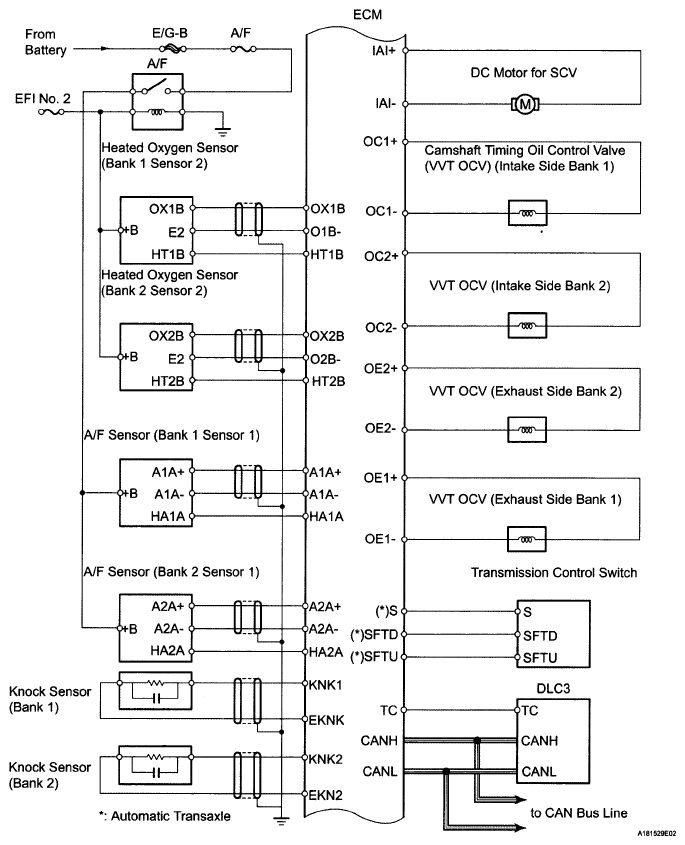

Fig 4: SFI - System Diagram (4 Of 5)
G05822917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

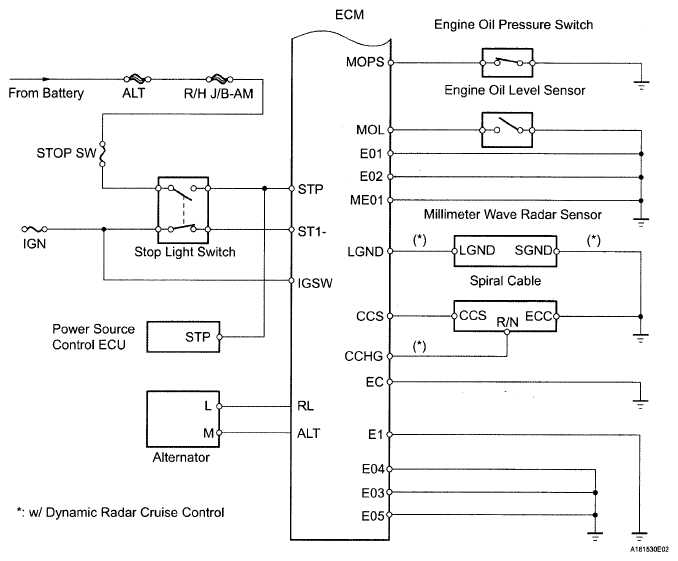

Fig 5: SFI - System Diagram (5 Of 5)
G05822918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
