Navigation Antenna: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

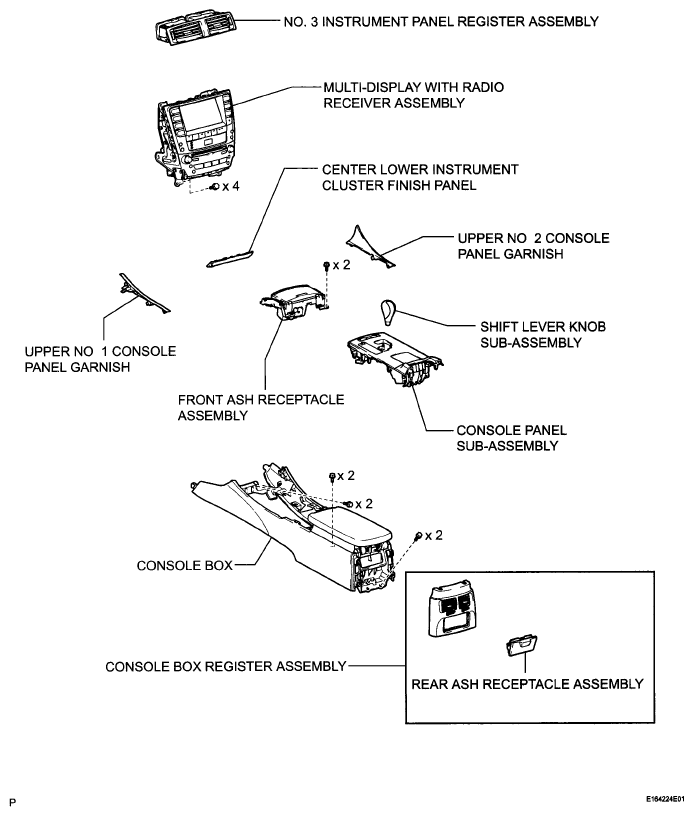

Fig 1: Identifying Navigation Antenna Replacement Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

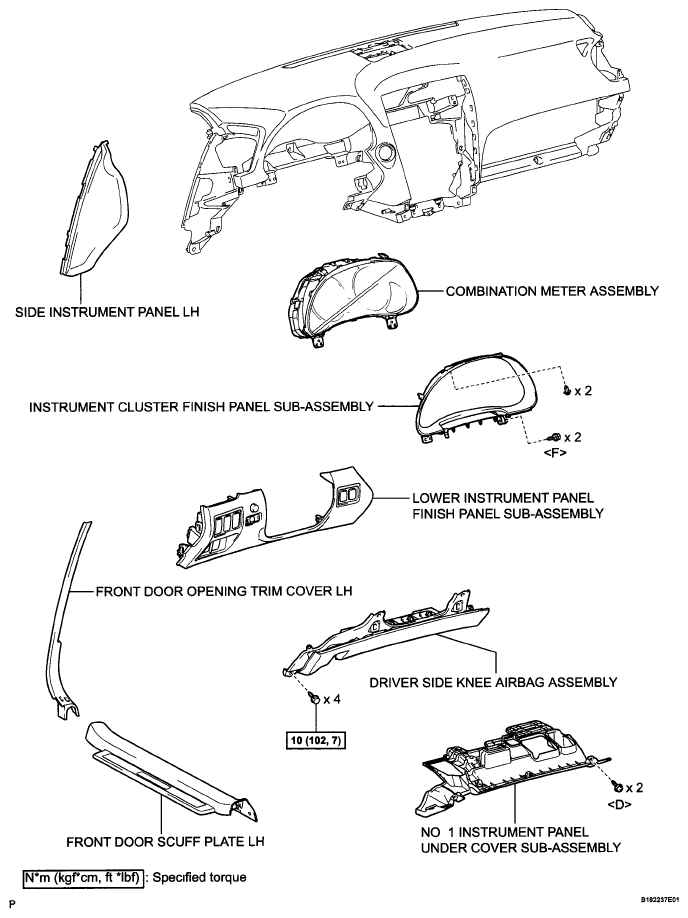

Fig 2: Identifying Navigation Antenna Replacement Components (2 Of 6) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

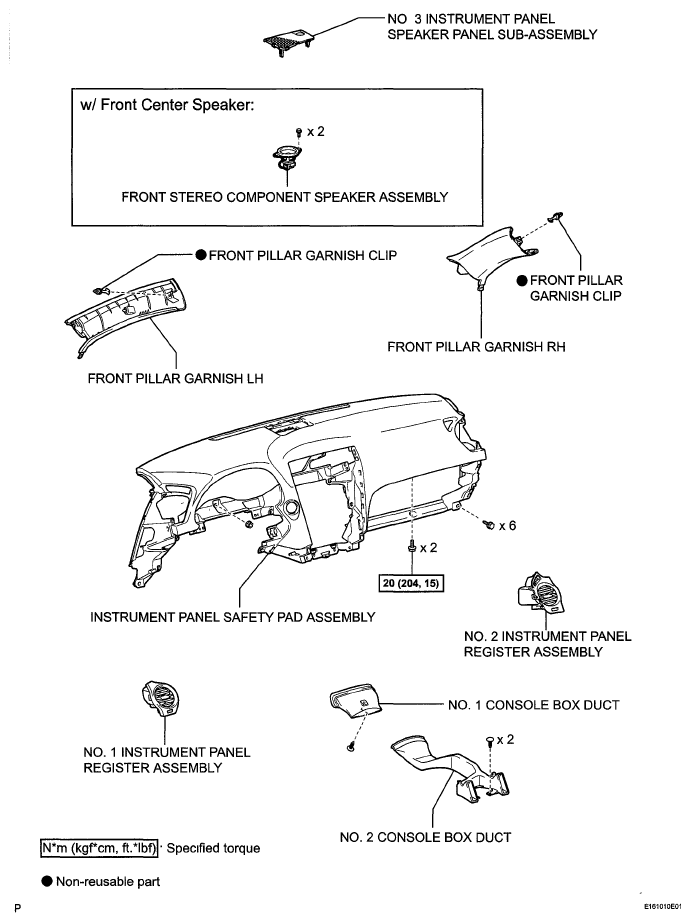

Fig 3: Identifying Navigation Antenna Replacement Components (3 Of 6) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

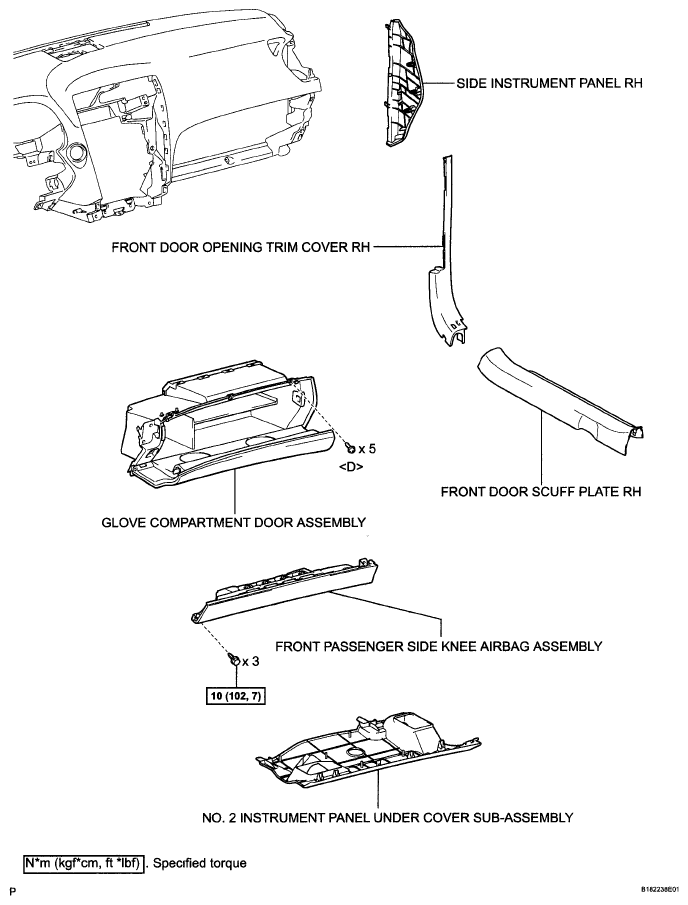

Fig 4: Identifying Navigation Antenna Replacement Components (4 Of 6) with Torque Specifications

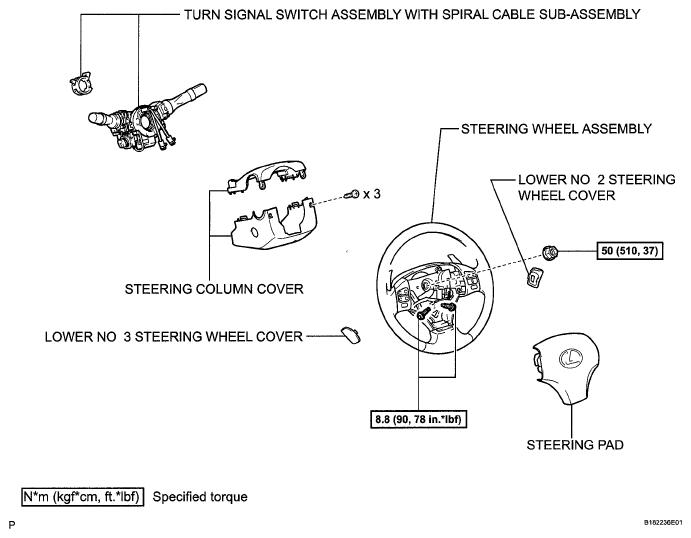

Fig 5: Identifying Navigation Antenna Replacement Components (5 Of 6) with Torque Specifications

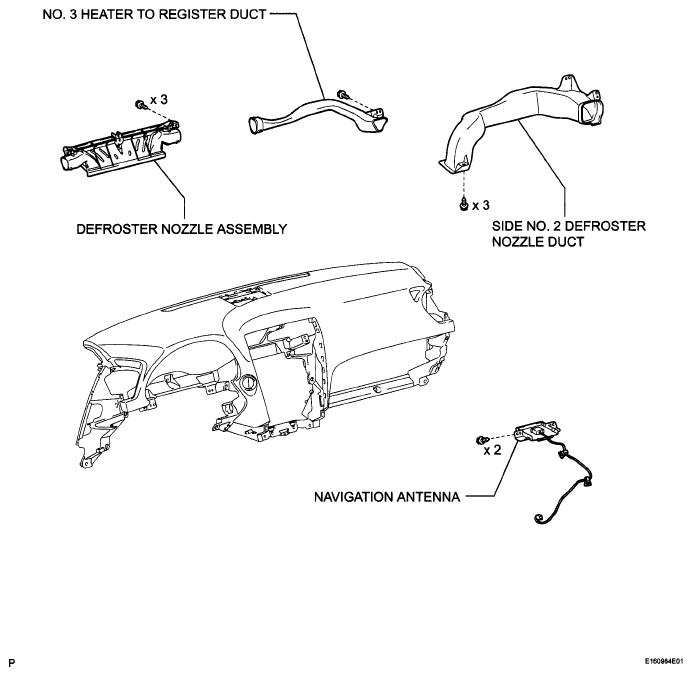

Fig 6: Identifying Navigation Antenna Components (6 Of 6)
