Automatic Transmission Unit: Components

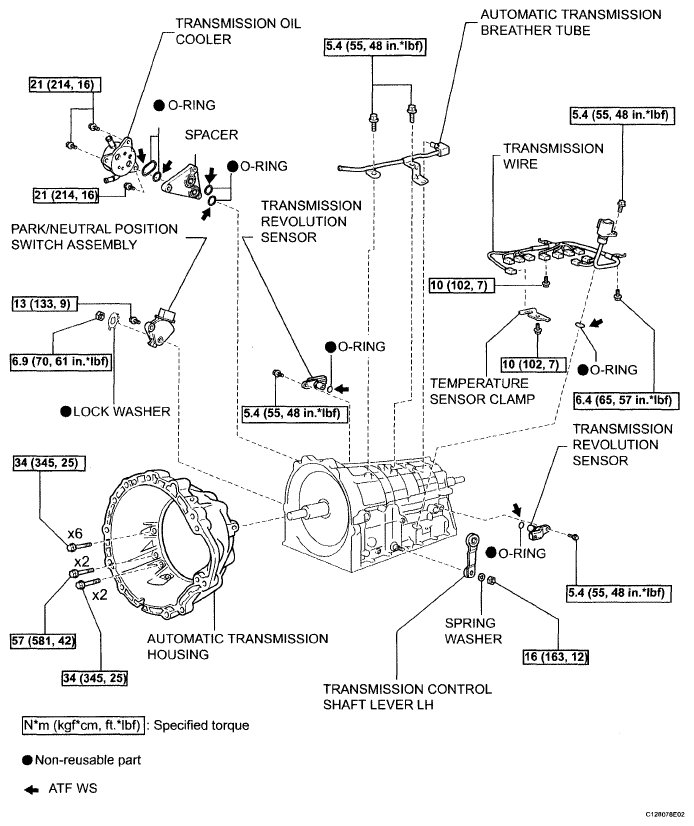

Fig 1: Automatic Transmission Unit Components And Torque Specifications (1 Of 5)
G05829821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

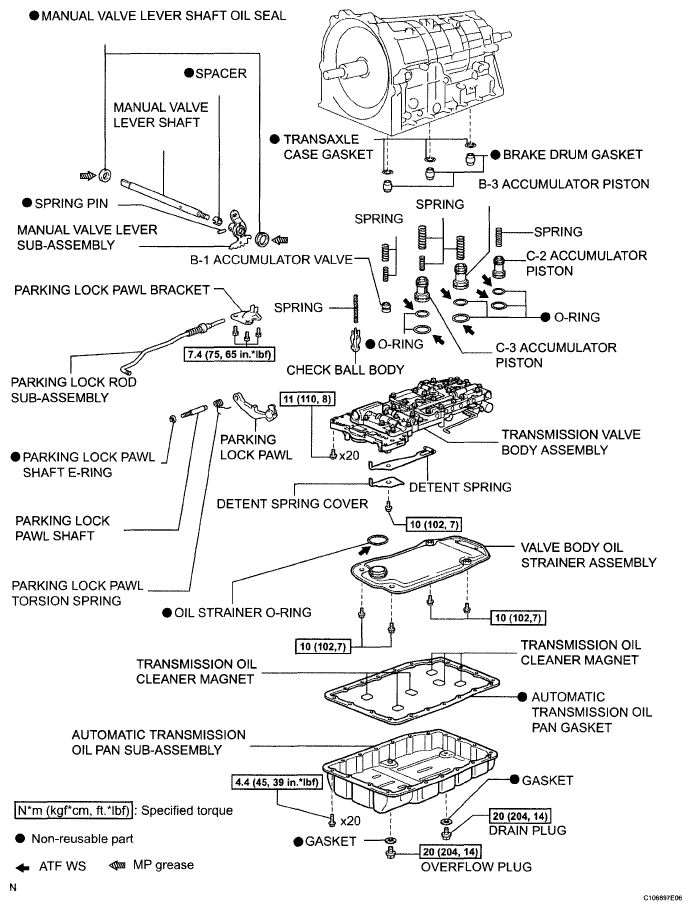

Fig 2: Automatic Transmission Unit Components And Torque Specifications (2 Of 5)
G05829822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

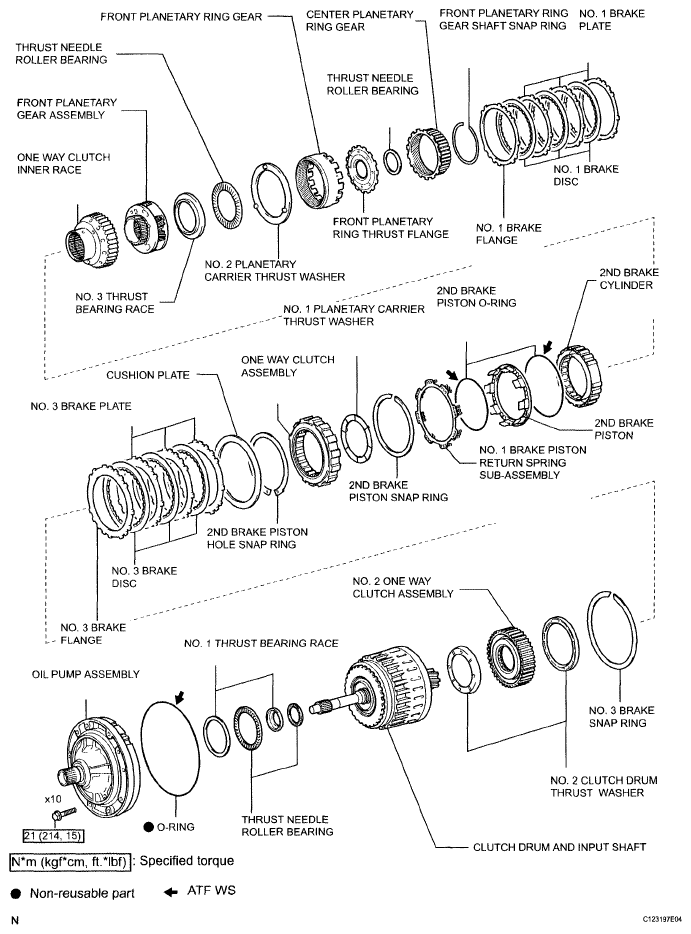

Fig 3: Automatic Transmission Unit Components And Torque Specifications (3 Of 5)
G05829823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

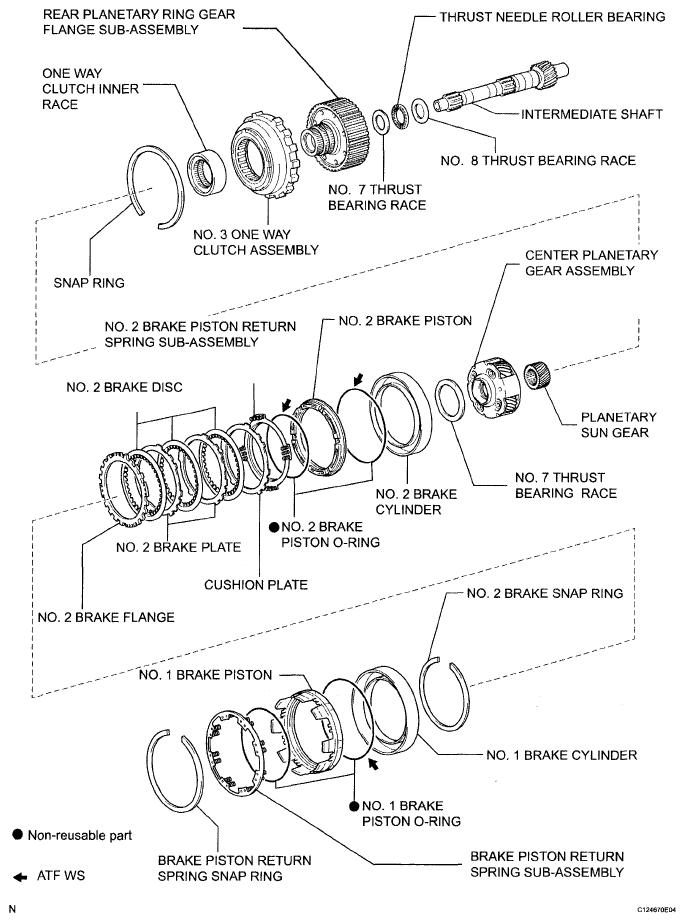

Fig 4: Identifying Automatic Transmission Unit Components (4 Of 5)
G05829824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

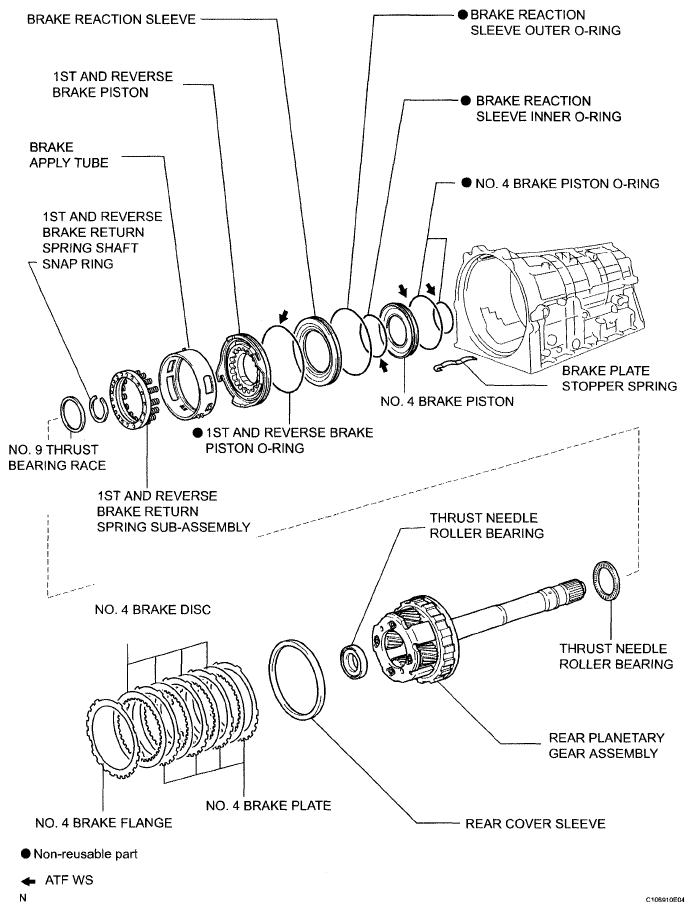

Fig 5: Identifying Automatic Transmission Unit Components (5 Of 5)
G05829825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
