Installation

CRUISE CONTROL: MILLIMETER WAVE RADAR SENSOR:

INSTALLATION

1. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY

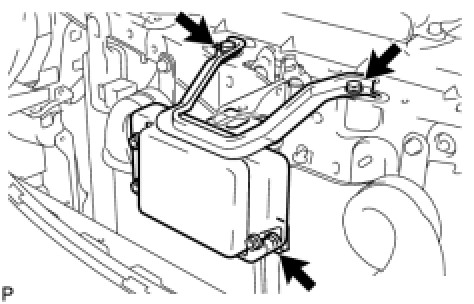

(a) Install the millimeter wave radar sensor with the 3 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
(b) Connect the connector.
2. INSTALL FRONT BUMPER ASSEMBLY
3. INSTALL COOL AIR INTAKE DUCT SEAL
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. ADJUST MILLIMETER WAVE RADAR SENSOR Adjustments

6. ADJUST FOG LIGHT AIM Adjustments

7. PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal Repair Instruction - Initialization.
