Remote Control Mirror without Memory: Notes

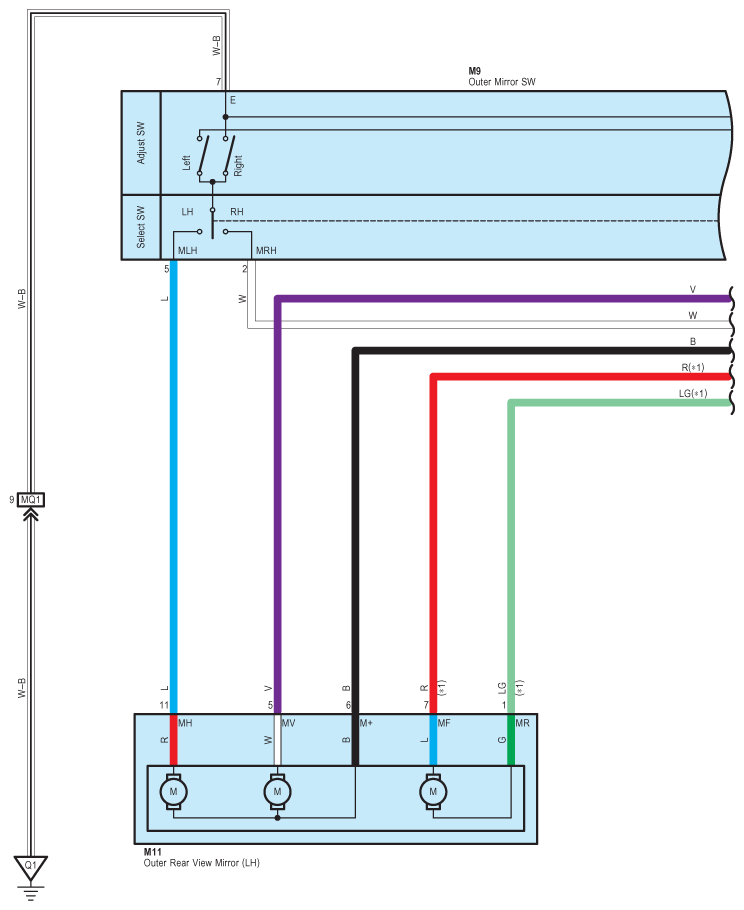

Fig 1: Remote Control Mirror Without Memory - Circuit Diagram (1 Of 2)
G07591919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

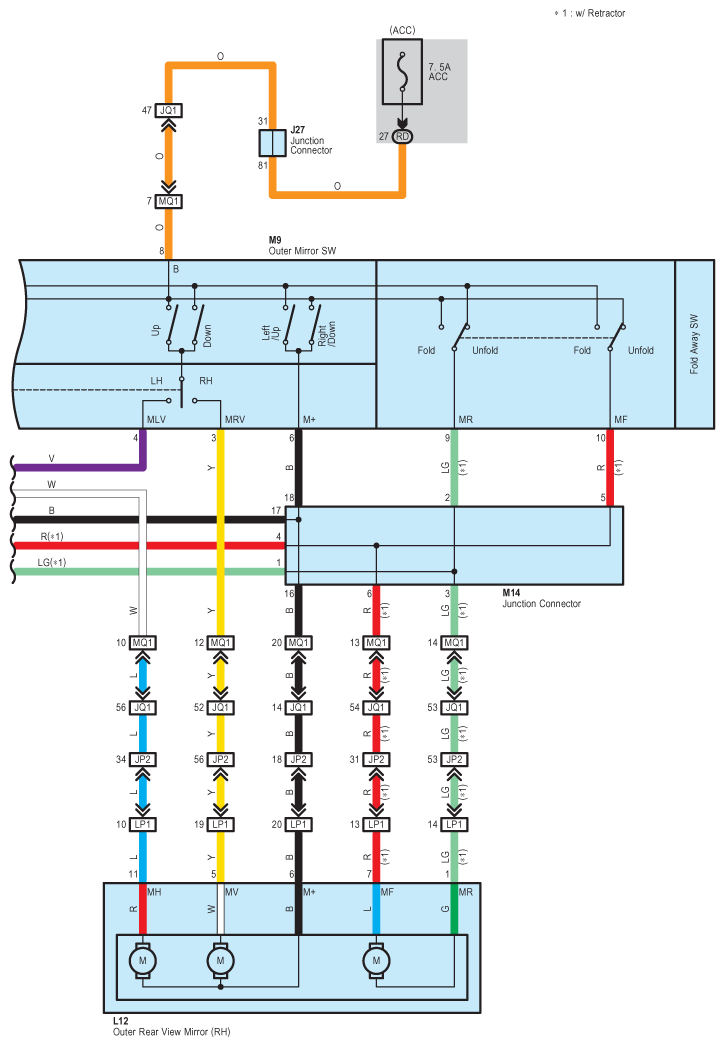

Fig 2: Remote Control Mirror Without Memory - Circuit Diagram (2 Of 2)
G07591920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
