Inspection Procedure

NOTE: The vehicle is equipped with an SRS (Supplemental Restraint System) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precautionary notice for the Supplemental Restraint System (See PRECAUTION ).

INSPECT RADIO RECEIVER

Disconnect the radio receiver connector J63.

Measure the resistance according to the value(s) in the table below.

Standard resistance

RESISTANCE REFERENCE

Tester connection	Condition	Specified condition
SW1 - SWG	No switch is pushed	Approx. 100 kΩ
SW1 - SWG	SEEK+ switch: push	Approx. 0 Ω
SW1 - SWG	SEEK- switch: push	Approx. 0.3 kΩ
SW1 - SWG	VOL+ switch: push	Approx. 1 kΩ
SW1 - SWG	VOL- switch: push	Approx. 3.2 kΩ
SW2 - SWG	No switch is pushed	Approx. 100 kΩ
SW2 - SWG	MODE switch: push	Approx. 0 Ω

Fig 1: Identifying Radio Receiver Connector J63

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Go to step 2

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

INSPECT STEERING PAD SWITCH ASSEMBLY

Disconnect the steering pad switch assembly connector k1.

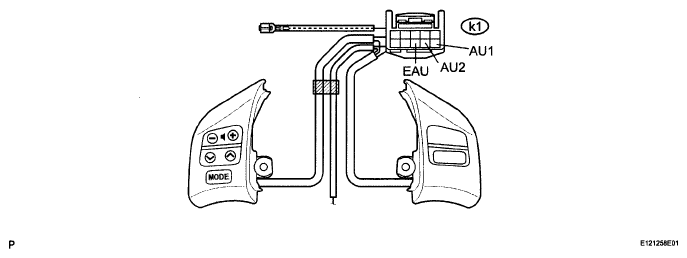

Fig 2: Identifying Steering Pad Switch Assembly Connector k1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the values in the table below.

Standard resistance

RESISTANCE REFERENCE

Tester connection	Condition	Specified condition
AU1-EAU	No switch Is pushed	Approx. 100 kΩ
AU1-EAU	SEEK+ switch: push	Approx. 0 Ω
AU1-EAU	SEEK-switch: push	Approx. 0.3 kΩ
AU1-EAU	VOL+ switch: push	Approx. 1 kΩ
AU1-EAU	VOL- switch: push	Approx. 3.2 kΩ
AU2-EAU	No switch is pushed	Approx. 100 kΩ
AU2-EAU	MODE switch: push	Approx. 0 Ω

NG: REPLACE STEERING PAD SWITCH ASSEMBLY

OK: Go to next step

INSPECT SPIRAL CABLE

Disconnect the steering pad switch assembly and spiral cable connectors.

Measure the resistance according to the value(s) in the table below.

Standard resistance

RESISTANCE REFERENCE

Tester connection	Spiral Cable Position	Specified condition
EAU - EAU	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
AU1-AU1	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
AU2-AU2	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right

NOTE: The spiral cable is an important part of the SRS airbag system. Incorrect removal or installation of the spiral cable may prevent the airbag from deploying. Be sure to read the article shown in the brackets.

HINT:

Removal (See REMOVAL )
Installation (See INSTALLATION )

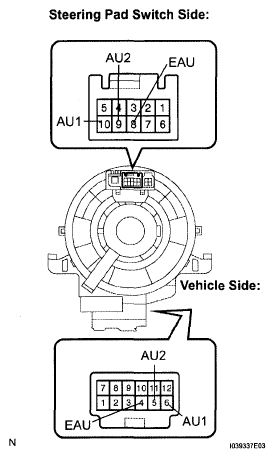

Fig 3: Identifying Steering Pad Switch Assembly And Spiral Cable Connectors

NG: REPLACE SPIRAL CABLE

OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL CABLE - RADIO RECEIVER)
