Inspection Procedure

1. Disconnect the stereo component amplifier connectors.
2. Measure the resistance according to the values in the table below.

   Standard resistance

   RESISTANCE REFERENCE



   Tester connection	Condition	Specified condition
   GND - Body ground	Always	Below 1 Ω
   GND2 - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the values in the table below.

   Standard voltage

   VOLTAGE SPECIFICATION



   Tester connection	Condition	Specified condition
   +B - GND	Always	10 to 14 V
   +B2 - GND	Always	10 to 14 V
   ACC - GND	Engine switch on (ACC)	10 to 14 V

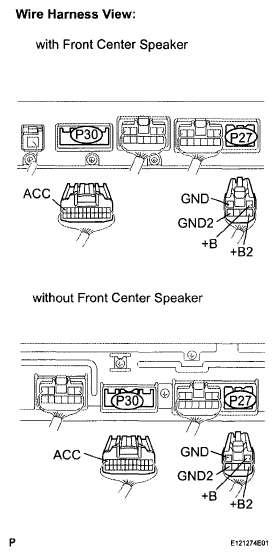

Fig 1: Identifying Stereo Component Amplifier Connector Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
