Radio Receiver: Installation

  1. INSTALL RADIO RECEIVER ASSEMBLY (w/o Navigation System)
    1. Install the radio receiver assembly as shown in the illustration.
    Fig 1: Installing Radio Receiver Assembly
    G05828223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 RADIO BRACKET (w/o Navigation System)
    1. Install the radio No. 2 bracket with the 6 bolts.
    Fig 2: Locating Radio No. 2 Bracket Bolts
    G05753402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 RADIO BRACKET (w/o Navigation System)
    1. Install the radio No. 1 bracket with the 6 bolts.
  4. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)
    1. Connect each connector.
      Fig 3: Locating Radio No. 1 Bracket Bolts
      G05753401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the integration control panel w/ radio receiver assembly with the 4 bolts.
    Fig 4: Locating Integration Control Panel Bolts
    G05753400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL RADIO RECEIVER ASSEMBLY (w/ Navigation System)
    1. Install the radio receiver assembly as shown in the illustration.
    Fig 5: Installing Radio Receiver Assembly
    G05828227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 2 RADIO BRACKET (w/ Navigation System)
    1. Install the radio No. 2 bracket with the 7 bolts.
    Fig 6: Locating Radio No. 2 Bracket Bolts
    G05753407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 1 RADIO BRACKET (w/ Navigation System)
    1. Install the radio No. 1 bracket with the 7 bolts.
      Fig 7: Locating Radio No. 1 Bracket And Bolts
      G05753406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the connector clamp.
  8. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)
    1. Connect each connector.
      Fig 8: Identifying No. 1 Radio Bracket Connector Clamp
      G05828219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the multi-display w/ radio receiver assembly with the 4 bolts.

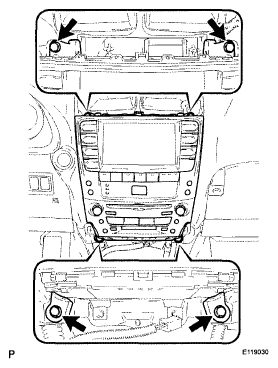

      3. Fig 9: Locating Radio Receiver Assembly Bolts
      G05828218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  (See INSTALLATION )
  10. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  11. INSTALL CONSOLE BOX  (See INSTALLATION )
  12. INSTALL CONSOLE BOX REGISTER ASSEMBLY  (See INSTALLATION )
  13. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY  (See INSTALLATION )
  14. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  (See INSTALLATION )
  15. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  (See INSTALLATION )
  16. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)  (See INSTALLATION )
  17. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)  (See INSTALLATION )
  18. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)  (See INSTALLATION )
  19. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  20. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
  21. ADJUST CLOCK
