Inspection Procedure

1. Disconnect the radio receiver connectors.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE REFERENCE



   Tester Connection	Condition	Specified Condition
   ATX+ (J66-S) - ATX- (J66-15)	Always	60 to 80 Ω
   TX+ (J63-9) - TX- (J63-10)	Always	60 to 80 Ω

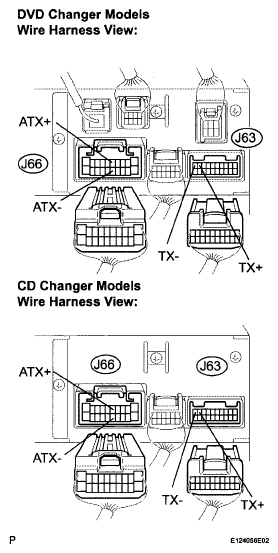

Fig 1: Identifying Radio Receiver Connector Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE RADIO RECEIVER

OK: Go to next step

HINT:

For details of the connectors, refer to "TERMINALS OF ECU " .

1. Referring to the AVC-LAN wiring diagram below, check all AVC-LAN circuits.
   1. Disconnect all connectors in all AVC-LAN circuits.
   2. Check for an open or short in all AVC-LAN circuits.

      OK:

      There is no open or short circuit.

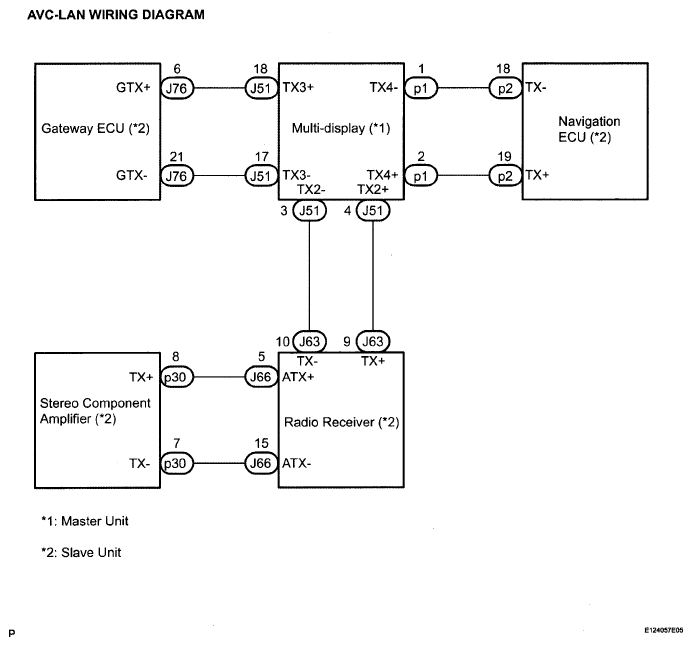

      Fig 2: AVC-LAN - Wiring Diagram

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
