Automatic Glare-Resistant EC Mirror and Compass: Notes

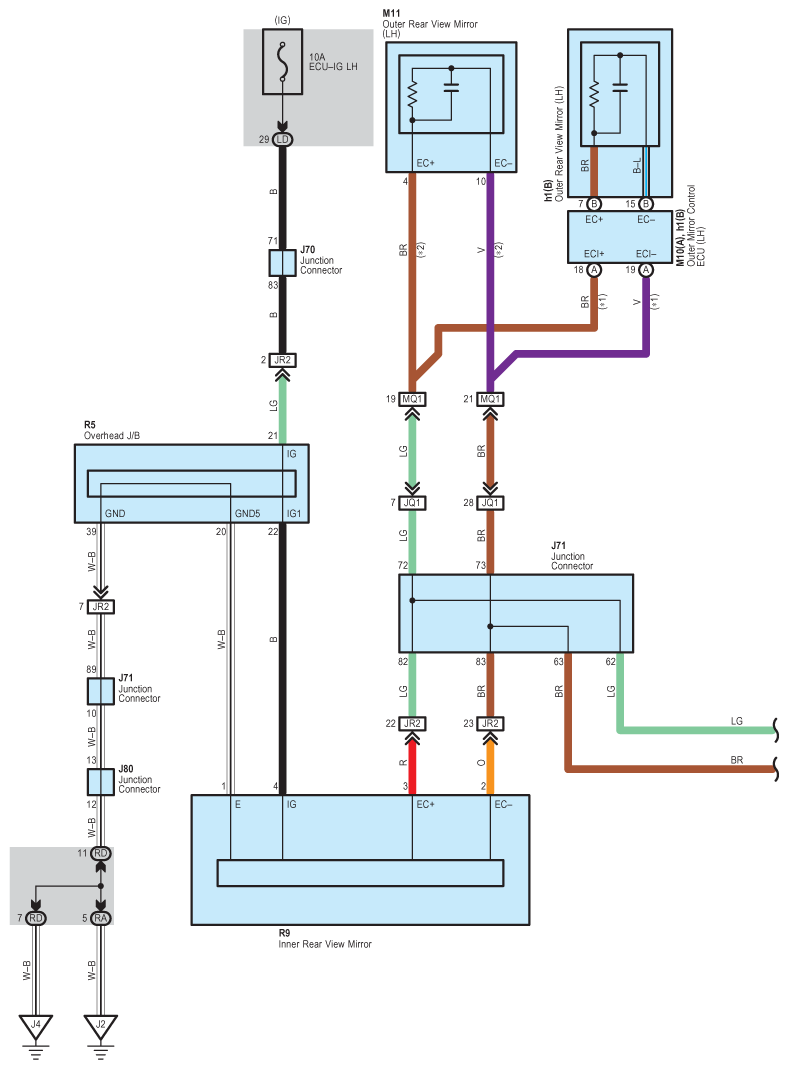

Fig 1: Automatic Glare-Resistant EC Mirror And Compass - Circuit Diagram (1 Of 2)
G07591906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

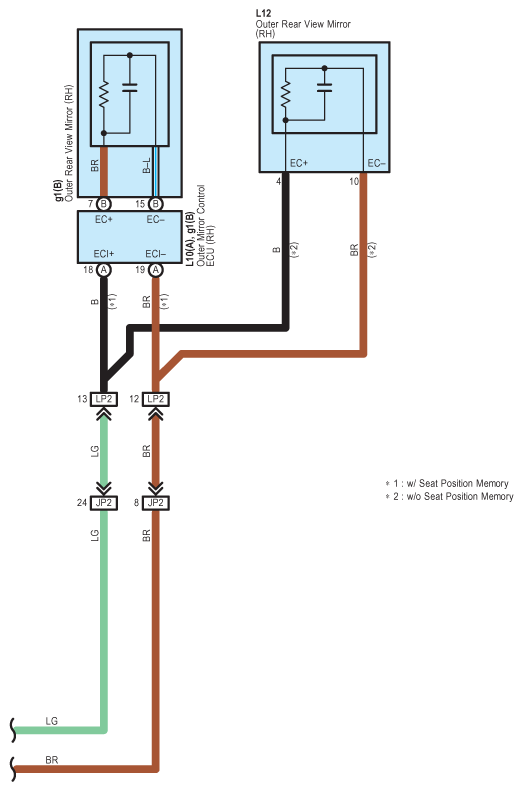

Fig 2: Automatic Glare-Resistant EC Mirror And Compass - Circuit Diagram (2 Of 2)
G07591907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
