Terminals Of Ecu

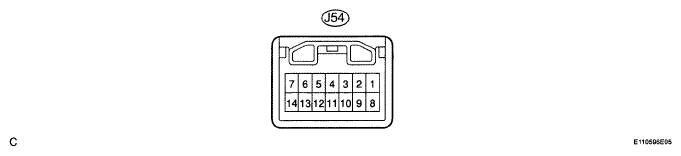

- Clock Assembly (without Navigation System) TERMINAL DESCRIPTION
Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition ILL+ (J54-3) - Body ground G - Body ground Illumination Signal Combination switch OFF Below 1 V Combination switch Head 10 to 14 V IG+ (J54-4) - Body ground B - Body ground Ignition Switch Signal Engine switch off Below 1 V Engine switch on (IG) 10 to 14 V ACC (J54-5) - Body ground O - Body ground Ignition Switch Signal Engine switch off Below 1 V Engine switch on (IG) 10 to 14 V E (J54-8) - Body ground W-B - Body ground Ground Always Below 1 V ILL-(J54-10)-Body ground LG - Body ground Illumination Signal Engine switch on (IG), combination switch Head, and light control rheostat position MAX. Pulse generation (See awaveform) B (J54-14) - Body ground LG - Body ground Battery Always 10 to 14 V - Clock Assembly (with Navigation System) TERMINAL DESCRIPTION
Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition E (J53-2) - Body ground W-B - Body ground Ground Always Below 1 V ILL+ (J53-4) - Body ground G - Body ground Illumination Signal Combination switch OFF Below 1 V Combination switch Head 10 to 14 V ACC (J53-5) - Body ground W-B - Body ground Ignition Switch Signal Engine switch off Below 1 V Engine switch on (IG) 10 to 14 V +B (J53-6) - Body ground BR - Body ground Battery Always 10 to 14 V ILL-(J53-10)-Body ground W - Body ground Illumination Signal Engine switch on (IG), combination switch Head, and light control rheostat position MAX. Pulse generation (See awaveform) IG (J53-11) - Body ground B - Body ground Ignition Switch Signal Engine switch off Below 1 V Engine switch on (IG) 10 to 14 V OK:
WAVEFORM (REFERENCE)Item Condition Tool setting 5 V/DIV., 200 ms./DIV. Vehicle condition Engine switch on (IG), light control rheostat is in the MID. position.
