Camshaft Timing Oil Control Valve Assembly: Components

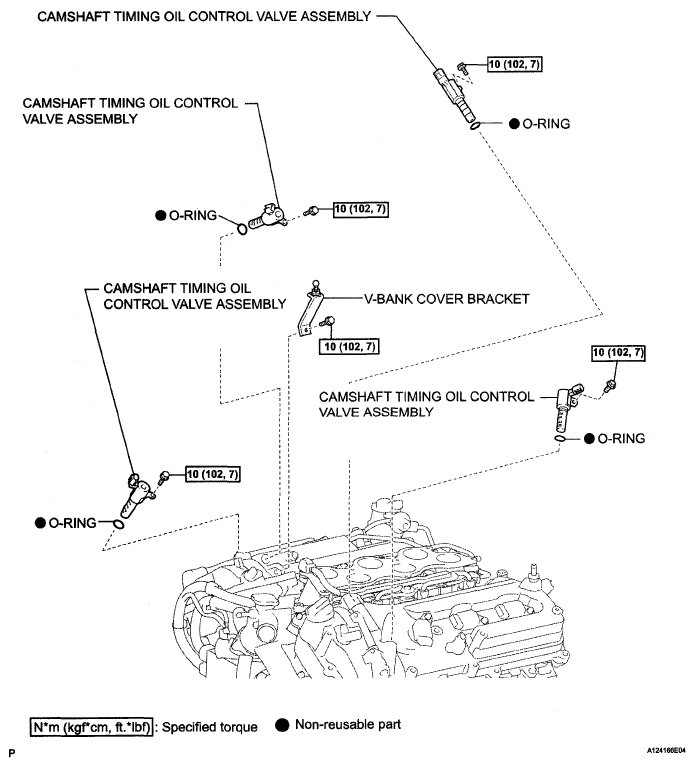

Fig 1: Identifying Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specification (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specification (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
