Crankshaft Position Sensor: Components

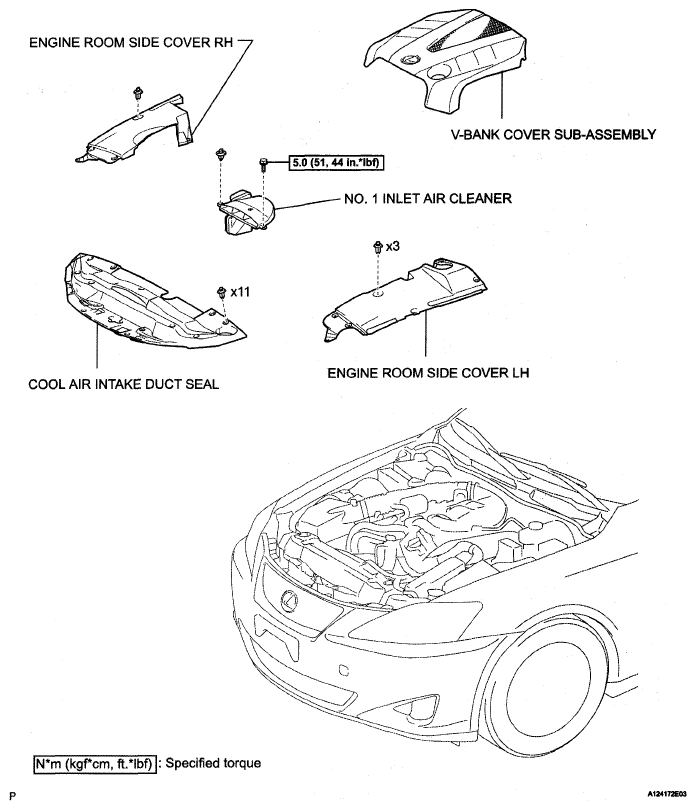

Fig 1: Identifying Crankshaft Position Sensor Replacement Components With Torque Specification (1 Of 2)
G05316231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

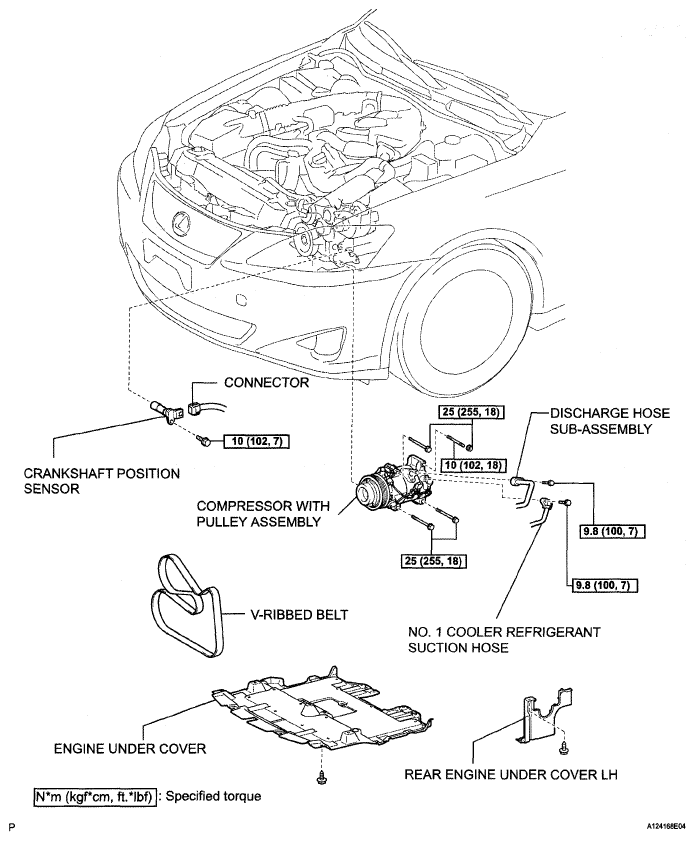

Fig 2: Crankshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
G05316232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
