Inspection Procedure

  1. INSPECT ECM (+B, +B1 VOLTAGE)
    1. Turn the engine switch on (IG).
    2. Measure the voltage according to the value(s) in the table below.

    Standard voltage

    TESTER CONNECTION SPECIFIED CONDITION CHART

    Tester Connection Specified Condition
    +B (A5-6) - E1 (E4-7) 9 to 14 V
    +B1 (A5-5) - E1 (E4-7) 9 to 14 V

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

    NG: Go to next step.

  2. CHECK HARNESS AND CONNECTOR (ECM - BODY GROUND)
    1. Disconnect the E4 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      E1 (E4-7) - Body ground Below 1 Ω
    3. Reconnect the ECM connector.
    4. Fig 1: Identifying Terminals Of ECM Connector
      G05316160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step.

  3. INSPECT ECM (IGSW VOLTAGE)
    1. Turn the engine switch on (IG).
    2. Measure the voltage according to the value(s) in the table below.

    Standard voltage

    TESTER CONNECTION SPECIFIED CONDITION CHART

    Tester Connection Specified Condition
    IGSW (A5-17) - E1 (E4-7) 9 to 14 V
    Fig 2: Identifying Terminals Of E4 ECM Connector
    G05822788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to step   6

    NG: Go to next step.

  4. CHECK FUSE (IGN FUSE)
    1. Remove the IGN fuse from the cowl side junction block RH.
    2. Measure the resistance of the IGN fuse.

      Standard resistance:

      Below 1 Ω

    3. Reinstall the IGN fuse.
    4. Fig 3: Identifying Terminals Of ECM Connector
      G05285288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE IGN FUSE

    OK: Go to next step.

  5. INSPECT IGNITION RELAY NO. 2
    1. Remove the IG2 relay from the engine room R/B No. 2.
    2. Measure the resistance according to the value(s) in the table below.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION CHART

    Tester Connection Specified Condition
    3 - 5 10 kΩ or higher
    3 - 5 Below 1 Ω (when battery voltage applied to terminals 1 and 2)
    Fig 4: Identifying Terminals Of A/F Relay
    G04967794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE IGNITION RELAY NO. 2

    OK:  GO TO

  6. INSPECT ECM (MREL VOLTAGE)
    1. Turn the engine switch on (IG).
    2. Measure the voltage according to the value(s) in the table below.

    Standard voltage

    TESTER CONNECTION SPECIFIED CONDITION CHART

    Tester Connection Specified Condition
    MREL (A5-13) - E1 (E4-7) 9 to 14 V
    Fig 5: Identifying Terminals Of ECM Connector
    G05822792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE ECM

  7. CHECK FUSE (EFI FUSE)
    1. Remove the EFI fuse from the engine room R/B No.2.
    2. Measure the resistance of the EFI fuse.

      Standard resistance:

      Below 1 Ω

    3. Reinstall the EFI fuse.
      Fig 6: Identifying EFI Fuse
      G05822793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPLACE EFI FUSE

      OK: Go to next step.

  8. INSPECT INTEGRATION RELAY (EFI MAIN RELAY)
    1. Remove the integration relay from the engine room J/B No. 2.
    2. Measure the resistance according to the value(s) in the table below.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION CHART

    Tester Connection Specified Condition
    2A-5 - 2A-8 10 kΩ or higher
    Below 1 Ω
    (when battery voltage applied to terminals 2A-6 and 2A-7)

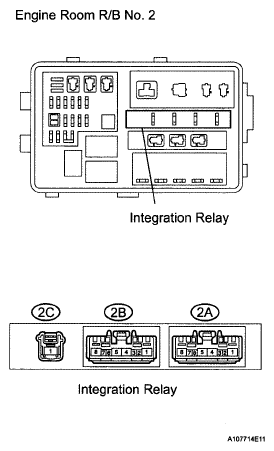

    Fig 7: Identifying Integration Relay
    G05822794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE INTEGRATION RELAY

    OK: Go to next step.

  9. CHECK HARNESS AND CONNECTOR (INTEGRATION RELAY- ECM, INTEGRATION RELAY - BODY GROUND)
    1. Check the harness and the connectors between the integration relay and the ECM.
      1. Remove the integration relay from the engine room J/B and R/B No. 2.
      2. Disconnect the A5 ECM connector.
      3. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      2A-6-MREL (A5-13) Below 1 Ω

      Standard resistance (Check for short)

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      2A-6 or MREL (A5-13) - Body ground 10 kΩ or higher
    2. Check the harness and the connectors between the integration relay and body ground.
      1. Remove the integration relay from the engine room J/B and R/B No. 2.
      2. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open)

    TESTER CONNECTION SPECIFIED CONDITION CHART

    Tester Connection Specified Condition
    2A-7 - Body ground Below 1 Ω
    Fig 8: Identifying Terminals Of ECM Connector
    G05316167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: CHECK AND REPAIR HARNESS AND CONNECTOR (TERMINAL +B OF ECM - BATTERY POSITIVE TERMINAL)
