Engine Control System (2GR-FSE) - System And Component Testing, On-Vehicle Inspection, Removal, Inspection & Installation: ECM: Components

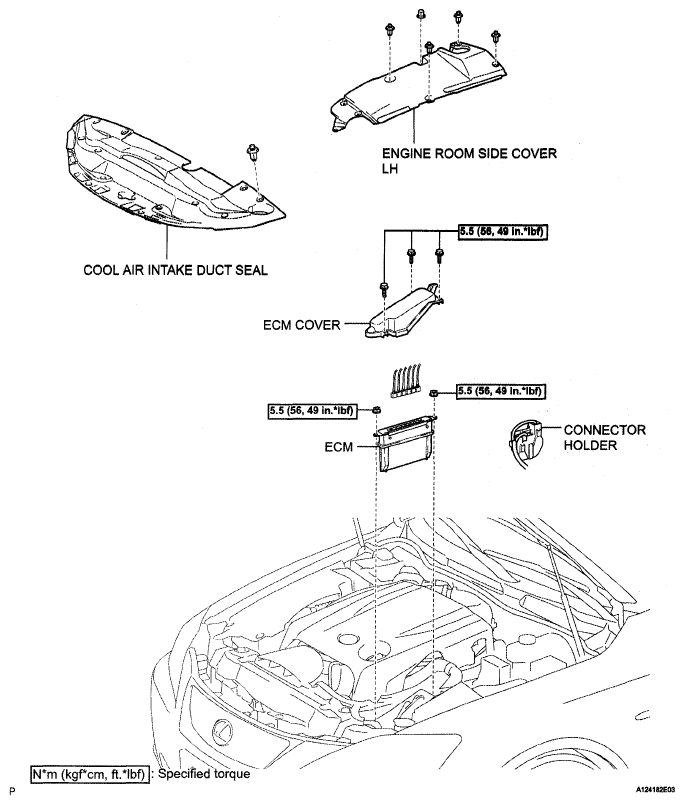

Fig 1: ECM Replacement Components With Torque Specifications
G05316277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
