Monitor Result
Refer to CHECKING MONITOR STATUS .
The test value and test limit information are described as shown in the following table. This information is included under MONITOR RESULT in the emissions-related DTC sections:
- Monitor Identification Data (MID) is assigned to each emissions-related component.
- Test Identification Data (TID) is assigned to each test value.
- Scaling is used to calculate the test value indicated on generic OBD II scan tools.

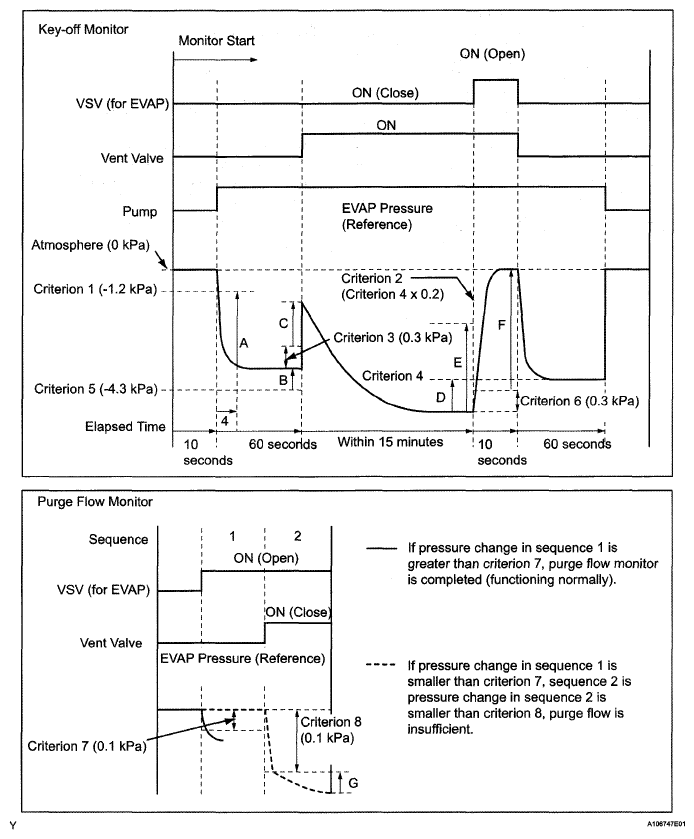

EVAP
EVAP
| Monitor ID | Test ID | Scaling | Unit | Description | ||
|---|---|---|---|---|---|---|
| $3D | $C9 | Multiply by 0.001 | kPa | Test value for small leak (P0456) | ||
| $3D | $CA | Multiply by 0.001 | kPa | Test value for gross leak (P0455) | ||
| $3D | $CB | Multiply by 0.001 | kPa | Test value for leak detection pump OFF stuck (P2401) | ||
| $3D | $CD | Multiply by 0.001 | kPa | Test value for leak detection pump ON stuck (P2402) | ||
| $3D | $CE | Multiply by 0.001 | kPa | Test value for vent valve OFF stuck (P2420) | ||
| $3D | $CF | Multiply by 0.001 | kPa | Test value for vent valve ON stuck (P2419) | ||
| $3D | $D0 | Multiply by 0.001 | kPa | Test value for reference orifice low flow (P043E) | ||
| $3D | $D1 | Multiply by 0.001 | kPa | Test value for reference orifice high flow (P043F) | ||
| $3D | $D4 | Multiply by 0.001 | kPa | Test value for purge VSV close stuck (P0441) | ||
| $3D | $D5 | Multiply by 0.001 | kPa | Test value for purge VSV open stuck (P0441) | ||
| $3D | $D7 | Multiply by 0.001 | kPa | Test value for purge flow insufficient (P0441) | ||
|
||||||
