Engine Coolant Temperature Sensor: Components

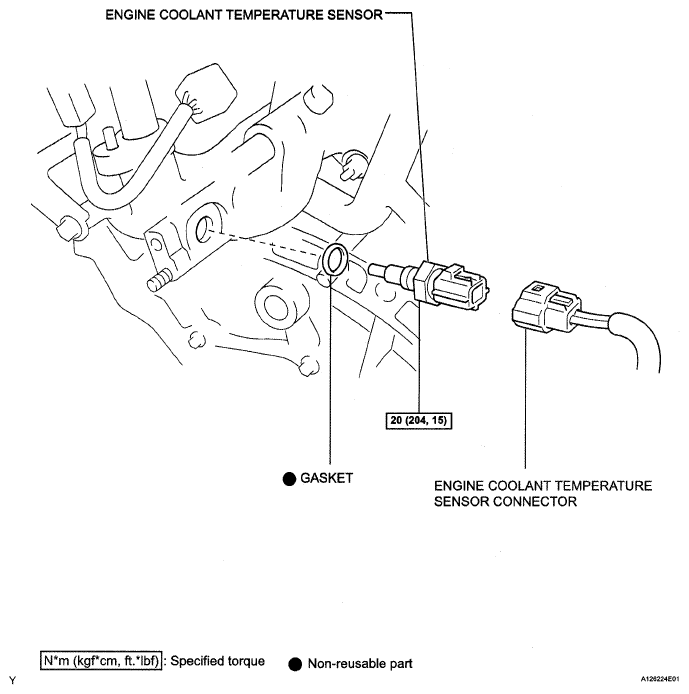

Fig 1: Identifying Engine Coolant Temperature Sensor Replacement Components With Torque Specification (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

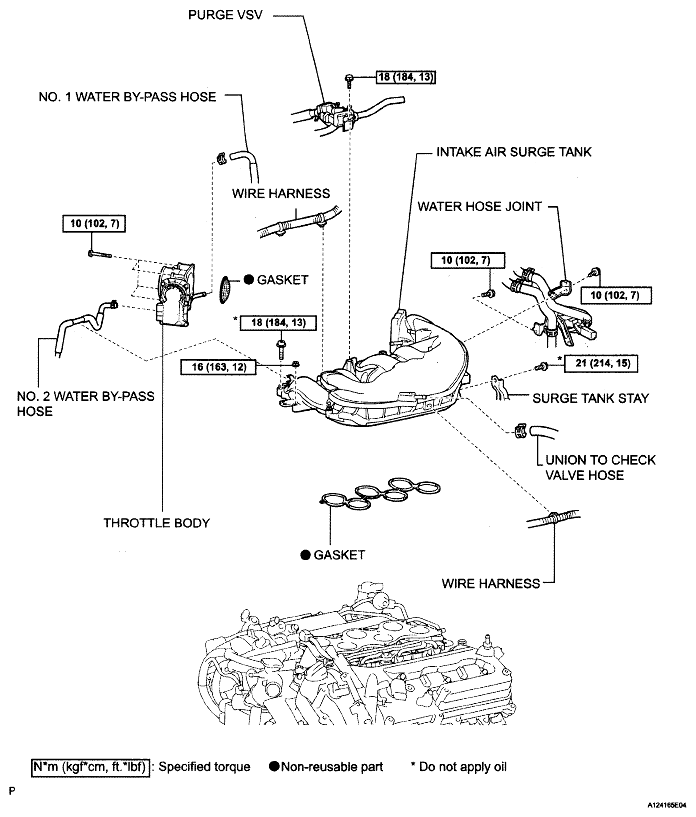

Fig 2: Identifying Engine Coolant Temperature Sensor Replacement Components With Torque Specification (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

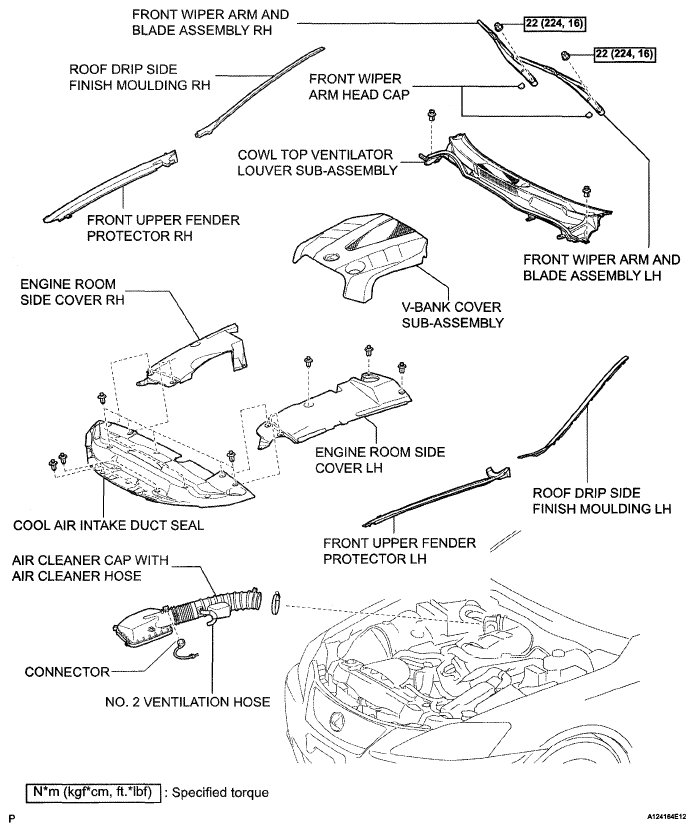

Fig 3: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
