Inspection Procedure

1. Check if there is pressure in the fuel inlet hose.

   HINT:

   If there is fuel pressure, you will hear the sound of fuel flowing.

   OK: Go to step   12

   NG: Go to next step.

1. Connect Techstream to the DLC3.
2. Turn the engine switch on (IG) and turn Techstream on.
3. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the fuel Pump / Speed.
4. Check the operation of the relay while operating it using Techstream.

   OK:

   Operating noise can be heard from the relay.

   OK: Go to step   8

   NG: Go to next step.

1. Check the ECM power source circuit (See ECM POWER SOURCE CIRCUIT ).

   Standard voltage:

   9 to 14 V

   NG: REPAIR OR REPLACE POWER SOURCE CIRCUIT

   OK: Go to next step.

1. Remove the F/PMP fuse from the engine room R/B No. 2.
2. Measure the resistance of the F/PMP fuse.

   Standard resistance:

   Below 1 Ω

   Fig 1: Identifying F/PMP Fuse

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPLACE F/PMP FUSE

OK: Go to next step.

1. Remove the integration relay from the engine room J/B No. 2.
2. Measure the resistance according to the value(s) in the table below.

Standard resistance

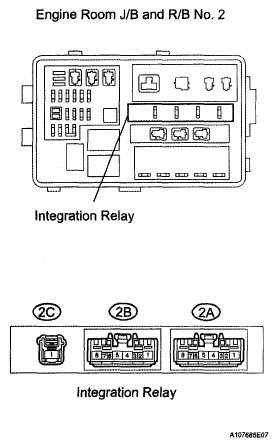

Fig 2: Identifying Integration Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE INTEGRATION RELAY

OK: Go to next step.

1. Remove the integration relay from the engine room J/B No. 2.
2. Measure the resistance according to the value(s) in the table below.

Standard resistance

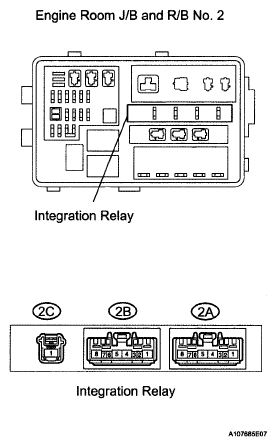

Fig 3: Identifying Integration Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE INTEGRATION RELAY

OK: Go to next step.

1. Turn the engine switch on (IG).
2. Measure the voltage according to the value(s) in the table below.

Standard voltage

Fig 4: Identifying Terminals Of ECM Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPLACE ECM

NG: CHECK AND REPAIR HARNESS AND CONNECTOR (ECM - C/OPN RELAY)

1. Remove the F/PMP relay from the engine room R/B No. 2.
2. Measure the resistance according to the value(s) in the table below.

Standard resistance

Fig 5: Identifying Terminals Of F/PMP Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE F/PMP RELAY

1. Inspect fuel pump resistance.
   1. Measure the resistance between terminals 4 and 5.

   Standard resistance:

   0.2 to 3.0 Ω at 20°C (68°F)

2. Inspect fuel pump operation.
   1. Apply battery voltage to both terminals. Check that the pump operates.

NG: REPLACE FUEL PUMP

OK: Go to next step.

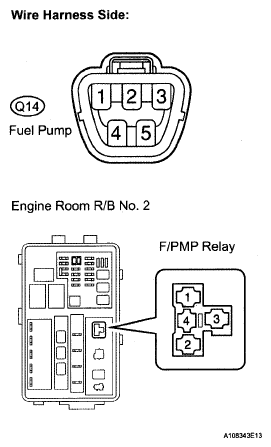

1. Check the harness and the connectors between the fuel pump and the F/PMP relay.
   1. Disconnect the fuel pump connector.
   2. Remove the F/PMP relay from the engine room R/B No. 2.
   3. Measure the resistance according to the value(s) in the table below.

   Standard resistance (Check for open)

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   Fuel pump (Q14-4) - F/PMP relay (4)	Below 1 Ω

   Standard resistance (Check for short)

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   Fuel pump (Q14-4) or F/PMP (4) - Body ground	10 kΩ or higher

2. Check the harness and the connectors between the fuel pump and body ground.
   1. Disconnect the fuel pump connector.
   2. Measure the resistance according to the value(s) in the table below.

Standard resistance (Check for open)

Fig 7: Identifying Terminals Of Q14 Fuel Pump

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step.

1. Remove the integration relay from the engine room J/B and R/B No. 2.
2. Remove the F/PMP relay from the engine room R/B No. 2.
3. Measure the resistance according to the value(s) in the table below.

Standard resistance (Check for open)

Standard resistance (Check for short)

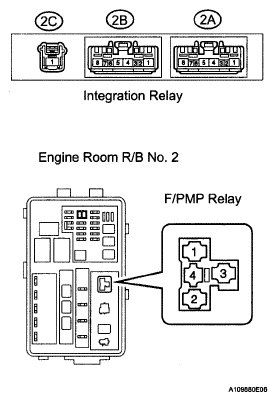

Fig 8: Identifying Terminals Of Integration Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPAIR OR REPLACE INTEGRATION RELAY

1. Remove the F/PMP relay from the engine room R/B No. 2.
2. Measure the resistance according to the value(s) in the table below.

Standard resistance

Fig 9: Identifying Terminals Of F/PMP Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE F/PMP RELAY

OK: Go to next step.

1. Measure the resistance of the fuel pump resistor.
   Fig 10: Measuring Resistance Of Fuel Pump Resistor Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance:

   0.30 to 0.34 Ω at 20°C (68°F)

   NG: REPLACE FUEL PUMP RESISTER

1. Check the harness and the connectors between the F/ PMP relay and the fuel pump resistor.
   1. Remove the F/PMP relay from the engine room R/B No. 2.
   2. Disconnect the fuel pump resistor connector.
   3. Measure the resistance according to the value(s) in the table below.

Standard resistance (Check for open)

Standard resistance (Check for short)

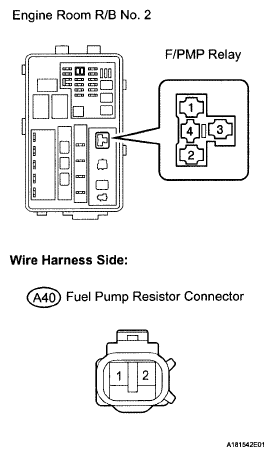

Fig 11: Identifying Terminals Of A40 Fuel Pump Resistor Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ok: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
