Parts Location

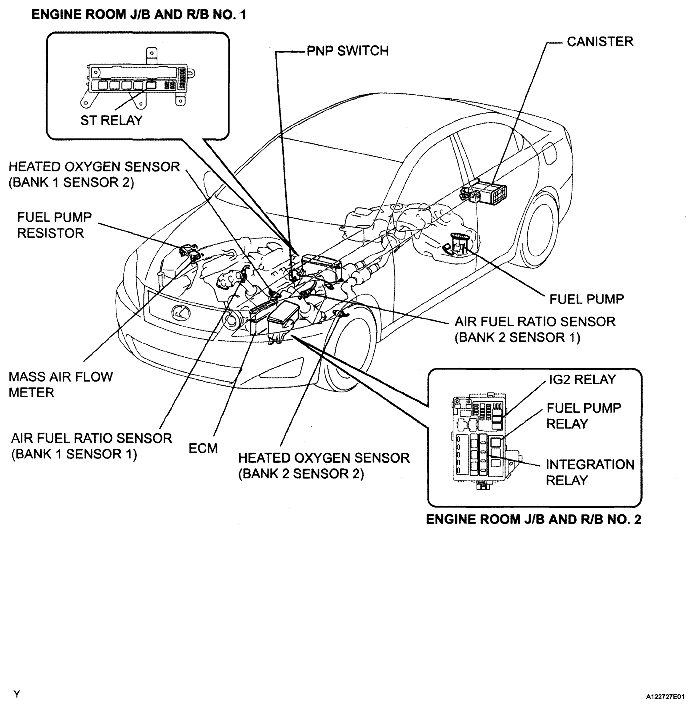

Fig 1: Identifying Engine Control System (2GR-FSE) Components Location (1 Of 3)
G05315867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

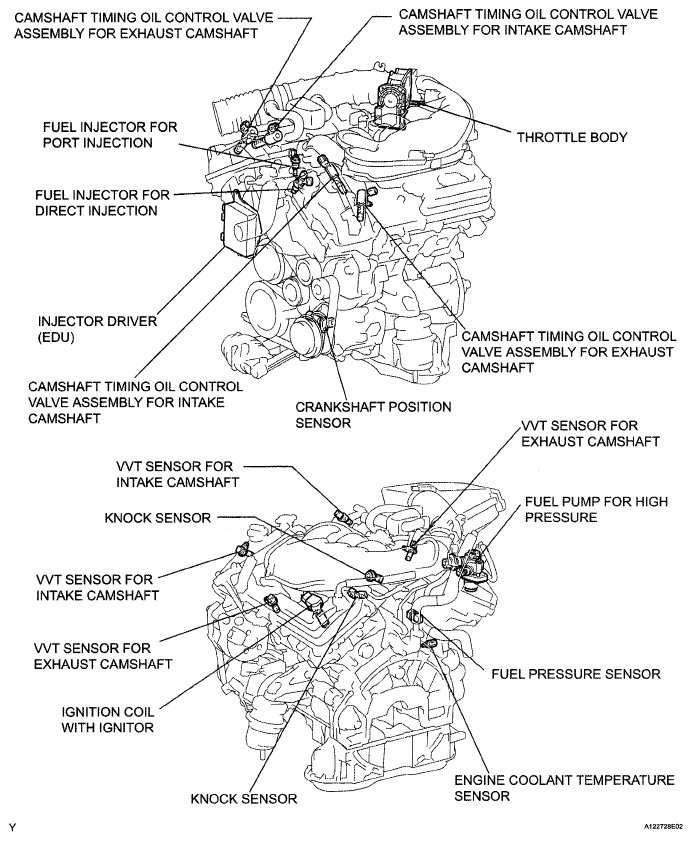

Fig 2: Identifying Engine Control System (2GR-FSE) Components Location (2 Of 3)
G05315868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

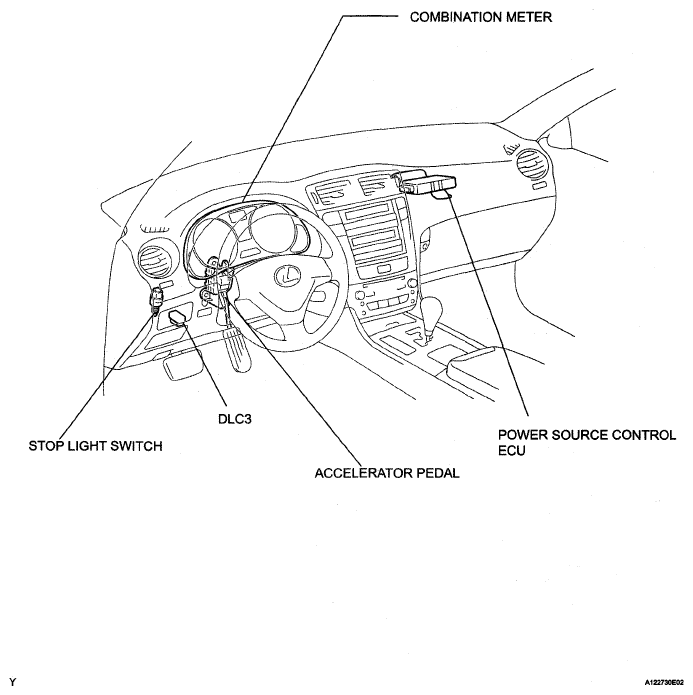

Fig 3: Identifying Engine Control System (2GR-FSE) Components Location (3 Of 3)
G05315869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
