Operation Check
WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK SYSTEM NORMAL CONDITION
- If a symptom is any of the following, it is not a malfunctionDIAGNOSTIC TROUBLE CODE
Symptom Answer A longer route than expected is chosen Depending on the road conditions, the navigation ECU may determine that a longer route is quicker Even when distance priority is high, the shortest route is not shown Some routes may not be advised due to safety concerns When the vehicle is put into motion immediately after the engine starts, the navigation system deviates from the actual position If the vehicle starts before the navigation system activates, the system may not react When running on certain types of roads, especially new roads, the vehicle position deviates from the actual position When the vehicle is driving on new roads not available on the map disc, the system attempts to match it to another nearby road, causing the position mark to deviate - The following symptoms are not a malfunction, but are caused by errors inherent in the GPS, gyro sensor, speed sensor, or navigation ECU
- The current position mark may be displayed on a nearby parallel road
- Immediately after a fork in the road, the current vehicle position mark may be displayed on the wrong road
- When the vehicle turns right or left at an intersection, the current vehicle position mark may be displayed on a nearby parallel road
- When the vehicle is carried, such as on a ferry, and the vehicle itself is not running, the current vehicle position mark may be displayed in the position where the vehicle was until a measurement can be performed by GPS.
- When the vehicle is driven on a steep hill, the current vehicle position mark may deviate from the correct position.
- When the vehicle makes a continuous turn of 360°, 720°, 1080°, etc., the current vehicle position mark may deviate from the correct position
- When the vehicle moves erratically, such as constant lane changes, the current vehicle position mark may deviate from the correct position
- When the engine switch is turned on (ACC) or on (IG) on a turntable while parking, the current vehicle position mark may not indicate the correct direction The same will occur when the vehicle starts to move
- When the vehicle is driven on a snowy road or a mountain path with tire chains installed or using a spare tire, the current vehicle position mark may deviate from the correct position
- When a tire is changed, the current vehicle position mark may deviate from the correct position
HINT
- A change in tire diameter may cause a speed sensor error
- Performing the "tire change" in calibration mode will allow the system to correct the current vehicle position faster
- If a symptom is any of the following, it is not a malfunction
- CHECK DISPLAY CHECK
HINT
- This mode checks the color display on the multi-display
- Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be exactly the same as on the actual vehicle screen
- Enter diagnostic mode (See DTC CHECK / CLEAR )
- Select "Display Check" from the "Diagnosis MENU" screen
- Color Bar Check
- Select "Color Bar Check" from the "Display Check" screen.
- Select a color bar from the "Color Bar Check Mode" screen.
- Check the display color.
HINT

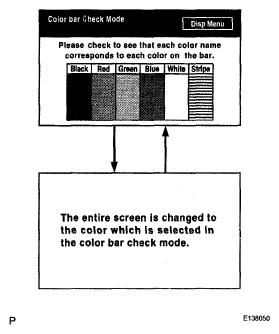

- The entire screen turns to the color or stripe selected.
- Touch the display to return to the "Color Bar Check Mode" screen
- Touch Switch Check
- Select "Touch Switch Check" from the "Display Check" screen
- Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.
HINT.
A "+" mark is displayed where the display is touched
- Panel Switch Check
- Select "Panel Switch Check" from the "Display Check" screen.
- Operate each switch and check that the switch name and condition are correctly displayed.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISPLAY CONTENT REFERENCEDisplay Content *1 Pushed switch name - Name of the pressed switch is displayed
- If more than one switch is pressed, "MULTIPLE" is displayed
*2 Rotary switch name Name of the rotary switch is displayed *3 Rotary switch direction Direction of the rotary switch is displayed
- Vehicle Signal Check
- Select "Vehicle Signal Check" from the "Display Check" screen.
- When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions
HINT.
- Only conditions having inputs are displayed
- This screen is updated once per second when input signals to the vehicle are changed
- For details of this function, refer to Diagnosis Display Detailed Description in the System Description (See SYSTEM DESCRIPTION ).
- Mic&Voice Recognition Check
- Select "Mic&Voice Recognition Check" on the "Display Check" screen to display the "MICROPHONE & VOICE RECOGNITION CHECK" screen
- When voice is input into the microphone, check that the microphone input level meter changes according to the input voice
- Push the recording switch and perform voice recording
- Check that the recording indicator remains on while recording and that the recorded voice is played normally
HINT.
For details of this function, refer to Diagnosis Display Detailed Description in the System Description (See SYSTEM DESCRIPTION )
- CHECK NAVIGATION CHECK
HINT:
- This mode displays GPS satellite information
- Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be exactly the same as on the actual vehicle screen.
- Enter diagnostic mode (See DTC CHECK / CLEAR )
- Navigation Check
- Select "Navigation Check" from the "Diagnosis MENU" screen
- GPS Information
- Select "GPS Information" from the "Navigation Check" screen.
- When GPS information is displayed, check the GPS conditions
HINT.
- This screen is updated once per second when input signals to the vehicle are changed.
- For details of this function, refer to Diagnosis Display Detailed Description in the System Description (See SYSTEM DESCRIPTION ).
- Vehicle Sensors
- Select "Vehicle Sensors" from the "Navigation Check" screen.
- Check all the signals and sensors when vehicle signal information is displayed.
HINT.
- This screen is updated once per second when input signals to the vehicle are changed
- This screen displays vehicle signals input to the navigation ECU
- For details of this function, refer to Diagnosis Display Detailed Description in the System Description (See SYSTEM DESCRIPTION )
- Color Bar Check
- Select "Color Bar Check" from the "Navigation Check" screen.
- Check each color of the color bar when the "NAVI Color Bar Check" screen is displayed
HINT
- Colors will not be displayed full-screen as in "Display Check Mode"
- This screen displays the navigation ECU display color.
- Memory Copy/Paste
HINT
This function cannot be used
- Parts Information
- Select "Parts Information" from the "Navigation Check" screen
- Check the navigation and disc information when the "Parts Information" screen is displayed.
Screen Description
SCREEN DESCRIPTIONDisplay Content *1 Navigation Manufacturer Navigation ECU manufacturer is displayed *2 Navigation Version Navigation ECU version is displayed *3 Disc Manufacturer Map disc manufacturer is displayed *4 Disc Version Map disc version is displayed
- Mic & Voice Recognition Check
- Select "Mic & Voice Recognition Check" on the "Navigation Check" screen to display the "MICROPHONE & VOICE RECOGNITION CHECK" screen
- When voice is input into the microphone, check that the microphone input level meter changes according to the input voice.
- Push the recording switch and perform voice recording
- Check that the recording indicator remains on while recording and that the recorded voice is played normally
HINT
- For details of this function, refer to Diagnosis Display Detailed Description in the System Description (See SYSTEM DESCRIPTION ).
- This function is controlled by the built-in navigation ECU.
- DVD Player Information
- Select "DVD Player Information" from the "Navigation Check" screen
- Check for DTCs
HINT
- This is the DVD player check function in the navigation ECU
- For details of this function, refer to Diagnosis Display Detailed Description in the System Description (See SYSTEM DESCRIPTION )
- CHECK "BLUETOOTH" TEL CHECK
HINT
Illustrations may differ from the actual vehicle screen depending on the device settings and options Therefore, some detailed areas may not be exactly the same as on the actual vehicle screen
- Enter diagnostic mode (See DTC CHECK / CLEAR )
- Select ""Bluetooth" TEL Check" from the "Diagnosis MENU" screen
- "Bluetooth" Check
- Select ""Bluetooth" Check" from the ""Bluetooth" Handsfree Check Menu" screen
- Select "Serial Communication Log" from the ""Bluetooth" Check Menu" screen.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- The communication log data in the multi-display are displayed on this screen.
HINT.
The displayed data can be used as a reference.
- The communication log data in the multi-display are displayed on this screen.
- Select "Software Version" from the ""Bluetooth" Check Menu" screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Check the software version of the "Bluetooth" module
Screen Description
SCREEN DESCRIPTIONDisplay Content *1 General Version - Overall software version of "Bluetooth" module
- If any of the API version, upper stack version, and low stack version is updated, the general version is upgraded
*2 API Version API software version is displayed *3 Upper Stack Version Upper Stack version is displayed *4 Lower Stack Version Lower Stack version is displayed HINT
This function is controlled by the multi-display
- Check the software version of the "Bluetooth" module
- Handsfree Voice Quality Set
- Select "Handsfree Voice Quality Set" from the ""Bluetooth" Handsfree Check Menu" screen
- Check the handsfree voice level
Screen Description
SCREEN DESCRIPTIONDisplay Content *1 Received voice level adjustment Setting possible for the voice level received from "Bluetooth" compatible phones *2 Sent voice level adjustment Setting possible for the voice level sent to "Bluetooth" compatible phones HINT
This function is controlled by the multi-display
NOTE: "Voice Quality Type" should not be changed.
