Transmission Wire: Removal

DRAIN AUTOMATIC TRANSMISSION FLUID
1. Remove the drain plug and gasket, and drain the ATF.
2. Install a new gasket and the drain plug.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
NOTE: Some fluid will remain in the oil pan.
1. Remove the 20 bolts, oil pan, and gasket.

  Fig 1: Locating Automatic Transmission Oil Pan Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 magnets from the oil pan.
3. Examine particles in the pan.
  1. Collect any steel chips with the removed magnets.
    Carefully look for the foreign objects and particles in the pan and on the magnets to guess the type of wear which might be found in the transmission.

    Steel (magnetic)... bearing, gear, and clutch plate wear

    Brass (non-magnetic)... bushing wear

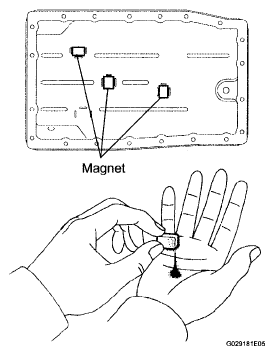

    Fig 2: Identifying Oil Pan Magnets
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VALVE BODY OIL STRAINER ASSEMBLY
1. Remove the 4 bolts and oil strainer.
  NOTE: Be careful as some fluid will come out of the oil strainer.

  Fig 3: Locating Oil Strainer Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O-ring from the oil strainer.

  Fig 4: Identifying Oil Strainer O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT TRANSMISSION WIRE
1. Remove the bolt and separate the ATF temperature sensor.

  Fig 5: Locating ATF Temperature Sensor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and disconnect the 2 clamps.

  Fig 6: Locating Clamps And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the 9 connectors from the solenoid valves.
REMOVE TRANSMISSION WIRE
1. Disconnect the transmission wire connector.

  Fig 7: Locating Solenoid Valves Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and pull out the transmission wire.

  Fig 8: Locating Transmission Wire Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the O-ring from the transmission wire.

  Fig 9: Identifying Transmission Wire O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
