Cooling System (Mechanical): Cooling: Radiator: Components

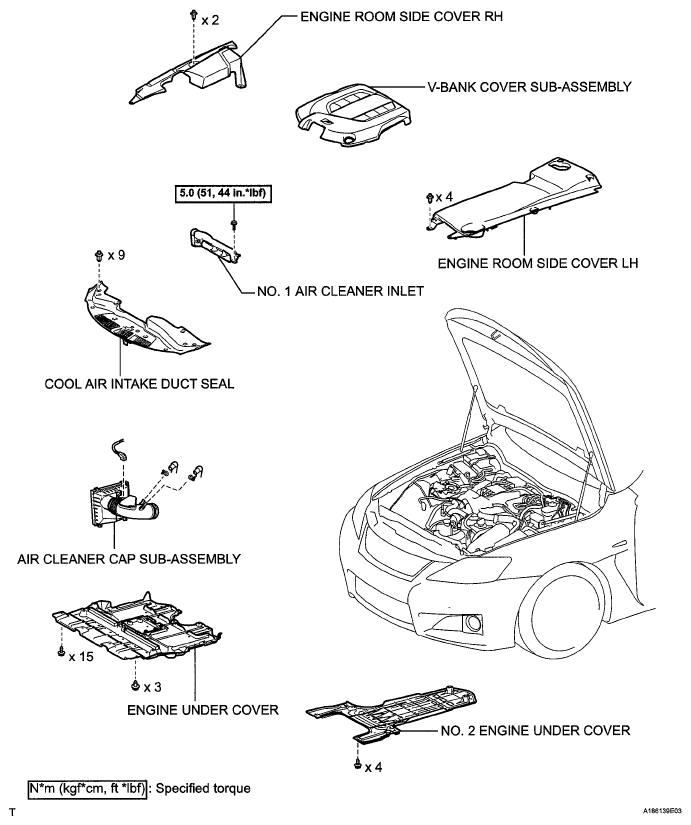

Fig 1: Identifying Radiator Replacement Components With Torque Specification (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

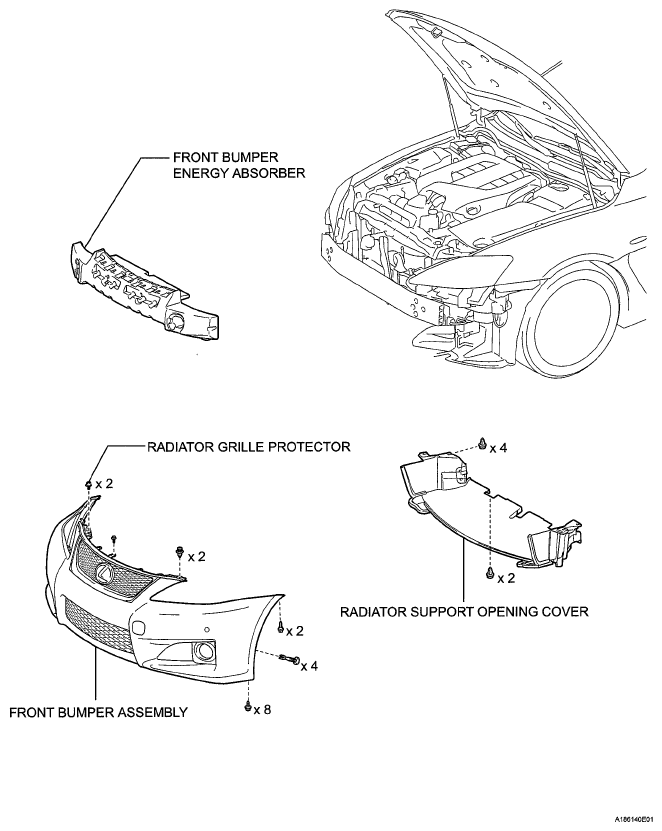

Fig 2: Identifying Radiator Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

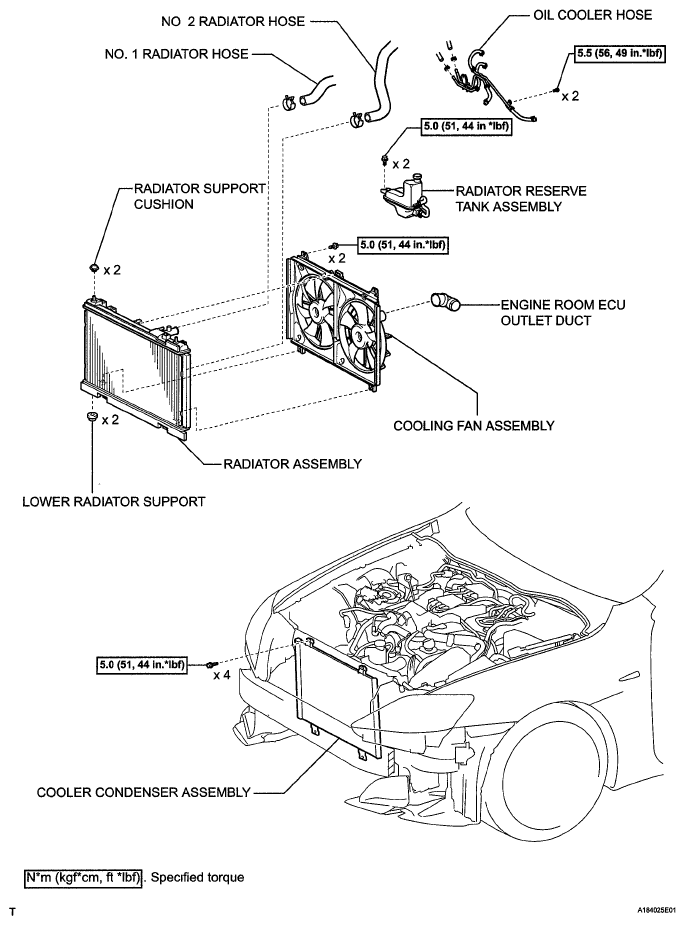

Fig 3: Radiator Replacement Components With Torque Specifications (3 Of 4)

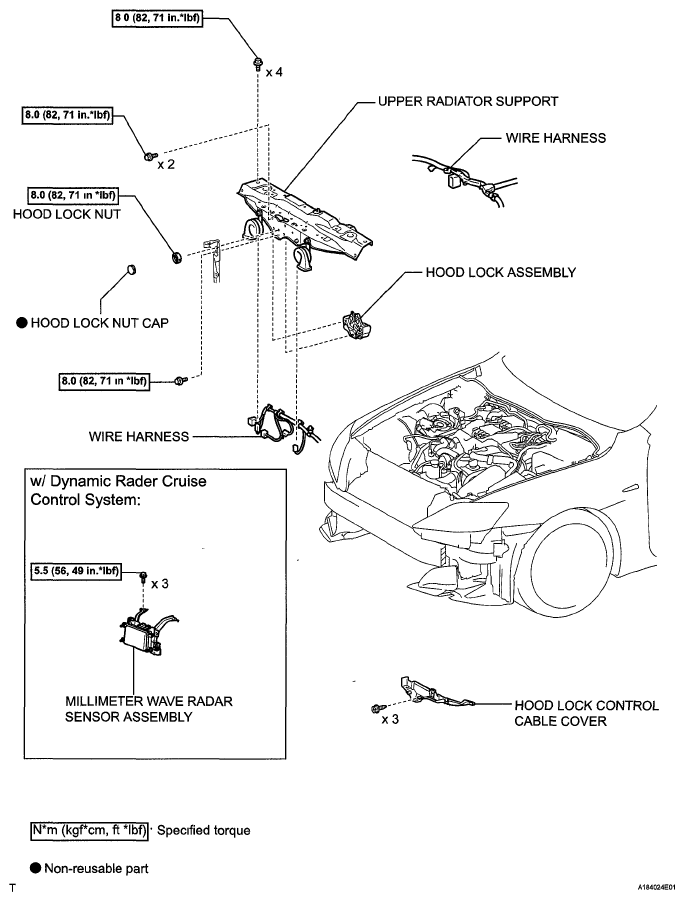

Fig 4: Radiator Replacement Components With Torque Specifications (4 Of 4)
