Steering Wheel Assembly: Components

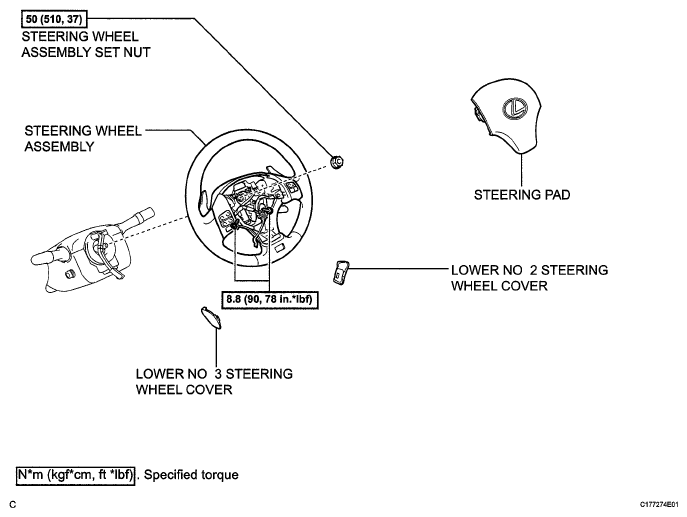

Fig 1: Steering Wheel Assembly Replacement Components (1 Of 5) with Torque Specifications
G05753021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

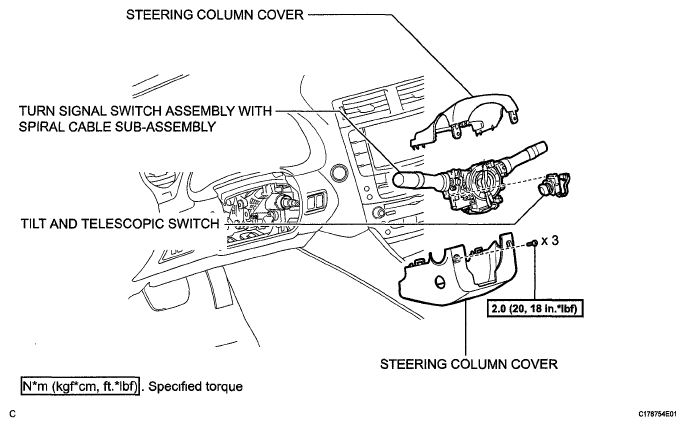

Fig 2: Steering Wheel Assembly Replacement Components (2 Of 5) with Torque Specifications
G05753022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

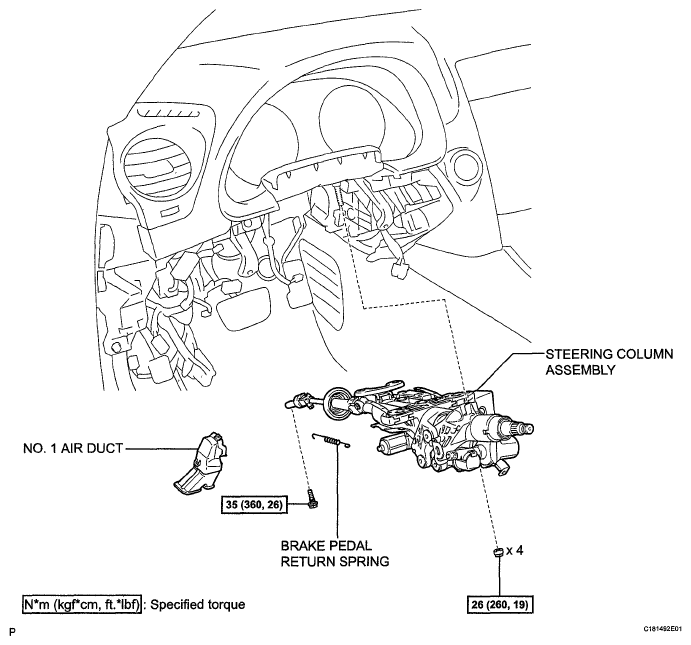

Fig 3: Steering Wheel Assembly Replacement Components (3 Of 5) with Torque Specifications
G05753023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

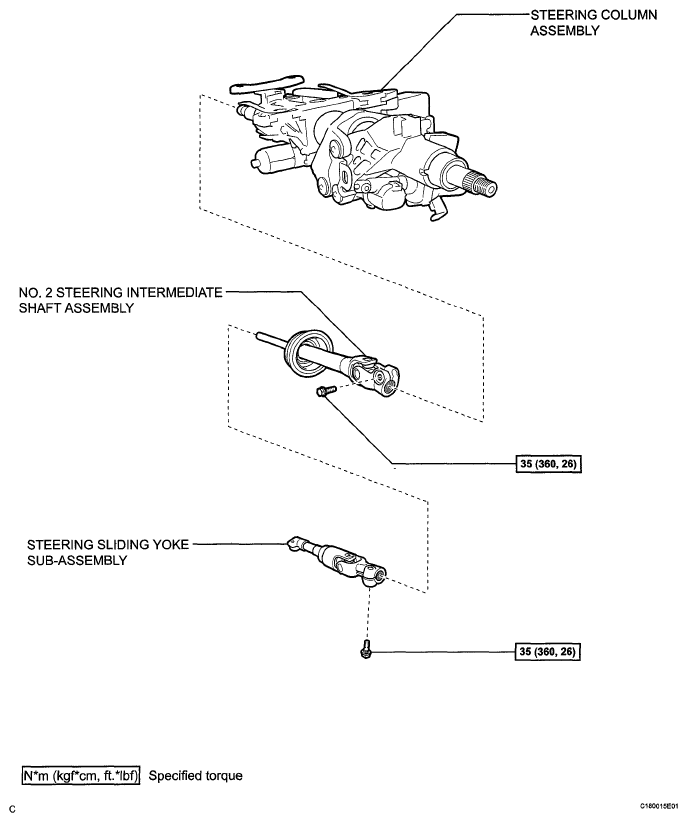

Fig 4: Steering Wheel Assembly Replacement Components (4 Of 5) with Torque Specifications
G05753024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

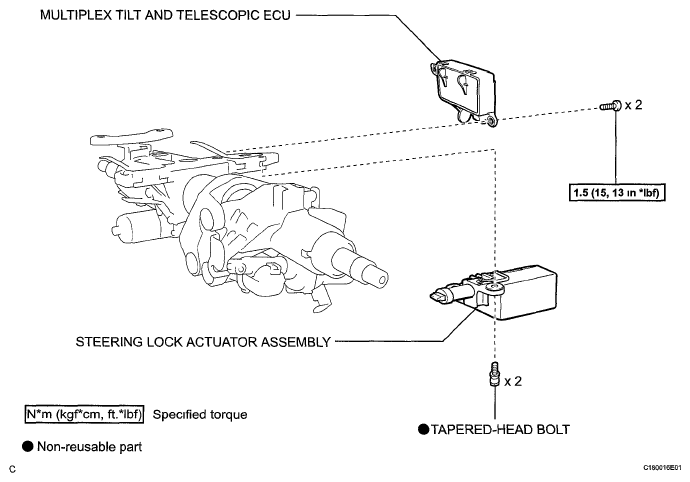

Fig 5: Steering Wheel Assembly Replacement Components (5 Of 5) with Torque Specifications
G05753025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
